A68(W) IP Phone User Manual

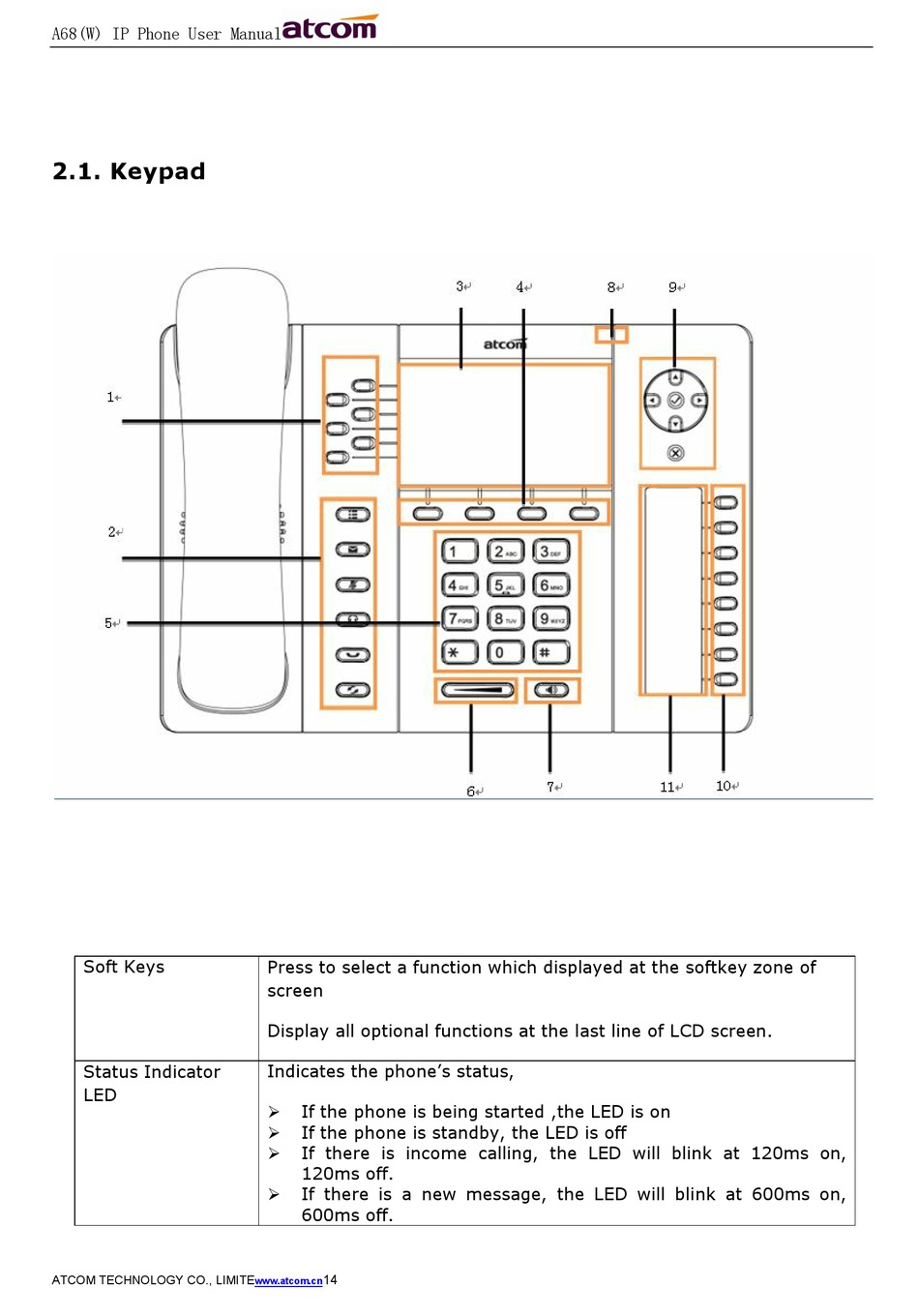

2.1. Keypad

Soft Keys
Status Indicator
LED
ATCOM TECHNOLOGY CO., LIMITE
Press to select a function which displayed at the softkey zone of
screen
Display all optional functions at the last line of LCD screen.
Indicates the phone's status,
 If the phone is being started ,the LED is on
 If the phone is standby, the LED is off
 If there is income calling, the LED will blink at 120ms on,
120ms off.
 If there is a new message, the LED will blink at 600ms on,
600ms off.
