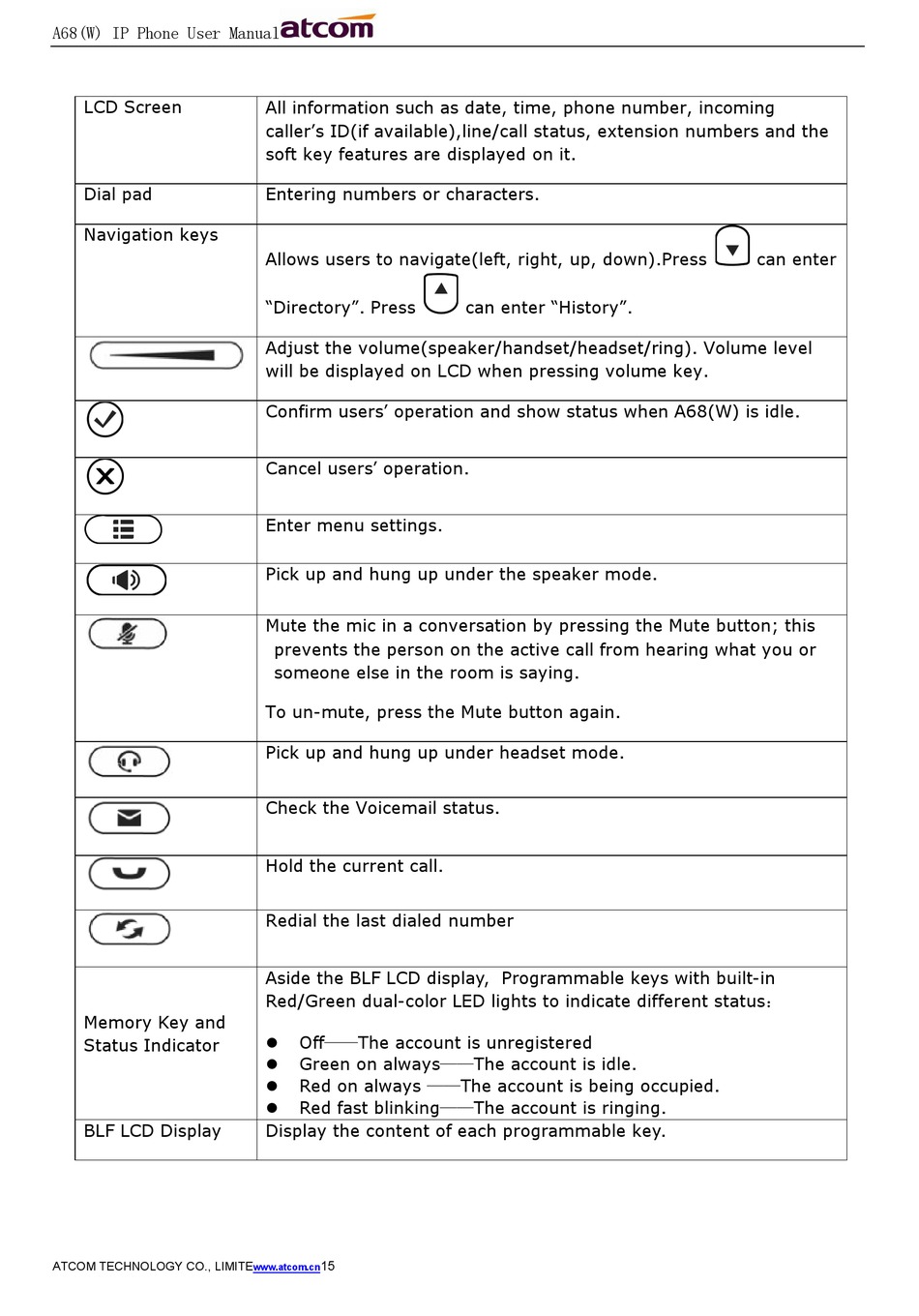

ATCOM A68 User Manual page 15

A68(W) IP Phone User Manual
LCD Screen
Dial pad
Navigation keys
Memory Key and
Status Indicator
BLF LCD Display
ATCOM TECHNOLOGY CO., LIMITE
All information such as date, time, phone number, incoming
caller's ID(if available),line/call status, extension numbers and the
soft key features are displayed on it.
Entering numbers or characters.
Allows users to navigate(left, right, up, down).Press
"Directory". Press
Adjust the volume(speaker/handset/headset/ring). Volume level
will be displayed on LCD when pressing volume key.
Confirm users' operation and show status when A68(W) is idle.
Cancel users' operation.
Enter menu settings.
Pick up and hung up under the speaker mode.
Mute the mic in a conversation by pressing the Mute button; this
prevents the person on the active call from hearing what you or
someone else in the room is saying.
To un-mute, press the Mute button again.
Pick up and hung up under headset mode.
Check the Voicemail status.
Hold the current call.
Redial the last dialed number
Aside the BLF LCD display, Programmable keys with built-in
Red/Green dual-color LED lights to indicate different status：
 Off——The account is unregistered
 Green on always——The account is idle.
Red on always ——The account is being occupied.

 Red fast blinking——The account is ringing.
Display the content of each programmable key.
15
www.atcom.cn
can enter "History".
can enter
