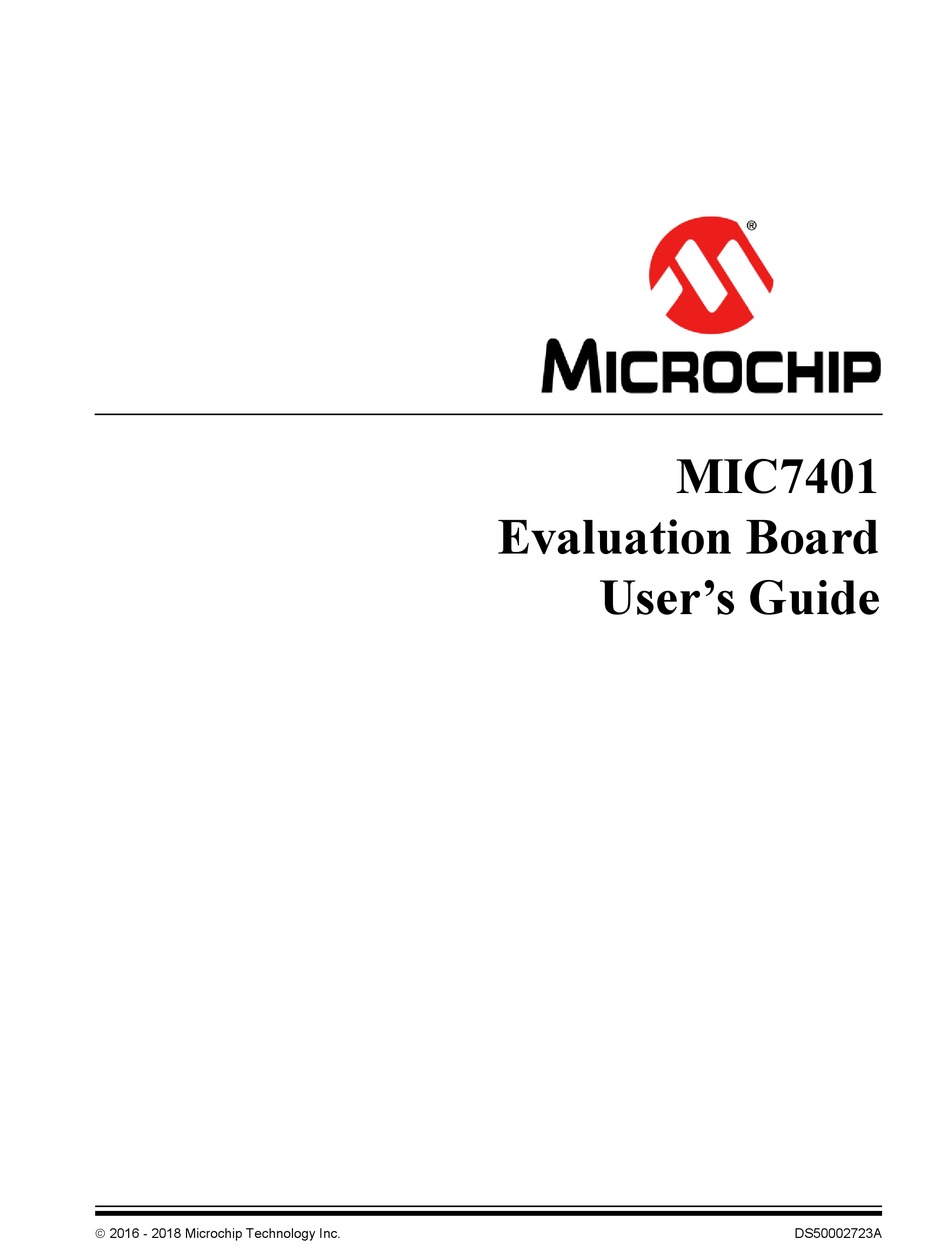

MIC7401

Evaluation Board

User's Guide
 2016 - 2018 Microchip Technology Inc.
DS50002723A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIC7401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Microchip Technology MIC7401

  • Page 1: Evaluation Board

    MIC7401 Evaluation Board User’s Guide  2016 - 2018 Microchip Technology Inc. DS50002723A...
  • Page 2 Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design Germany II GmbH & Co. KG, a subsidiary of Microchip Technology and manufacture of development systems is ISO 9001:2000 certified. Inc., in other countries.
  • Page 3: Table Of Contents

    1.2 MIC7401 Device Short Overview ..............7 MIC7401 Typical Application................. 8 1.3 The MIC7401 Evaluation Board ..............8 1.4 What the MIC7401 Evaluation Board Kit Includes ......... 9 Chapter 2. Installation and Operation 2.1 Introduction ....................11 2.2 Getting Started ..................... 12 2.3 MIC7401 Evaluation Board Connectors ............
  • Page 4 A.8 Board - Bottom Copper ................31 A.9 Board - Bottom Copper and Silk ..............32 A.10 Board - Bottom Silk ..................32 Appendix B. Bill of Materials (BOM) ................33 Worldwide Sales and Service ..................35  2016 - 2018 Microchip Technology Inc. DS50002723A-page 4...
  • Page 5: Preface

    • Document Revision History DOCUMENT LAYOUT This document describes how to use the MIC7401 Evaluation Board as a development tool to emulate and debug firmware on a target board. The manual layout is as follows: • Chapter 1. “Product Overview”...
  • Page 6 Choice of mutually exclusive errorlevel {0|1} character: { | } arguments; an OR selection Ellipses... Replaces repeated text var_name [, var_name...] Represents code supplied by void main (void) user { ...  2016 - 2018 Microchip Technology Inc. DS50002723A-page 6...
  • Page 7 Preface RECOMMENDED READING This user’s guide describes how to use the MIC7401 Evaluation Board. Another use- ful document is listed below. The following Microchip document is available and recommended as a supplemental reference resource: MIC7401 Data Sheet – “Configurable PMIC, Five-Channel Buck Regulator Plus One-Boost with HyperLight Load®...
  • Page 8 MIC7401 Evaluation Board User’s Guide NOTES:  2016 - 2018 Microchip Technology Inc. DS50002723A-page 8...
  • Page 9: Chapter 1. Product Overview

    Standby mode can be achieved either by I C communication or the external STBY pin. Powering up the MIC7401 directly into Standby mode does not offer the advantages of Normal mode power-up (sequencing, timing and soft-start ramp control) and should be avoided.
  • Page 10: Mic7401 Typical Application

    MIC7401 TYPICAL APPLICATION THE MIC7401 EVALUATION BOARD The MIC7401 Evaluation Board is designed to demonstrate the core functionality of the MIC7401 configurable PMIC which includes five independent synchronous buck regu- lators that can deliver a current of 3A and one non-synchronous boost converter with up to 200 mA of output current from an input voltage of 2.4V to 5.5V.
  • Page 11: What The Mic7401 Evaluation Board Kit Includes

    Product Overview • Output pull-down, Power-on Reset WHAT THE MIC7401 EVALUATION BOARD KIT INCLUDES The MIC7401 Evaluation Board kit includes the following items: • MIC7401 Evaluation Board (ADM00812) • Important Information Sheet  2016 - 2018 Microchip Technology Inc. DS50002723A-page 11...
  • Page 12 MIC7401 Evaluation Board User’s Guide NOTES:  2016 - 2018 Microchip Technology Inc. DS50002723A-page 12...
  • Page 13: Chapter 2. Installation And Operation

    • Buck regulator 4: 1.05V • Buck regulator 5: 1.25V • Boost regulator: 12V The MIC7401 PMIC on the Evaluation Board has been designed so that the I C pull-up resistors can be attached to any voltage, including V and V .
  • Page 14: Getting Started

    C pull-up resistors with the high level corresponding to either USB power (5V) or V 4. Connect the microUSB type B cable from J2 to a PC in order to enable commu- nication. The MIC7401 Evaluation Board provides easy interfacing to any PC using the MCP2221 Bridge.
  • Page 15: Mic7401 Evaluation Board Connectors

    The MIC7401 Evaluation Board features different connectors for selecting different functionality and test points for voltage measurements and power-good: • J16 can be used to Enable or Disable the MIC7401. Placing a jumper between EN and GND will disable the device. The MIC7401 Evaluation Board features a pull-up resistor for the EN signal so the PMIC will be enabled by default.
  • Page 16: I2C Monitor Installation

    2. If Adobe Reader is already installed, go to Step 3. If not, download Adobe Reader from http://get.adobe.com/reader/ and follow the installation instructions. 3. Download the I C Monitor 3.1.0 archive from www.microchip.com/MIC7401, under “Documentation & Software.” 4. Unzip the I C Monitor 3.1.0 archive, which contains the setup.exe file.
  • Page 17 Installation and Operation FIGURE 2-4: SELECTING THE DESTINATION FOLDER FIGURE 2-5: INSTALLING THE I C MONITOR 3.1.0 The progress can be observed in the Status bar, as seen in Figure 2-6  2016 - 2018 Microchip Technology Inc. DS50002723A-page 17...
  • Page 18 7. Click the Finish button to end the installation. FIGURE 2-7: THE INSTALLATION COMPLETE WINDOW To start the GUI at a later stage, either click on the desktop icon or browse to Windows Start>All Programs>Microchip>I2C Monitor.  2016 - 2018 Microchip Technology Inc. DS50002723A-page 18...
  • Page 19: I2C Monitor Uninstall

    Installation and Operation C MONITOR GUI UNINSTALL In order to install a new version of the MIC7401, any previous version or corrupted version should be removed from the computer. To uninstall, go to Windows Start>Control Panel>Uninstall a program>I2CMonitor. The C Monitor GUI automatically closes once the uninstallation process is complete.
  • Page 20 MIC7401 Evaluation Board User’s Guide NOTES:  2016 - 2018 Microchip Technology Inc. DS50002723A-page 20...
  • Page 21: Chapter 3. Gui Description

    INTRODUCTION This chapter describes how to use the Graphical User Interface (GUI) for the I C Mon- itor 3.1.0 software application, using the MIC7401 included in the kit. NOTICE This chapter provides information regarding the (GUI) for the MIC7401 Evaluation Board device.
  • Page 22 FIGURE 3-1: C MONITOR 3.1.0 SOFTWARE APPLICATION USING THE MIC7401 KIT Legend: = Device Menu MIC7401 Global Settings C Monitor Status and Control Bar MIC7401 Status C Generic Operation View MIC7401 Operations = MIC7401 I C Programmable Regulators Progress Bar...
  • Page 23: The Graphical User Interface

    MONITOR STATUS AND CONTROL BAR Item Description Addr This drop down menu shows the address of the available devices. Connector This drop down menu shows the type of connector used to connect the board.  2016 - 2018 Microchip Technology Inc. DS50002723A-page 23...
  • Page 24 Once a valid address is detected, click the Connect button to initialize the connection with the device and then the registers are available for read and write operations.  2016 - 2018 Microchip Technology Inc. DS50002723A-page 24...
  • Page 25: I2C Generic Register View

    Register area. Register Area This section shows the current status of the address of the registers and their content. The specific registers for MIC7401 are described in the MIC7401 data sheet.  2016 - 2018 Microchip Technology Inc. DS50002723A-page 25...
  • Page 26: Mic7401 I2C Programmable Features

    This box sets the place in the startup sequence when the regulator starts This area of the GUI allows the user to modify the device features. For additional information on the part, refer to the data sheet.  2016 - 2018 Microchip Technology Inc. DS50002723A-page 26...
  • Page 27 (writing logic “0”) to the respective fault bit or power cycling the device. When an over-temperature is detected, the MIC7401 pulls down the global Power-good output and all outputs are turned off. During the fault condition the C interface remains active and all register values are maintained.
  • Page 28: Mic7401 Global Settings

    This box sets the delay for the POR flag pin. The POR delay time starts as soon as AVIN voltage rises above the system UVLO upper threshold. VSLT Pin Logic Level For the MIC7401, the threshold is fixed between 2.25V and 3.25V and can’t be modified. POR Threshold Up This box sets the POR threshold Up value from 2.25V to...
  • Page 29: Mic7401 Operations

    MIC7401 OPERATIONS AREA TABLE 3-6: OPERATIONS ITEMS Item Description Global Standby This check box switches MIC7401 from Normal operation to Standby operation. Save Config This button saves the shadow (temporary) register configuration data into EEPROM (permanent) registers 03h - 23h Reload This button reloads all data from EEPROM into the shadow reg- ister.
  • Page 30: Microchip Technology Inc. Ds50002723A

    MIC7401 Evaluation Board User’s Guide  2016 - 2018 Microchip Technology Inc. DS50002723A-page 30...
  • Page 31: Mic7401 Evaluation Board User's Guide

    • Board - Top Copper • Board - Mid-Layer 1 • Board - Mid-Layer 2 • Board - Bottom Copper • Board - Bottom Copper and Silk • Board - Bottom Silk  2016 - 2018 Microchip Technology Inc. DS50002723A-page 31...
  • Page 32: Adm00812 Board - Schematic

    HDR-2.54 Male 2x6 HDR-2.54 Male 1x4 HDR-2.54 Male 1x3 Drawn By: Catalin Bibirica Engineer: Catalin Bibirica PartNumber: Project Title ADM00812 MIC7401 Evaluation Board Sheet Title Designed with LABEL1 MIC7400 Evaluation Board Size Sch #: 03-10623 Date: 30-Aug-17 9:49:48 AM Revision:...
  • Page 33: Board - Top Silk

    Schematic and Layouts BOARD - TOP SILK BOARD - TOP COPPER AND SILK  2016 - 2018 Microchip Technology Inc. DS50002723A-page 33...
  • Page 34: Board - Top Copper

    BOARD - TOP COPPER BOARD - MID-LAYER 1  2016 - 2018 Microchip Technology Inc. DS50002723A-page 34...
  • Page 35: Board - Bottom Copper

    Schematic and Layouts BOARD - MID-LAYER 2 BOARD - BOTTOM COPPER  2016 - 2018 Microchip Technology Inc. DS50002723A-page 35...
  • Page 36: Board - Bottom Copper And Silk

    BOARD - BOTTOM COPPER AND SILK A.10 BOARD - BOTTOM SILK  2016 - 2018 Microchip Technology Inc. DS50002723A-page 36...
  • Page 37: Appendix B. Bill Of Materials (Bom)

    MIC7401 EVALUATION BOARD USER’S GUIDE Appendix B. Bill of Materials (BOM) TABLE B-1: BILL OF MATERIALS (BOM) - MIC7401 EVALUATION BOARD (ADM00812) Qty. Reference Description Manufacturer Part Number Capacitor Ceramic, 2.2 µF, 10V, 10%, TDK Corporation C1005X7S1A225K050BC X7S, SMD, 0402 CAP TANT, 150 µF 10V, 10%, 100 m,...
  • Page 38 MIC7401 Evaluation Board User’s Guide TABLE B-1: BILL OF MATERIALS (BOM) - MIC7401 EVALUATION BOARD (ADM00812) Qty. Reference Description Manufacturer Part Number TP1, TP2, TP3, Connector TP PIN Tin, TH Harwin Plc. H2121-01 TP4, TP5, TP6, TP7, TP8, TP9, TP10, TP11,...
  • Page 39: Worldwide Sales And Service

    Tel: 408-735-9110 Sweden - Stockholm Tel: 86-29-8833-7252 Tel: 66-2-694-1351 Tel: 408-436-4270 Tel: 46-8-5090-4654 Fax: 86-29-8833-7256 Fax: 66-2-694-1350 Canada - Toronto UK - Wokingham Tel: 905-695-1980 Tel: 44-118-921-5800 Fax: 905-695-2078 Fax: 44-118-921-5820  2016 - 2018 Microchip Technology Inc. DS50002723A-page 39 11/07/16...
