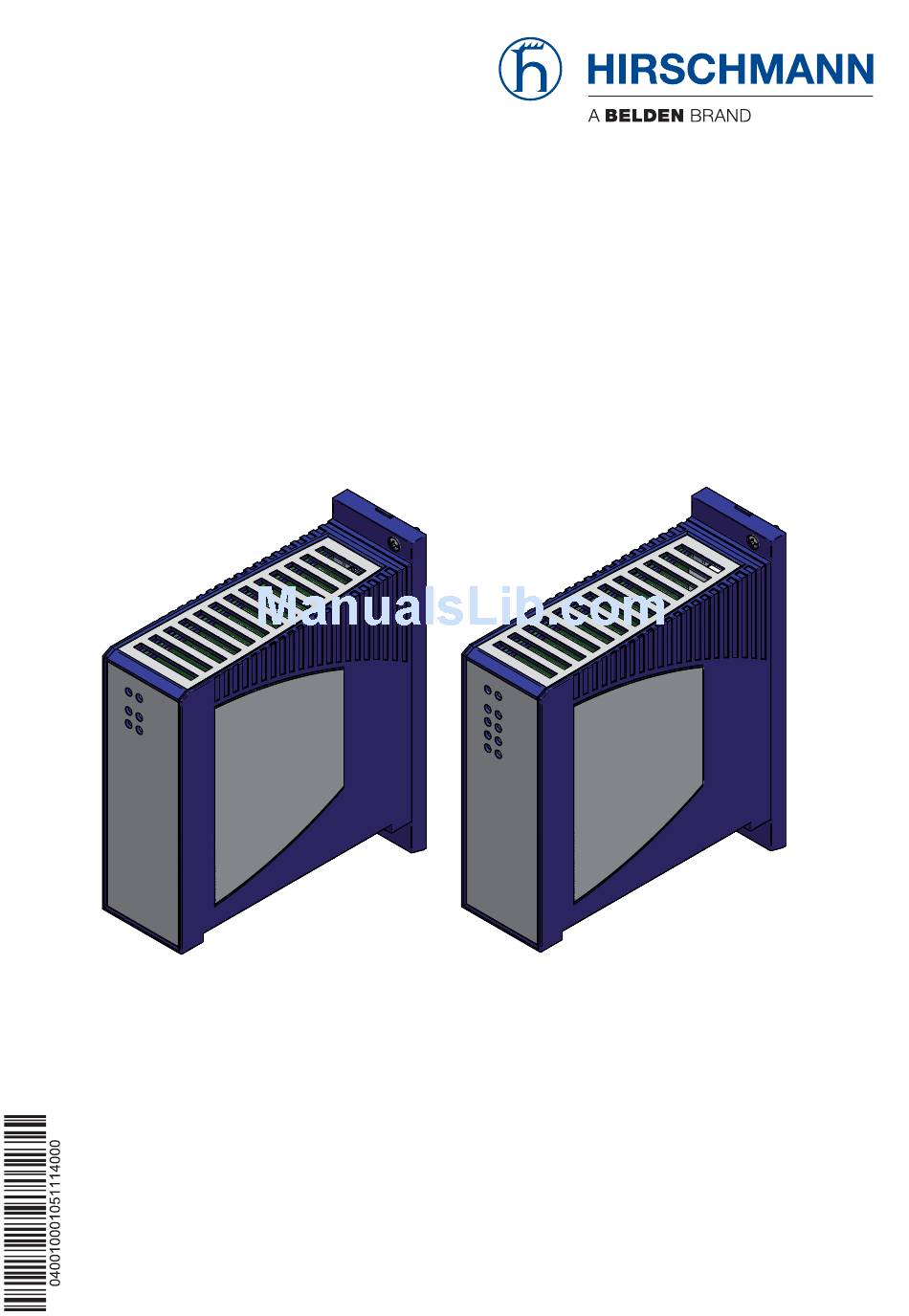

User Manual

Installation
MICE Switch Media Modules
MSM20/22/24/40/42
Installation MSM20/22/24/40/42
Technical Support
Release 05 11/2014
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSM20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hirschmann MSM20

  • Page 1: User Manual

    User Manual Installation MICE Switch Media Modules MSM20/22/24/40/42 Installation MSM20/22/24/40/42 Technical Support Release 05 11/2014 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Printed in Germany Hirschmann Automation and Control GmbH Stuttgarter Str.
  • Page 3: Table Of Contents

    Description General description Device name and product code Combination options Slots in the basic module Media modules 1.5.1 Media modules MSM20 1.5.2 Media modules MSM40 1.5.3 PoE-capable media modules MSM22 and MSM42 MSM24 I/O module SFP Transceiver Ethernet ports Display elements 1.9.1 MSM20 media modules...
  • Page 4 Removing an SFP transceiver (optional) Removing a media module 4.2.1 Device variants featuring customer-specific version with the characteristic value HH 4.2.2 Device variants featuring customer-specific version with the characteristic value HX Technical data Further Support Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 5: Safety Instructions

     Never start operation with damaged components.  The device does not contain any service components. If the device is not functioning correctly, or if it is damaged, turn off the power supply and return the device to Hirschmann for inspection. WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually.
  • Page 6: Grounding The Device

    Intended usage   Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “Technical data” on page 45.  Connect to the product only components suitable for the requirements of the specific application case.
  • Page 7 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Tel.: +49 1805 141538 The device can be used in the industrial sector.
  • Page 8  (according to the Standards UL508 / CSA C22.2 No. 142- 1987) When using the MSM20/22/24/40/42 devices as industrial control equip- ment the following restrictions apply: Max. surrounding air temperature: +60 °C (... to apply for operating temperature characteristic values S, T or E) Use Copper Conductors only.
  • Page 9 Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 10 Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 11  (European directive 94/9/EC) In Ex zone 2, solely the devices with a corresponding label may be oper- ated. When operating the MSM20/24/40/42 devices in Ex zone 2, the following applies: II 3G Ex nA IIC T4 Gc Ta: −40 °F ... +158 °F (−40 °C ... +70 °C) for temperature range characteristic value T and E Ta: +32 °F ...
  • Page 12 Recycling note  After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 13: About This Manual

    The following manuals are available as PDF files on the CD/DVD supplied:  Basic Configuration user manual  User Manual Installation MSM20/22/24/40/42  User Manual Installation MSP30/32  Redundancy Configuration user manual ...
  • Page 14: Description

    Transmission speed  Certifications The MSM20/22/24/40/42 media modules are designed for the special requirements of industrial automation. They meet the relevant technical stan- dards, provide very high operational reliability, even under extreme condi- tions, and also long-term reliability and flexibility.
  • Page 15: Device Name And Product Code

    16 ... 17 Certificates and You will find detailed information on the certificates and declara- declarations tions applying to your device in a separate overview. See table 2 on page 17. Table 1: Device name and product code Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 16 Item Characteristic Charac- Description teristic value 18 ... 19 Customer-specific Hirschmann standard version Hirschmann Extreme Conditions Hardware configu- None ration Software configura- Entry (Hirschmann Standard) tion 22 ... 26 Software version 99.9 Without software Table 1: Device name and product code a.
  • Page 17 Application case Certificates and Characteristic value declarations Standard applications ATEX Zone 2 EN 60950-1 EN 61131-2 ISA 12.12.01 – Class I, Div. 2 UL 508 Substation applications IEC 61850-3 IEEE 1613 Navy applications Railway applications EN 50121-4 Table 2: Assignment: application cases, certificates and declarations, characteristic values...
  • Page 18 Figure 1: Example of a device name: MSM40-C1C1C1C1SZ9HH9E99.9...
  • Page 19: Combination Options

    Combination options 1 ... 3 4 ... 5 7 ... 8 9 ... 10 11 ... 12 13 ... 14 16 ... 17 18 ... 19 22 ... 26 Produc Data rate — Port Port 2 Port 3 Port 4 Tempera Certifications Customer-...
  • Page 20 1 ... 3 4 ... 5 7 ... 8 9 ... 10 11 ... 12 13 ... 14 16 ... 17 18 ... 19 22 ... 26 Produc Data rate — Port Port 2 Port 3 Port 4 Tempera Certifications Customer- Hardware Software...
  • Page 21: Slots In The Basic Module

    See “Device name and product code” on page 15. You will find the arrangement and sequence of the slots in the basic module in the following overview: MSP30/32-0804... /100/1000 Mbit/s /100 Mbit/s /100 Mbit/s a. only for twisted pair connections Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 22 /100 Mbit/s /100 Mbit/s /100 Mbit/s /100 Mbit/s /100 Mbit/s /100 Mbit/s a. only for twisted pair connections You will find more information on the basic module in the “User Manual for Installation of MSP30/32”. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 23: Media Modules

     V.24 data rate: 9,600 Baud Further information on the basic settings of the device can be found in the “Basic Configuration” user manual on the CD/DVD. 1.5.1 Media modules MSM20 Port 1 (F/O) Port 2 (Twisted Pair) Port 3...
  • Page 24 MSM20-S2S2T1T1... Port 1 (F/O) Port 2 (F/O) Port 3 (F/O) Port 4 (F/O) Table 7: MSM20-S4S4S4S4... Port 1 (Twisted Pair) Port 2 (Twisted Pair) Port 3 (Twisted Pair) Port 4 (Twisted Pair) Table 8: MSM20-T5T5T5T5... Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 25: Media Modules Msm40

    You have the option of alternatively connecting a twisted pair cable via a RJ45 socket or an optical fiber via a SFP transceiver to a combo port. By inserting a SFP transceiver, you deactivate automatically the corre- sponding twisted pair interface. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 26: Poe-Capable Media Modules Msm22 And Msm42

    The maximum power output of each module is 62 Watt. The PoE support complies with the following technical standards: Standard Description IEEE 802.3af Brief description Classes max. Powered Device (PD) class 0 (15,4 W) Table 13: PoE support: technical standards Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 27: Msm24 I/O Module

    I/O module receives and transmits digital sensor signals. The digital outputs allow a wide range of actuators to be operated in the plant area. Sensors, actuators and other components are supplied with +24 V DC via an electrically insulated output. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 28: Digital Outputs

    NC contact, channel 3 CENTER-3 Center contact, channel 3 ON-3 NO contact, channel 3 OFF-4 NC contact, channel 4 CENTER-4 Center contact, channel 4 ON-4 NO contact, channel 4 Table 15: Pin assignment of the digital outputs Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 29: Sfp Transceiver

    F/O cables. Connect the ports of the media modules plugged into the basic module as required in order to set up your industrial Ethernet or expand your existing network. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 30 IEEE 802.3 10BASE-T/100BASE- TX standard. This port supports:  10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode  100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode  Autocrossing (if autonegotiation is activated)  Autonegotiation Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 31 The 100 Mbit/s F/O port allows you to connect network components according to the IEEE 802.3 100BASE-FX standard.  100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode State on delivery:  100 Mbit/s, full duplex Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 32: Display Elements

    Flashing Device is transmitting and/or receiving data Flashes 1 Device detects at least one unauthorized time a MAC address (Port Security Violation) period Table 20: Device status and port status for MSM20 media modules Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 33: Msm40 Media Modules

    Flashing Device is transmitting and/or receiving data Flashes 1 Device detects at least one unauthorized time a MAC address (Port Security Violation) period Table 21: Device status and port status for MSM40 media modules Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 34: Msm22 And Msm42 Media Modules

    Output budget has been exceeded time a Device has detected a connected period powered device Flashes 3 PoE administrator status deactivated times a period Table 22: Device status and port status for MSM22 and MSM42 media modules Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 35: Msm24 I/O Module

    Lights up The output relay is activated. Yellow Flashes 3 The synchronization of the digital output times a with the assigned input has failed. period Table 23: Device status and I/O status for MSM24 I/O module Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 36: Installation

    Installation The devices have been developed for practical application in a harsh indus- trial environment. Hirschmann supplies the media modules ready for operation. Perform the following steps to install and configure the device:  Checking the package contents  Installing media modules ...
  • Page 37: Device Variants Featuring Customer-Specific Version With The Characteristic Value Hh

     Fasten the media modules with 2 screws in the backplane. Note: With certification type “Z9” you can omit using screws to fasten the media module. See “Device name and product code” on page 15. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 38: Device Variants Featuring Customer-Specific Version With The Characteristic Value Hx

     Release the terminal blocks for the digital inputs and digital outputs from the bottom of the I/O module.  Connect the digital outputs and digital inputs of the MSM24 I/O module as required. See “Pin assignment” on page 27. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 39  Push the terminal blocks back onto the I/O module. Tighten the screws on the terminal blocks.  By connecting the supply voltage via the terminal block or the terminal blocks, respectively, to the MSP30/32 basic module, you start the MSM24 I/O module. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 40: Installing An Sfp Transceiver (Optional)

    Installing an SFP transceiver (optional) Only use Hirschmann SFP transceivers.  Remove the protective cap from the SFP transceiver.  Push the SFP transceiver with the lock closed into the socket until you hear it latch in. Connecting data cables...
  • Page 41: 10/100 Mbit/S Twisted Pair Port

    “100/1000 Mbit/s F/O port” on page  Connect the data cable according to your requirements. 2.5.4 100 Mbit/s F/O port For further information see “100 Mbit/s F/O port” on page  Connect the data cable according to your requirements. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 42 Hirschmann are continually working on improving and developing their software. Check regularly whether there is an updated version of the soft- ware that provides you with additional benefits. You find information and software downloads on the Hirschmann product pages on the Internet (www.hirschmann.com). ...
  • Page 43  Close the socket with the protective cap. Removing a media module You have the option to remove the media modules while the device is operating. 4.2.1 Device variants featuring customer-specific version with the characteristic value HH Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 44 Device variants featuring customer-specific version with the characteristic value HX Proceed as follows:  Disconnect the data cables.  Loosen the 2 screws on the hardware elements.  Pull the media module out of the slot. Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 45: Technical Data

    Temperature of the ambient air at a distance of 2 inches (5 cm) from the device c. Hirschmann recommends to use SFP transceivers with the "EEC" extension. d. Only use SFP transceivers with the “EEC” extension, otherwise the standard temperature range applies.
  • Page 46: Digital Input

    Output voltage range +24 V DC ... +27 V DC Maximum output power 3.0 W Short-circuit protection yes (electronically) Under-voltage deactivation Note: For the pin assignment see “24 V DC auxiliary voltage (AUX)” on page Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 47: Dimension Drawings

    38,2 117,8 4.64 Figure 5: Dimensions for media modules featuring customer-specific version with the characteristic value HH 117,6 inch 38,2 4.63 Figure 6: Dimensions for media modules featuring customer-specific version with the characteristic value HX Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 48 EMC and immunity  EMC interference Standard Merchant Navy Railway Substation emission applications applications applications (trackside) Radiated emission EN 55022 Class A Class A Class A Class A GL Guidelines — EMC 1 — — FCC 47 CFR Part 15 Class A Class A Class A...
  • Page 49 EMC interference Standard Merchant Navy Railway Substation immunity applications applications applications (trackside) Electrostatic discharge EN 61000-4-2 Contact discharge ± 4 kV ± 6 kV ± 6 kV ± 8 kV IEEE C37.90.3 EN 61000-4-2 Air discharge ± 8 kV ± 8 kV ±...
  • Page 50 EMC interference Standard Merchant Navy Railway Substation immunity applications applications applications (trackside) Damped vibration – DC supply connection EN 61000-4-12 line/ground — — — 2.5 kV IEEE C37.90.1 EN 61000-4-12 line/line — — — 1 kV IEEE C37.90.1 Damped oscillation - data line EN 61000-4-12 line/ground —...
  • Page 51 Stability Standard Merchant Navy Railway applications Substation applications (trackside) applications IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 2 Hz ... 13.2 Hz mit — 2 Hz ... 9 Hz with 0.14 in. (3.5 mm) 1 mm amplitude 0.12 in.
  • Page 52: Scope Of Delivery

    MSM40-T1T1T1T1... 7.0 Btu (IT)/h MSM42 media modules: MSM42-T1T1T1T1... 4.0 W 14.0 Btu (IT)/h MSM42-T1T1T1T1... 3.0 W 10.0 Btu (IT)/h MSM20 media modules: MSM20-xxT1T1T1... 5.0 W 17.0 Btu (IT)/h MSM20-xxT1T1T1... 4.0 W 14.0 Btu (IT)/h MSM20-xxxxT1T1... 4.0 W 14.0 Btu (IT)/h MSM20-xxxxT1T1...
  • Page 53 M-FAST SFP-MM/LC 943 865-001 M-FAST SFP-MM/LC EEC 943 945-001 M-FAST SFP-SM/LC 943 866-001 M-FAST SFP-SM/LC EEC 943 946-001 M-FAST SFP-SM+/LC 943 867-001 M-FAST SFP-SM+/LC EEC 943 947-001 M-FAST SFP-LH/LC 943 868-001 M-FAST SFP-LH/LC EEC 943 948-001 Installation MSM20/22/24/40/42 Release 05 11/2014...
  • Page 54 If your device has a shipping approval according to Germanischer Lloyd, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website under www.hirschmann.com in the product information.
  • Page 55: Further Support

    Further Support Technical Questions  For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
