Wire sensors to the I/O interface

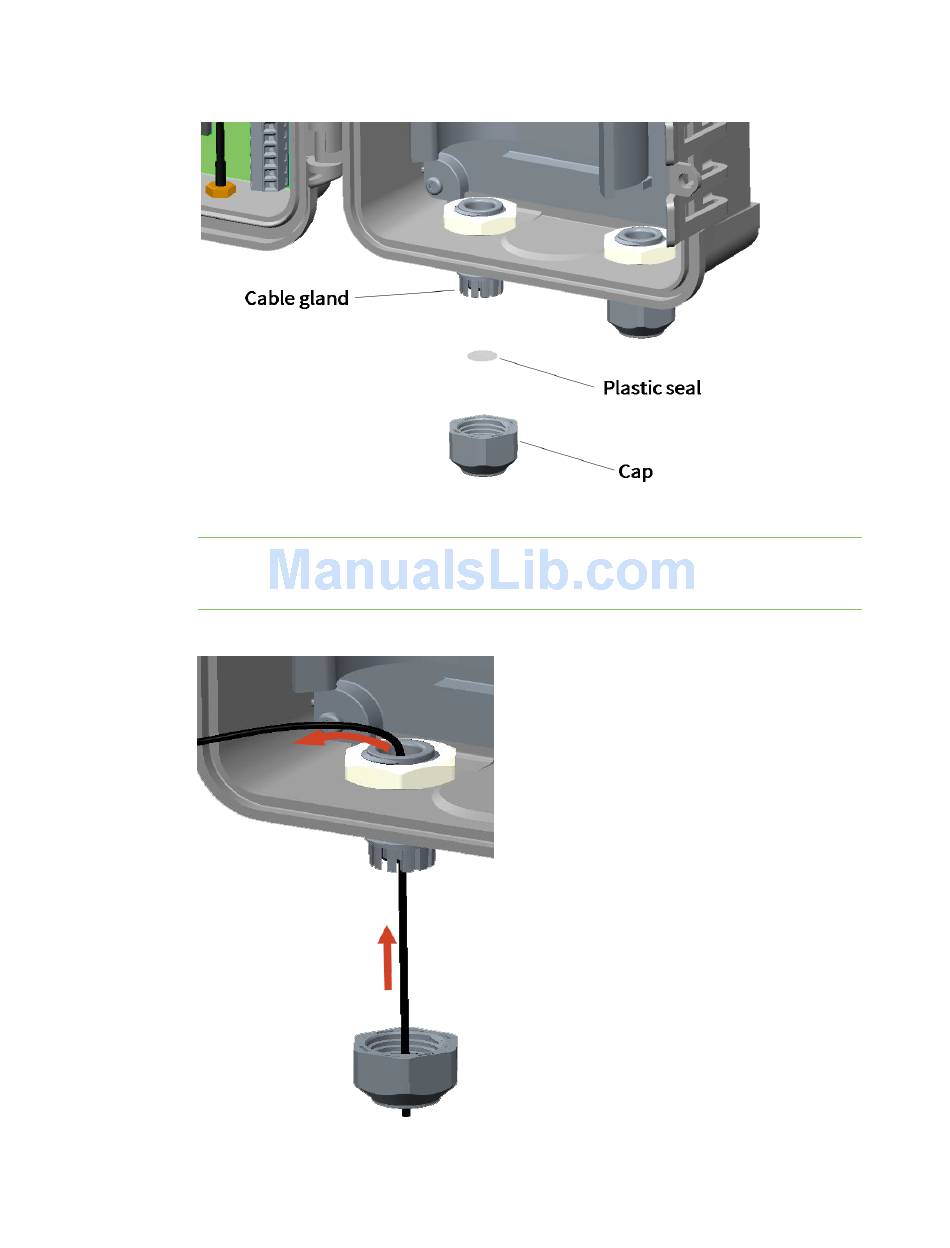

2. Unscrew the gland cap and remove the plastic seal.
Note
For an unused cable gland, make sure the plastic hole cover stays in place to keep it
sealed. Over tightening an unused cable gland cap can force out the plastic hole cover,
unsealing the cable gland.
3. Run the sensor cable through the cap and thread it through the cable gland.
Digi Connect® Sensor I/O Wiring Guide
11
