CEL-FI PRO Quick Start Manual

Troubleshooting

The key to better performance is the placement of the two units.
(Error 6) NU Hardware Error (Error 1) Not receiving signal
Network Unit
Reset the by unplug- Relocate the
ging it and then plugging it back in. another room or area where you have
If the problem persists, return more coverage. (Use your cell phone
system for service replacement. to nd the best cellular signal).
(Error 8) Input signal too strong (Error 4) NU is overheating
Network Unit is too close to a cellular Make sure that the vents (the small
tower. Move your Network Unit to openings in the plastic housing) on the
another location. You might need to units are not blocked. Move the unit to
move your system to the other side a cooler area. The system will start
of your home/o ce. working normally when it cools down.
The units are too far apart
The units are too close together
Try moving the units farther apart. Try moving the units closer together.
FCC Requirements:
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless
provider and have your provider's consent. Most wireless providers
consent to the use of signal boosters. Some providers may not consent to
the use of this device on their network. If you are unsure, contact your
provider.
You MUST operate this device with approved antennas and cables as
speci ed by the manufacturer. Antennas MUST be installed at least 20
cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by
the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may
be inaccurate for calls served by using this device.
When used with any mobile device utilizing the 1710-1755 MHz band,
the FCC limits booster equipment placement to a maximum of 10 meters
above ground level. Installation of this equipment which does not
comply with federal requirements may subject the owner to FCC
enforcement action.
Changes or modi cations not expressly approved by Nextivity, Inc.
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
(Error 2) CU Hardware Error
Network Unit Coverage Unit
to Try resetting the
unplugging it and then plugging it
back in. If problem persists, return
system for service.
(Error 3) CU is overheating
Make sure that the vents (the small
openings in the plastic housing) on the
units are not blocked. Move the unit to
a cooler area. The system will start
working normally when it cools down.
(Error 7) Unit disabled by network
Please call your cell phone
provider.
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
Copyright © 2014 by Nextivity, Inc, U.S. Patents pending. All rights
reserved. The Nextivity and Cel-Fi logos are registered trademarks of
Nextivity Inc. All other trademarks or registered trademarks listed belong
to their respective owners. Designed by Nextivity in California. For more
information, visit www.Cel-Fi.com.
qsg-PRO-NA-English_14-0908
CEL-FI PRO
by
Quick Start Guide

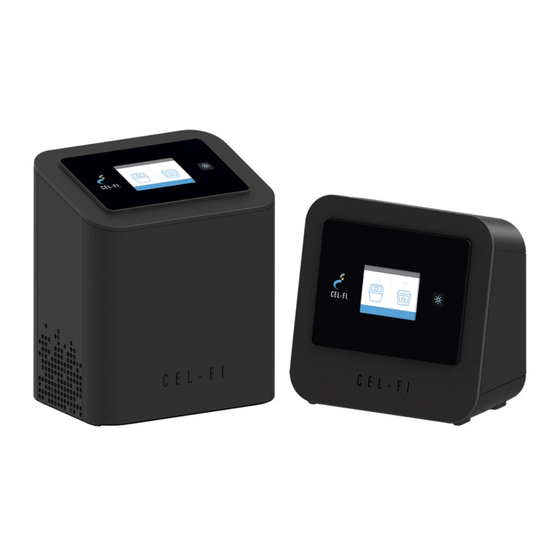

Box Contents:

•
•
Quick Start Guide • Network Unit
Power Adapters (2) • Mounting Brackets (2)
• Coverage Unit
