CEL-FI QUATRA 4000 User Manual

QUATRA 4000
RANGE EXTENDER
QUATRA 4000 RANGE EXTENDER
The Cel-Fi QUATRA 4000 Range Extender is a Power over Ethernet
(PoE) device that extends the maximum distance between the Cel-Fi
QUATRA Network Unit and the Coverage Unit interconnect via cable
lengths up to 200 meters. Plug and play installation.
The Cel-Fi QUATRA Range Extender is designed solely for use with the
Cel-Fi QUATRA, and will not work with Cel-Fi QUATRA variants or
devices. Other extender products will not work with Cel-Fi QUATRA.
Only one (1) Extender may be used per Cel-Fi QUATRA Coverage Unit.
Cooling Fins

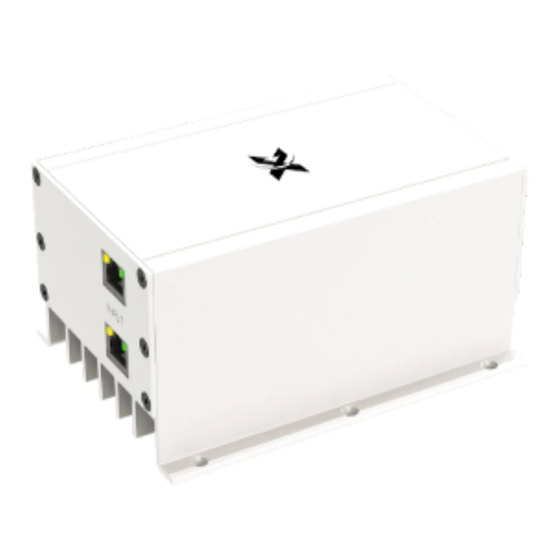

Cel-Fi QUATRA 4000 Range Extender
Compliance Contact
In the event of a regulatory compliance issue, please contact Nextivity
Inc. at www.nextivityinc.com.
Note: Certifications are regional; not all products need or have the
same certifications. Please check the specific model number to
determine exactly which certifications it has.
Patents
This product is covered by Nextivity, Inc., US patents and patents
pending. Please refer to www.cel-fi.com for details.
Support
Should you require any assistance, please contact your Cel-Fi
QUATRA reseller. If your questions cannot be answered immediately,
your reseller will forward your queries through the appropriate
channels to ensure a rapid response. If you still need assistance visit:
http://www.cel-fi.com/support.
Copyright © 2019 by Nextivity, Inc, U.S. Patents pending. All rights reserved. The Nextivity
and Cel-Fi logos are registered trademarks of Nextivity Inc. All other trademarks or
registered trademarks listed belong to their respective owners. Designed by Nextivity
Inc in California.
OVERVIEW
Cel-Fi QUATRA
NETWORK UNIT
Mounting Holes
manual-quatra-4000-ext_19-1111
Cel-Fi QUATRA
NETWORK UNIT
Cat 5e cable
100 meter max
WITH
Cel-Fi QUATRA
RANGE EXTENDER
Cat 5e cable
100 meter max
INPUT
Input from
Cel-Fi QUATRA
NETWORK UNIT
USER MANUAL
Cel-Fi QUATRA
COVERAGE UNIT
Cel-Fi QUATRA
COVERAGE UNIT
Cat 5e cable
100 meter max
OUTPUT
Output to
Cel-Fi QUATRA
COVERAGE UNIT
CEL-FI QUATRA ACCESSORY
