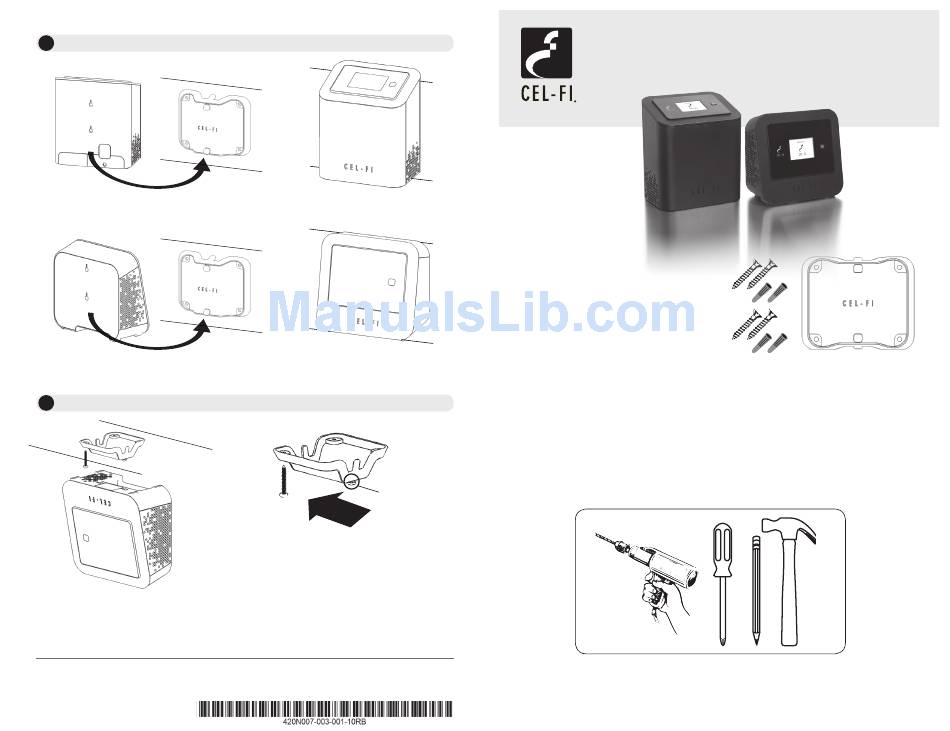

CEL-FI PRO Mounting Instructions

6
Attach the Cel-Fi Unit to the wall mounted bracket.
6b Optional: Attach the Cel-Fi Unit to a ceiling mounted bracket.
(x4)
Coverage Unit
upside down
For more information, visit www.Cel-Fi.com
Copyright © 2014 by Nextivity, inc, u.S. Patents pending. all rights reserved. the Nextivity and Cel-Fi logos are registered trademarks
of Nextivity inc. all other trademarks or registered trademarks listed belong to their respective owners. designed by Nextivity inc in
California.
form-bracket-PRo-english_14-0515
Network Unit
Coverage Unit
(x4)
Mounting
Posts
Slide Coverage
Unit until secure.
To ensure ceiling mounting is as secure
as possible, confirm that the mounting
bracket posts are firmly inserted, and in
the correct position.

Mounting Instructions

Network
Unit
each Cel-Fi device may be supplied with
mounting brackets and hardware to
mount both (or either) the Coverage
Unit and the Network Unit.
Note: the brackets come equipped with screws and inserts for mounting in stan-
dard drywall. Before you install the mounts, make sure there are no wires or other
objects, or metal plates, behind the drywall layer that will interfere with the in-
serts, screws, or mount, or mounted units.
Note: the Network Unit only has mounting holes on the back. the Coverage Unit
has mounting holes on the bottom and on the back. the holes on the bottom of the
Coverage Unit can be used for mounting the Coverage Unit on a ceiling. (See 6b)
RequiRed HaRdwaRe
For more information, refer to the Quick Start Guide or visit www.cel-fi.com
for Cel-Fi PRO
