Summary of Contents for AVer VC322

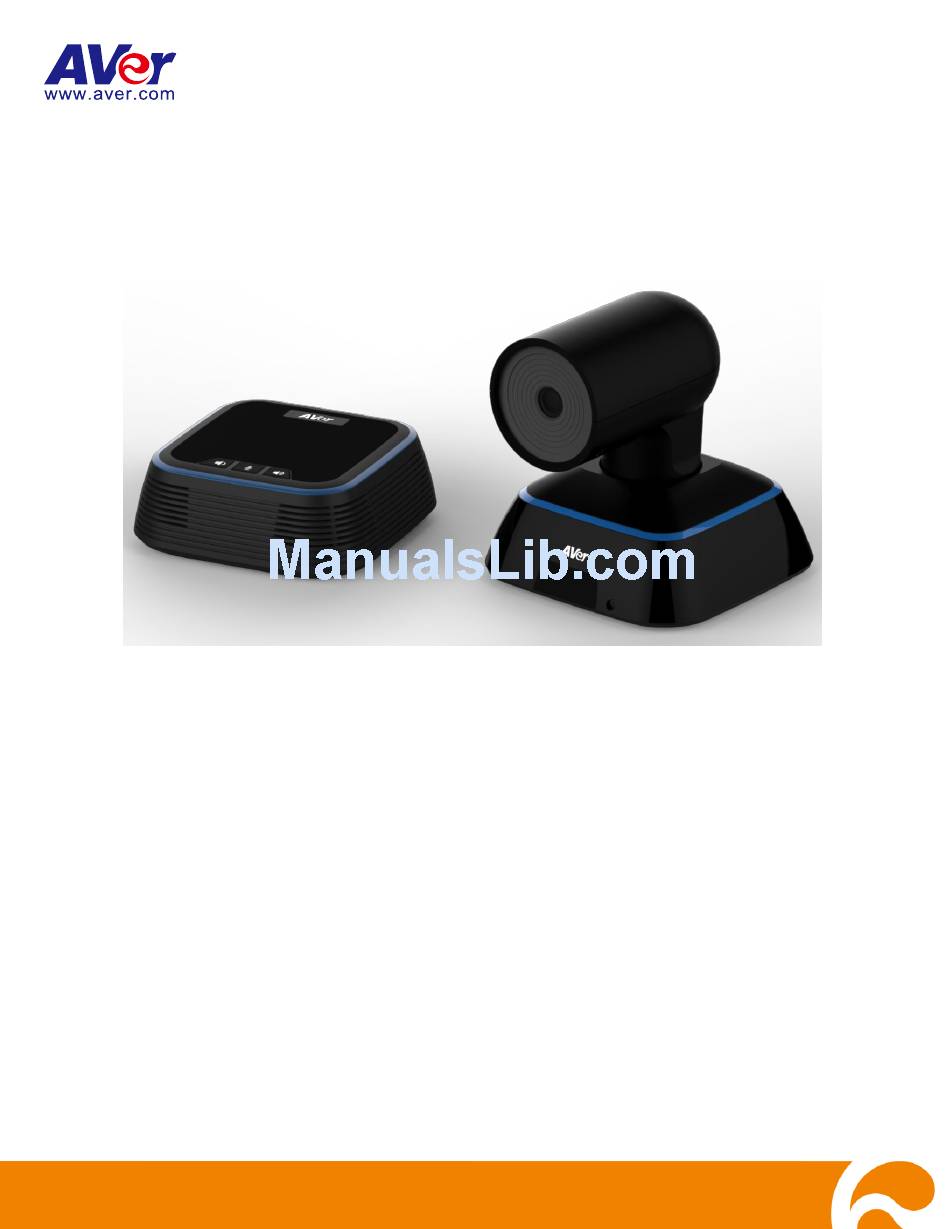

  • Page 1 VC322 User Manual...
  • Page 2 © 2017 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information...
  • Page 3 NOTICE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY. WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARRANTY WILL BE VOID IF ANY UNAUTHORIZED MODIFICATIONS ARE DONE TO THE PRODUCT.

  • Page 4: Table Of Contents

    Product Introduction ........................... 2 Camera ............................2 Speakerphone ..........................2 Remote Controller ........................3 Remote Controller Battery......................4 Setup VC322 ............................5 Device Connection ........................5 Using cable retainer ........................6 Use VC322 ............................7 Make a Video Call ........................7 LED Indicator ..........................

  • Page 5: Package Contents

    Package Contents 1. Camera 5. USB cable 2. Speakerphone 6. Speakerphone cable 3. Power plug & Power adapter 7. Cable retainer(x4) 4. Remote Controller 8. Quick start guide *The power plug will vary depending on the standard power outlet of the country where it is sold.

  • Page 6: Product Introduction

    Product Introduction Camera (3) (4) (5)(6) 1. IR Sensor 4. Camera in port 2. Power indictor 6. USB port Reset button 3. Power port Speakerphone (2) (3)(4) 1. Camera out port 3.Mute 2. Volume down 4. Volume up...

  • Page 7: Remote Controller

    Remote Controller Button Function 1. Power Not support. 2. Audio input Not support. Use the direction button on the remote to control the direction of 3. Camera direction control the camera. Press the direction button to move the camera or press and hold for continuous pan or tilt.

  • Page 8: Remote Controller Battery

    End the call. 12. Battery compartment cover Press (toward down) it to open for battery installation. Function requires AVer PTZApp Remote Controller Battery [Note] Remove the battery film tab before first use. 2. Lightly touch battery and completely pull out 1.

  • Page 9: Setup Vc322

    Setup VC322 Device Connection [Note] a. Secure the USB and speakerphone cable after connecting to the devices. ! If the video signal is weak, please connect to the USB port on the back side of the computer. 1. Use the speakerphone cable to connect the camera and speakerphone (refer to diagram above).

  • Page 10: Using Cable Retainer

    4. Install Aver PTZApp on laptop/PC that is connected with VC322. The app can be used to adjust and setup the parameters of the camera (refer to section of Aver PTZApp) ® 5. To make a call, run your video application (Skype...

  • Page 11: Use Vc322

    GoToMeeting , WebRTC, and etc.) on your laptop/PC. 3. Set the VC322 camera as the primary camera for your video application (refer to your video application user guide). You can now make your call. 4. The VC322 is a plug-and-play conference camera. The system requires no special drivers, but we do recommend installing the AVer PTZApp for a better user experience.

  • Page 12: Aver Ptzapp

    Skype. Click on the Skype plug-in request to accept the plug-in; this enables funcationality on the Remote Control. 2. During your video call, you can use the AVer PTZApp to pan, tilt and zoom the camera in/out and enable/disable the backlight feature.
  • Page 13  Currently selected device: This field displays currently selected VC or CAM device controlled by PTZApp. If you have more than one AVer VC or CAM devices connected to this PC/Mac PTZApp is running, you can click on the drop down list to select other AVer VC or CAM device.
  • Page 14  Settings: To setup parameters of the camera. Click the Save button to save all settings. To change all the settings, back to the default values, click the Factory Default button.  Diagnostic Utility: To display the S/W and F/W version and the devices connection status. You can also test the camera and speakerphone status, and update the firmware of the camera.
  • Page 15 Normal Un-normal  Connection diagnostic: Display devices connection status. If the AVer PTZApp has detected that some of the devices (camera, speakerphone and laptop/PC) are not connected well, the diagram will display an “X” on the device to indicate the connection has a problem. If the camera is in use by...
  • Page 16  Test Camera: Click the Test Camera button to check the camera status. Click to view camera live video. Also, you can adjust the camera direction and view of the zoom in/out. To leave the page, click the Abort Diagnostic button. ...
  • Page 17  Update Now: Allows the user to update the VC322 camera’s firmware. Click” Update Now”. A dialog will display the current firmware version and available new firmware version (internet connection is required). To auto update, click “Auto Update” and update process will start. The new firmware will be downloaded first;...

  • Page 18: Full Screen Mode

    Full Screen Mode PTZApp can switch to full screen mode. Move the mouse to the right corner bottom of the video screen and a “ ” icon is displayed on video screen. Click “ ” icon and video screen will switch to full screen mode.
