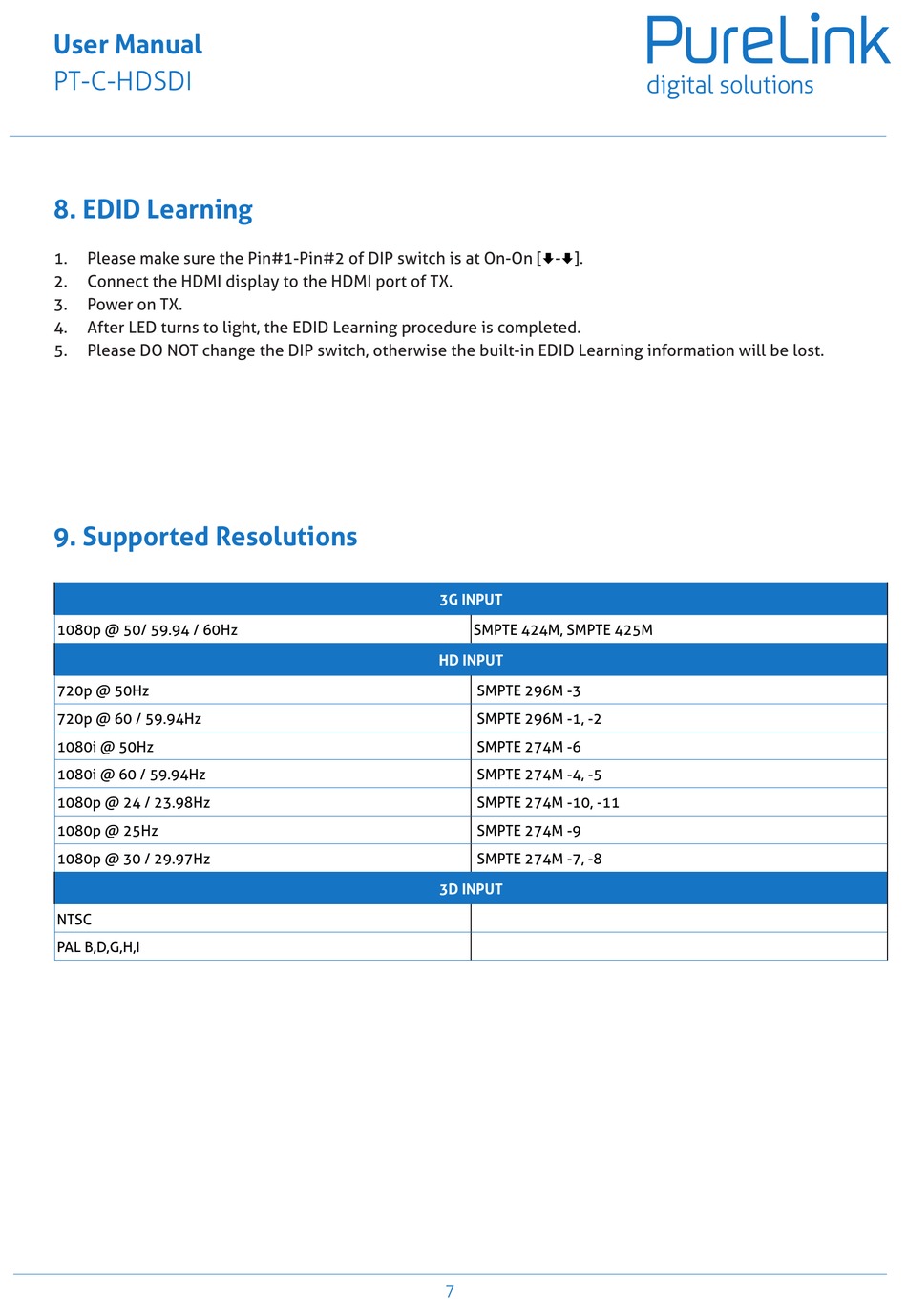

8. EDID Learning
1.
Please make sure the Pin#1-Pin#2 of DIP switch is at On-On [
2.
Connect the HDMI display to the HDMI port of TX.
3.
Power on TX.
4.
After LED turns to light, the EDID Learning procedure is completed.
5.
Please DO NOT change the DIP switch, otherwise the built-in EDID Learning information will be lost.
9. Supported Resolutions
1080p @ 50/ 59.94 / 60Hz
720p @ 50Hz
720p @ 60 / 59.94Hz
1080i @ 50Hz
1080i @ 60 / 59.94Hz
1080p @ 24 / 23.98Hz
1080p @ 25Hz
1080p @ 30 / 29.97Hz
NTSC
PAL B,D,G,H,I
-
].
3G INPUT
SMPTE 424M, SMPTE 425M
HD INPUT
SMPTE 296M -3
SMPTE 296M -1, -2
SMPTE 274M -6
SMPTE 274M -4, -5
SMPTE 274M -10, -11
SMPTE 274M -9
SMPTE 274M -7, -8
3D INPUT
