Bookmarks

Remote Control UNIVERSAL 1

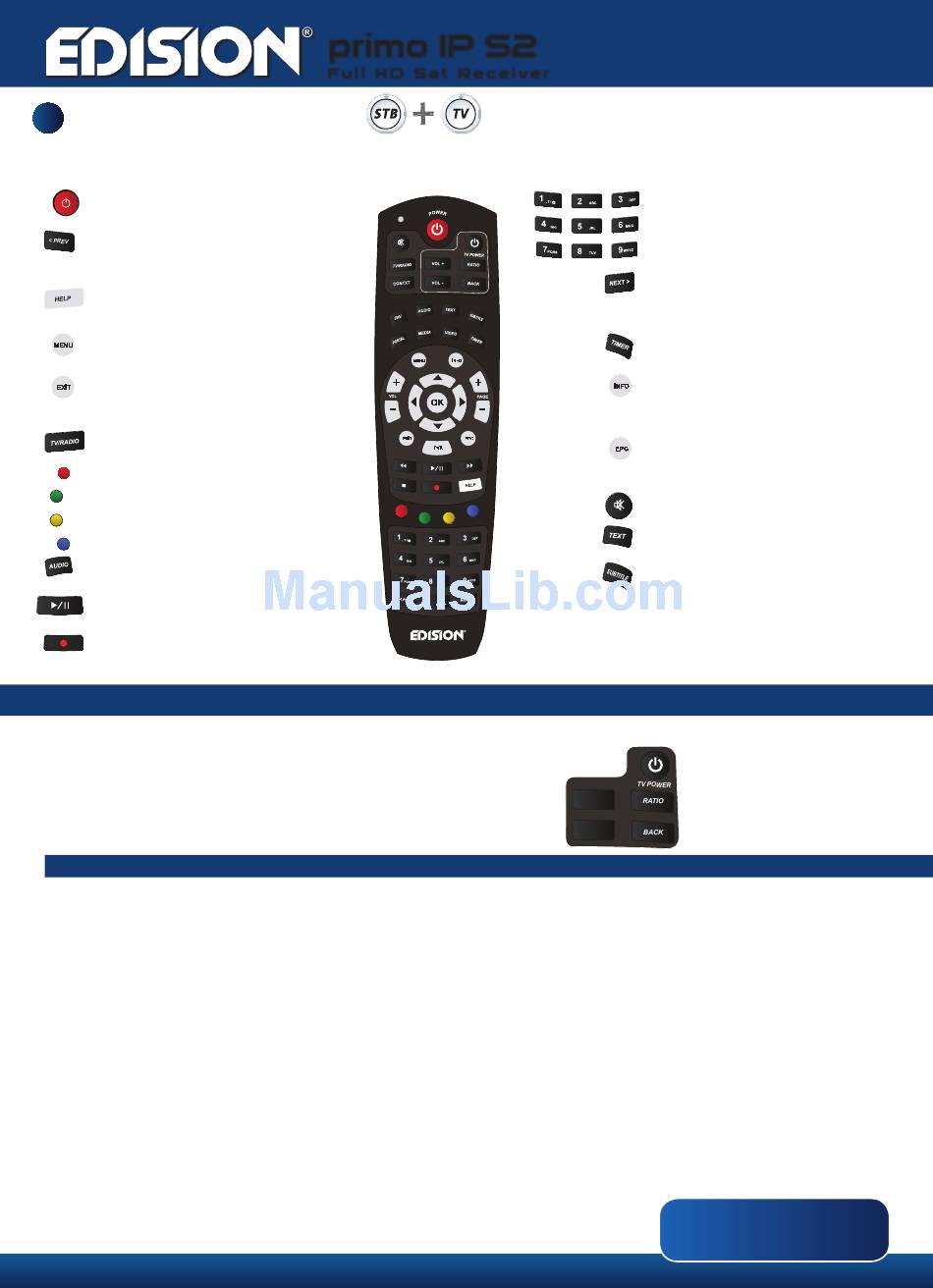

EDISION UNIVERSAL 1 REMOTE CONTROL is compatible with all EDISION STB's*, plus it is pre-programmed with 5 basic functions

for SAMSUNG & LG** tv sets. Alternatively, you can program its 5 programmable buttons to any 5 functions of your TV.

Power

Switches between operation and standby

< (PREV)

Return to the previous channel/service or

move to the end of the Service List or the Play List

Help

This provides users with a quick guide of

using Edision OS nino

Open main menu & select sub menu using

by navigation buttons

EXIT

Close and return to the previous menu and screen

RADIO - TV

Switch to TV mode.

Switch to Radio mode

COLOR BUTTONS

Activates certain menu functions.

Usage instructions are shown in each OSD menu

Audio

Select an audio track and a sound mode

PLAY

Starts timeshift if available

REC

Activates immediately recording-option

MANUAL INSTRUCTION FOR LEARN REMOTE CONTROL EDISION UNIVERSAL 1

Your set-top-box remote control has 5 learning-function keys, in the up right hand side TV keypad panel area. Each one can be used accordingly

as the following example:

1. Turning your TV set ON/OFF [TV POWER]

2. Selecting screen RATIO [Auto, 16:9, 4:3, etc)]

3. Increasing/decreasing volume [VOL+ , VOL-]

4. Command confirmation [BACK or EXIT]

The other 48 keys are for the control of the EDISION set-top-box.

SET UP FOR LEARNING FUNCTION

• Press [TV POWER] key in the up right hand side TV keypad panel area continuously for 5 Sec. until the LED lights up and keep lighting, then release the

key. This means the remote control is in the learning mode.

• Within 10 seconds, press the key in the original TV IR control, which needs to be learned, for example the [POWER] key, then the red LED is flashing. It

means this button is ready to receive the learning signal.

• Aim the emission port of the original TV remote control at the front at the emission port at the front of your set-top box remote control (distance between

these two ports has to be about 2 ~ 3 CM).

• Then press the key which is to be learned in your original TV remote control, for example the [POWER] key of your original TV remote control continuously

for 3 seconds. If the red LED flashes quickly for three times and keep lighting, it means the set-top box remote control has succeeded in receiving the

signal and you have completed the learning procedure of ON/OFF [TV POWER] key.

• Then release the [POWER] key of your original TV remote control.

If the copying procedure fails , the red LED will blink and stay OFF. In this case please repeat the procedure.

For the next programmable function, please repeat steps 1 to 3:

• Selecting screen ratio with RATIO [Auto, 16:9, 4:3, etc]

• Increasing/decreasing volume [VOL+ , VOL-]

• Command confirmation [BACK or EXIT]

Now you can operate your TV with the 5 programmed by you keys of your set-top box remote control. During the operation, the LED will flash to indicate that the

signal is transmitted!

* For EDISION STB compatibility, please visit our webpage

**LG & SAMSUNG are brand names that belong solely to LG Electronics Inc. and Samsung Electronics Co., Ltd

respectively. Any brand name reference in this text is only for informational purposes towards the consumer

that is interested in the product.

primo IP S2

F u l l H D S a t R e c e i v e r

Notes: Many of the listed buttons have multiple functions, which, are displayed in the

menus. Some buttons and functions are optional. Important functions and buttons are

briefly explained below. The buttons to be used are marked in red in the diagrams.

NUMERIC KEY (0-9)

Control the numerical operation
