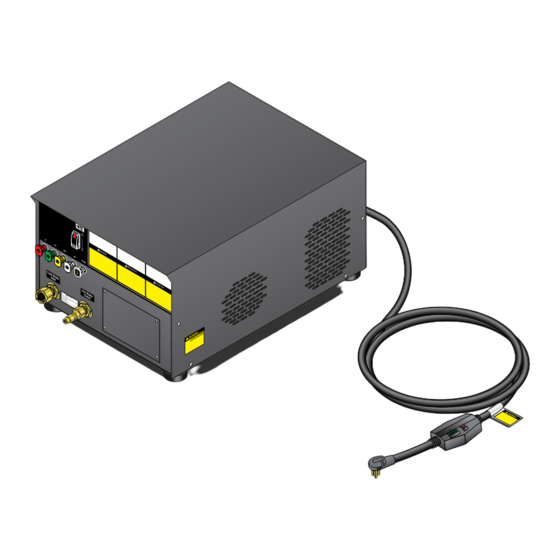

Kärcher HD 2.8/10 ST Ed B Operator's Manual

Hd series cold water - electric powered
Hide thumbs

Advertisement

Quick Links

HD Series
Cold Water - Electric Powered
Operator's Manual
WARNING:
This product and accessories may contain a chemical
State of California to cause cancer and birth defects or other
reproductive harm.
For more information about this regulation:
known
to the
www.P65Warnings.ca.gov

Pressure Washer

MODELS:
HD 2.8/10 ST Ed B
HD 4.2/20 ST Ea B
HD 4.2/20 ST Eb B
HD 4.2/20 ST Ec B
HD 4.2/20 ST Eh B
HD 3.5/30 ST Ea B
HD 3.5/30 ST Eb B
HD 3.5/30 ST Ec B
HD 3.5/30 ST Eg B
HD 3.5/30 ST Eh B
To locate your local Kärcher
Commercial Pressure Washer
Dealer nearest you, visit
www.karchercommercial.com
9.800-086.0-P
1.575-300.0
1.575-301.0
1.575-302.0
1.575-303.0
1.575-305.0
1.575-306.0
1.575-307.0
1.575-308.0
1.575-309.0
1.575-310.0
03/12/18

Advertisement

loading

  Summary of Contents for Kärcher HD 2.8/10 ST Ed B

  • Page 1: Pressure Washer

    HD Series Cold Water - Electric Powered Pressure Washer Operator’s Manual MODELS: HD 2.8/10 ST Ed B 1.575-300.0 HD 4.2/20 ST Ea B 1.575-301.0 HD 4.2/20 ST Eb B 1.575-302.0 HD 4.2/20 ST Ec B 1.575-303.0 HD 4.2/20 ST Eh B 1.575-305.0...
  • Page 2: Machine Data Label

    Machine Data Label Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 3: Table Of Contents

    Parts Karcher HD ......18 Hose & Spray Gun ......24 Multi-Room Installation .
  • Page 4: How To Use This Manual

    KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. NOTE: The manual part number is located on the lower right corner of the front cover. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 5: Safety

    When ordering parts, please specify model and serial number. Use only identical replacement parts. This machine is to be used only by trained opera- tors. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 6: Important Safety Information

    à hautes vitesses. 9. Always wear properly rated eye protection such as safety goggles or face shield while spraying. (Safety glasses do not provide full protection.) Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 7 Suivre les instructions d'entretien damage. Follow storage instructions specified in spécifiées dans le manuel. this manual. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 8: Operations

    Warm water will discharge onto Includes safety latch. floor and cool water will allow the pump protector to seal. This system prevents internal pump damage. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 9: Assembly Instructions

    Inspect inlets. CAUTION: Do not run the pump without water or pump damage will result. ATTENTION: Ne coulez pas la pompe sans eau ou des dégâts de pompe se produiront. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 10: Operating Instructions

    NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle. To scour the surface, select the yellow 15° or red 0° nozzle. To apply detergent select the black nozzle. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 11: Detergents And General Operating Techniques

    Apply detergent to work area. Do pressure nozzle. NOTE: You can also stop detergent from not allow detergent to dry on surface. flowing by simply removing detergent siphon tube from bottle. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 12: Shutting Down And Clean-Up

    STEP 6: Disconnect the high pressure STEP 5: Disconnect the garden hose STEP 7: Engage the hose from high pressure outlet. from the water inlet on the machine. spray gun safety lock. Protect from freezing. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 13: Storage

    2. Restart pressure washer and let it run briefly (about 5 seconds) until water no longer discharges from the high pressure outlet. Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 14: Maintenance

    Check pump oil level before first use. Change pump oil after first 50 hours and every month or 500 hours thereafter. Use SAE 10W-40 non-foaming oil. Estimated Operating Estimated Operating Date Oil Changed Date Oil Changed Hours Since Last Oil Hours Since Last Oil Month/Day/Year Month/Day/Year Change Change Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 15: Troubleshooting

    Coil of magnetic starter defective switch have been tested. MACHINE WILL NOT TURN ON Join wires 15 and 16 together on timer. Timer is defective WHEN SWITCH If machine works, replace timer. IS PUSHED Karcher HD 300-310 Operator’s Manual 9.800-086.0 - P...
  • Page 16 9.800-086.0 • Printed in U.S.A.

This manual is also suitable for:

1.575-300.0Hd 4.2/20 st ea b1.575-301.0Hd 4.2/20 st eb bHd 4.2/20 st ec b1.575-302.0 ... Show all
