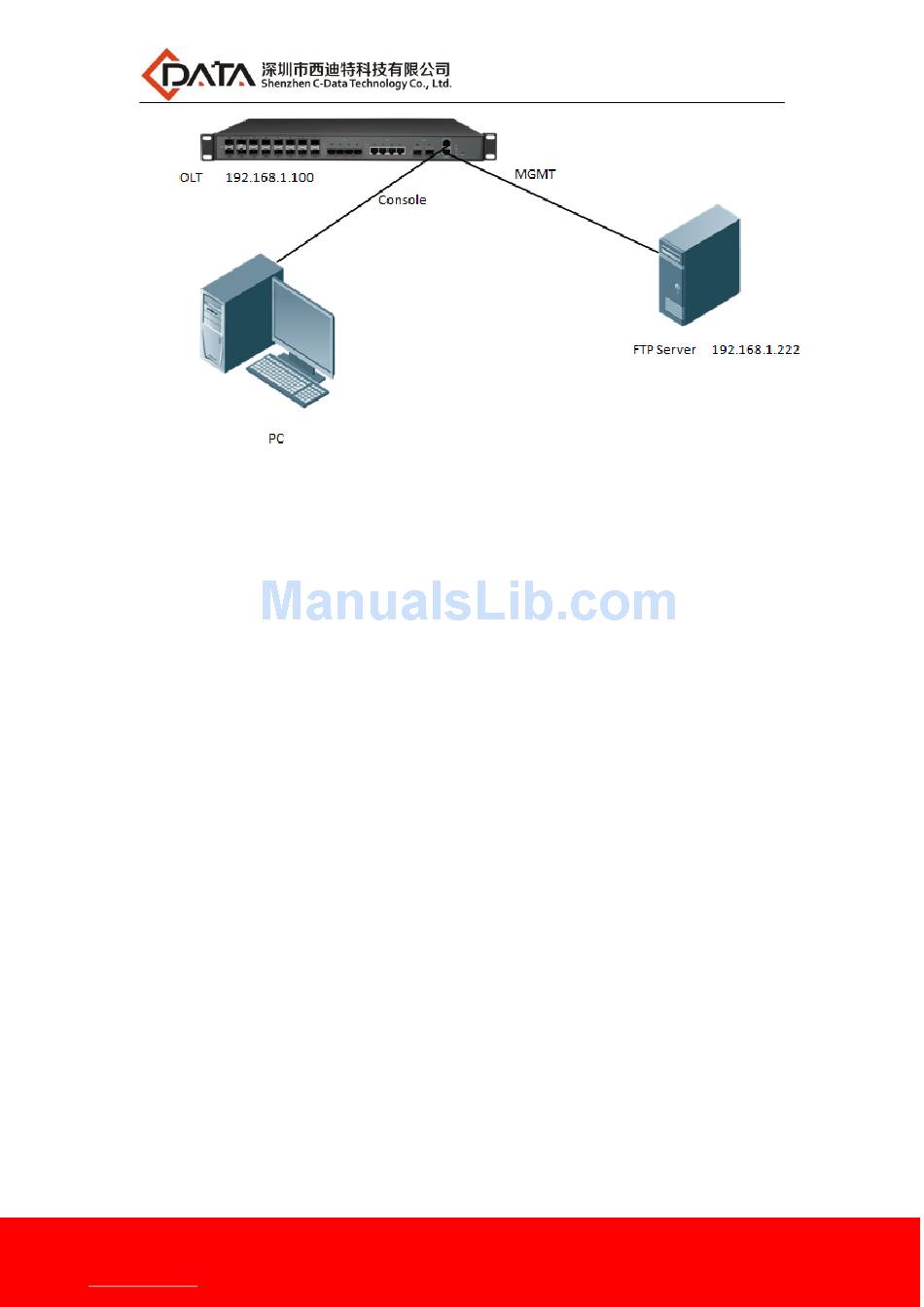

2.Test network connectivity
a.Connnect PC to OLT console port,used for updating OLT in boot mode.
b.Connect pc to OLT MGMT port or ge port,configure PC ip and OLT ip(inband ip or outband ip)
are in same segment.
c.PC can ping OLT manegemnet IP,if pc can ping OLT manegemnet ip,means OLT can connect to
FTP server.
d.Close PC firewall,prevent firewall intercept FTP software.
3. FTP server configuration
a.Open FTP software,configure FTP username and password,such as:admin/admin
b.Set up a directory of OLT updade files for the FTP server, such as the way for setting up the
wftp32. Exe software：
---Security -> User/Rights Security Dialog -> User Name —input admin
---Change Password —input admin
---Home Directory
Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
—set directory of OLT upgrade files
