In the case of GCOM-4C2-PCI

When using a GCOM-4C2-PCI, an alternative to connecting an external device directly to the connector
on the board is to use a connection conversion cable or connection conversion unit.
Converting the Interface Connector to 9-pin D-SUB,
Male Connectors
Use a PCE37/9PS connection conversion cable (purchased separately) to connect to external devices
after dividing into four 9-pin D-SUB male connector channels.
Use separately purchased 9-pin D-SUB or equivalent cables to connect from the four individual
connectors.
- Connector used
37-pin D-SUB, male connector
Thumb screw :
UNC #4-40 (inch screw)

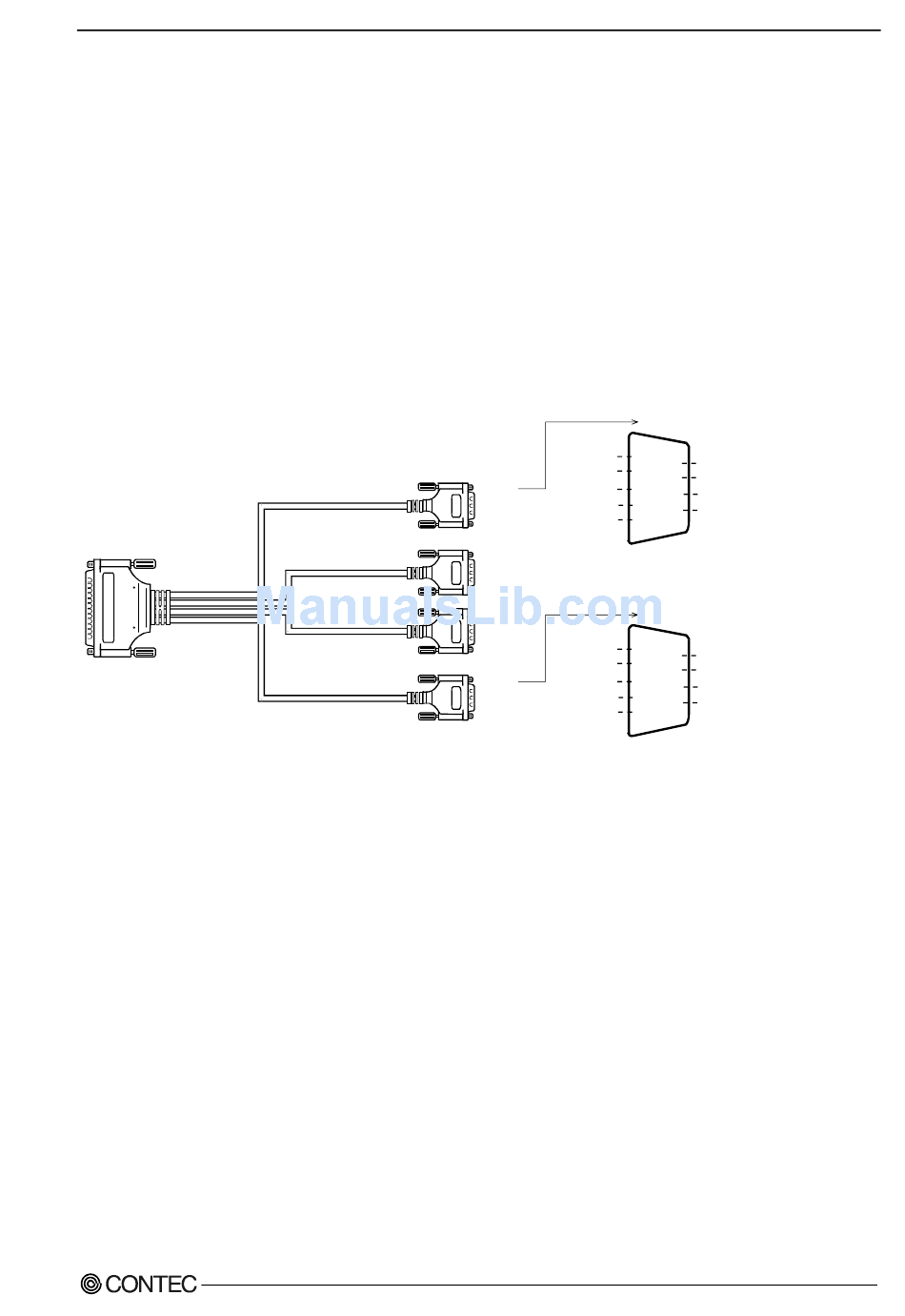

Figure 3.3. Specification of "PCE37/9PS"
Connection conversion cable (Option)
Connection Conversion Cable (37M→9M x 4, 250mm)
Cable (Option)
RS-232C Straight Cable with D-SUB9P (1.8m)
RS-232C Cross Cable with D-SUB9P (1.8m)
GCOM-2C2-PCI, GCOM-4C2-PCI, GCOM-8C2-PCI
- Cable
9-conductor shielded cable
Cable length : 250mm
Conductor size : AWG#28
- Connector used
9-pin D-SUB, male connector
Thumb screw : UNC#4-40(inch screw)
- Applicable connectors
17JE-13090-02(D8C) (mfd. by DDK, Female)
CH1
SG 1
5
DTR 1
4
TxD 1
3
CH1
RxD 1
2
DCD 1
1
.
CH2
.
.
CH3 CH4
SG 4
5
DTR 4
4
TxD 4
3
CH4
RxD 4
2
DCD 4
1
PCE37/9PS
RSS-9M/F
RSC-9F
3. External Connection
9
RI 1
8
CTS 1
7
RTS 1
6
DSR 1
9
RI 4
8
CTS 4
7
RTS 4
6
DSR 4
