Reference Manual
Industrial Mainboard
GMB-AQ47000
CONTENTS
Introduction .................................................................. 4
Safety Precautions .................................................... 10
Product Nomenclature and Function ............... 16
BIOS Setup .................................................................. 35
Appendix ...................................................................... 62
List of Optional Products ....................................... 79
Customer Support and Inquiry ............................ 81
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contec GMB-AQ47000
Summary of Contents for Contec GMB-AQ47000
- Page 1 Reference Manual Industrial Mainboard GMB-AQ47000 CONTENTS Introduction ..............4 Safety Precautions ............ 10 Product Nomenclature and Function ....16 BIOS Setup ..............35 Appendix ..............62 List of Optional Products ........79 Customer Support and Inquiry ......81...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............4 1. Related Manuals ..............................5 2. About the Product ..............................6 3. Features ..................................7 4. Supported OS ................................8 5. Product Configuration List ..........................9 Safety Precautions ............10 1. Safety Information ............................... 11 2. Handling Precautions ............................12 1. - Page 3 Table of Contents 2. Using Setup ..............................37 3. Getting Help ..............................37 4. In Case of Problems ............................. 37 5. A Final Note About Setup .......................... 37 2. Main Menu ................................38 1. Setup Items ..............................39 3. Main ..................................40 4.
-
Page 4: Introduction
Introduction This section provides necessary information of the product such as the outline, bundled items and manuals before actual use. - 4 -... -
Page 5: Related Manuals
— — Introduction GMB-AQ47000 Reference Manual 1. Related Manuals The manuals related to the product are listed below. Read them as necessary along with this document. ◆ Must Read the Following Manuals Name Purpose Contents How to get Read this when operating... -
Page 6: About The Product

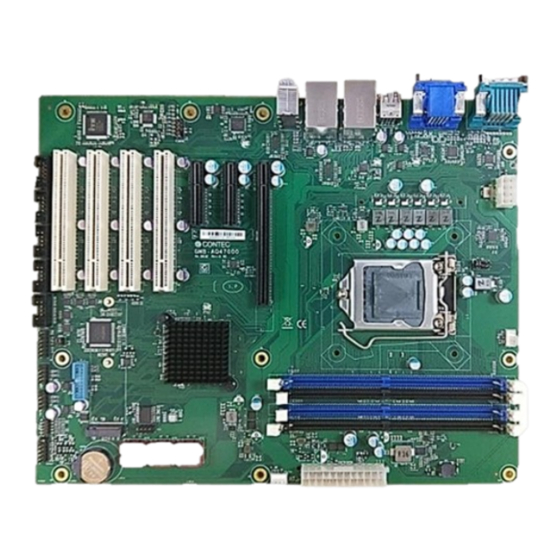

This product is a ATX form factor industrial mainboard which based on Intel Core™ Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-AQ47000 adopts four DDR4 UDIMM sockets and supports up to 128GB memory. Desktop SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-AQ47000 is our Comet Lake-S platform on industrial motherboard product line. -
Page 7: Features
— — Introduction GMB-AQ47000 Reference Manual 3. Features ◼ Intel ® Comet Lake-S Platform This product is equipped with the 10 generation Intel Core™ processors. ® Adopting embedded-type CPU contributes to a stable supply. Following CPUs are recommended for customer reference;... -
Page 8: Supported Os
— — Introduction GMB-AQ47000 Reference Manual 4. Supported OS Windows®10 IoT Enterprise LTSC 2019 64 bit - 8 -... -
Page 9: Product Configuration List
Screw for fixing M.2 M key card (M3x6) with Standoff *1 The configuration and parts of this product are shown below. *2 The user manual for this product is available as a PDF file through CONTEC’s website. Production Configuration Drawings... -
Page 10: Safety Precautions
Safety Precautions Understand the following definitions and precautions to use the product safely. Never fail to read them before using the product. - 10 -... -
Page 11: Safety Information
— — Safety Precautions GMB-AQ47000 Reference Manual 1. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely. -
Page 12: Handling Precautions
— — Safety Precautions GMB-AQ47000 Reference Manual 2. Handling Precautions WARNING Always check that the power supply is turned off before connecting or disconnecting power ⚫ cables. Do not modify the product. ⚫ Always turn off the power before inserting or removing circuit boards or cables. - Page 13 To prevent corruption of files, always shutdown the OS before turning off this product. ⚫ CONTEC reserves the rOKight to refuse to service a product modified by the user. ⚫ In the event of failure or abnormality (foul smells or excessive heat generation), unplug the ⚫...
-
Page 14: Fcc Part 15 Class A Notice
— — Safety Precautions GMB-AQ47000 Reference Manual 1. FCC PART 15 Class A Notice NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 15: Security Warning
— — Safety Precautions GMB-AQ47000 Reference Manual 3. Security Warning When connecting to the network, be aware of security-related problems. See the examples of Security measures below and set up the product properly along with the network devices. 1. Information security risks Unauthorized access from the outside through a network could cause the system halt, data ⚫... -
Page 16: Product Nomenclature And Function
Product Nomenclature and Function This section describes product component names and their functions, pin assignment of each connector. - 16 -... -
Page 17: Product Overview
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 1. Product Overview connectors of the product are shown in the picture below. ◆ Top View - 17 -... -
Page 18: Jumper List
GMB-AQ47000 Reference Manual 2. Jumper List For users to customize GMB-AQ47000 features. In the following sections, short means covering a jumper cap over jumper pins; Open or N/C (not connected) means removing a jumper cap from jumper pins. Users can refer to below Top view picture and tables for jumper positions, functions, and signal description. - Page 19 — — Product Nomenclature and Function GMB-AQ47000 Reference Manual Ref. Connector Function AUDJ1 3.5mm Audio Jack ( Mic in + Line in + Line out ) LANUSB_2 RJ45 + USB3.1 Gen2 Connector ( Onboard LAN B ) LANUSB_1 RJ45 + USB3.1 Gen2 Connector ( Onboard LAN A ) USB_1 2 x USB2.0 Connector ( Type A )
- Page 20 — — Product Nomenclature and Function GMB-AQ47000 Reference Manual PCI1 PCI Slot AD_28 / int A F_AUDIO_1 Front panel Audio Connector ( Pitch 2.54mm ) PCIE 2,PCIE 3 PCI Express 3.0 (x4) Slots PCIE 1 PCI Express 3.0 (x16)Slot - 20 -...
-
Page 21: Connector List
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 3. Connector List - 21 -... -
Page 22: Atx Power Connector 8P (Atxconn_2)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 1. ATX Power Connector 8P (ATXCONN_2) PIN No. Signal Description PIN No. Signal Description +12V +12V +12V +12V 2. ATX Power Connector 24P (ATXCONN_3) PIN No. Signal Description PIN No. Signal Description 3.3V... -
Page 23: Front Panel Pin Hdr (F_Panel_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual -12V ATX_PSON# PG_ATX 5V_SB 3. Front Panel Pin HDR (F_PANEL_1) PIN No. Signal Description PIN No. Signal Description SATA_LED+ PWR LED + SATA_LED- PWR LED - PWR_SW RST_SW - 23 -... -
Page 24: Cpu Fan Connector (Cpu_Fan_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 4. CPU FAN Connector (CPU_FAN_1) PIN No. Signal Description +12V Sense Control 5. System FAN Connector (SYS_FAN_1) PIN No. Signal Description +12V Sense Control - 24 -... -
Page 25: Spi Rom Programming Pin (Spi_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 6. SPI ROM Programming Pin (SPI_1) PIN No. Signal Description PIN No. Signal Description 3.3V_SPI SPI_CS# SPI_CLK SPI_CS0 SPI_CSI 7. LPC Interface Connector (LPC_1) PIN No. Signal Description PIN No. Signal Description... -
Page 26: Bit Gpio Pin Hdr (Gpio_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 8. 8-bit GPIO Pin HDR (GPIO_1) PIN No. Signal Description PIN No. Signal Description DIO_GP1 DIO_GP2 DIO_GP3 DIO_GP4 DIO_GP5 DIO_GP6 DIO_GP7 DIO_GP8 5V_GPIO 9. USB 2.0 Pin HDR (USB_2,USB_3) PIN No. -
Page 27: Front Panel Audio Connector (F_Audio_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 10. Front Panel Audio Connector (F_AUDIO_1) PIN No. Signal Description PIN No. Signal Description MIC2_L AGND MIC2_R PRESENCE# LINE2_R B_MIC2-JD AGND LINE2_L B_LINE2-JD 11. SATA 3.0 Connector (SATA1~SATA6) Note: SATA5 Port: Support Gen2 & Gen3 speed only PIN No. -
Page 28: M Key Socket (M2_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual M.2 M Key Socket (M2_1) M.2 M Key Socket (PCIe 3.0(x4) Signal) The board has one mechanical connector key M, accepting type 2242 or 2280 of M.2 modules (H- 8.5mm/ double sided) 13. -
Page 29: Com1 Connector (Com_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual SIN(n) RTS(n) TXD(n) CTS(n) DTR(n) RI(n) 14. COM1 Connector (COM_1) COM1 (RS-232/422/485) The port function of COM1 is based on BIOS setting. Signal Description PIN No. RS-232C RS-422 RS-485 TX(-) Data(-) -
Page 30: Display Port Connector (Dp)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 15. Display Port Connector (DP) PIN No. Signal Description PIN No. Signal Description ML_Lane 0（+） ML_Lane 0（-） ML_Lane 1（+） ML_Lane 1（-） ML_Lane 2（+） ML_Lane 2（-） ML_Lane 3（+） ML_Lane 3（-） DP INTEROP (GND) AUX_CH（+）... -
Page 31: 5Mm Audio Jack (Com_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual 16. 3.5mm Audio Jack (COM_1) 17. VGA Port Connector (VGA_1) PIN No. Signal Description PIN No. Signal Description PIN No. Signal Description VGA_RED VGA_GREEN DDC_DAT VGA_BLUE VGA_HSYNC - 31 -... -
Page 32: Hdmi Connector (Hdmi_1)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual +5V_VGA VGA_VSYNC DDC_CLK 18. HDMI Connector (HDMI_1) PIN No. Signal Description PIN No. Signal Description HDMI1 DATA2(+) HDMI1 DATA2(-) HDMI1 DATA1(+) HDMI1 DATA1(-) HDMI1 DATA0(+) HDMI1 DATA0(-) HDMI1 CLK(+) HDMI1 CLK(-) -
Page 33: Rj45+Usb3.2 Connector (Lanusb_1~2)
— — Product Nomenclature and Function GMB-AQ47000 Reference Manual PIN No. Signal Description +5V / +5 STBY USB D- USB D+ 20. RJ45+USB3.2 Connector (LANUSB_1~2) RJ45 Connector RJ45 LEDs for display of network status: PIN No. Signal Description TX1+ TX1-... - Page 34 — — Product Nomenclature and Function GMB-AQ47000 Reference Manual TX4+ TX4- PIN No. Signal Description PIN No. Signal Description USB RX- USB D- USB RX+ USB D+ USB TX- USB TX+ - 34 -...
-
Page 35: Bios Setup
BIOS Setup This section describes AMI’s Setup program built into the FLASH ROM BIOS. - 35 -... -
Page 36: Introduction
— — BIOS Setup GMB-AQ47000 Reference Manual 1. Introduction The BIOS setup program allows users to modify the basic system configuration. In this following chapter will describe how to access the BIOS setup program and the configuration options that may be changed. -
Page 37: Using Setup
— — BIOS Setup GMB-AQ47000 Reference Manual 2. Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. -
Page 38: Main Menu
— — BIOS Setup GMB-AQ47000 Reference Manual 2. Main Menu Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter>... -
Page 39: Setup Items
— — BIOS Setup GMB-AQ47000 Reference Manual 1. Setup Items The selectable tabs are as follows. Main Record some basic hardware configurations in your computer and set the system clock. Advanced configure your CPU and other system devices for basic operation through the following sub-menus. -
Page 40: Main
— — BIOS Setup GMB-AQ47000 Reference Manual 3. Main View the basic system structure. The following items are displayed. Indication item of the main menu Item Indication Example Explanation Project Name GMB-AQ47000 Displays the BIOS name. Project Version AQ470T 0.00 x64 Displays the BIOS version. -
Page 41: Advanced
— — BIOS Setup GMB-AQ47000 Reference Manual 4. Advanced This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. - 41 -... -
Page 42: Cpu Configuration
— — BIOS Setup GMB-AQ47000 Reference Manual 1. CPU Configuration CPU Configuration Item Options Description When enabled, a VMM can Enabled utilize the additional hardware Intel (VMX) Virtualization Technology Disabled capabilities provided by Vander pool Technology. Number of cores to enable in Active Processor Cores each processor packages. -
Page 43: Pch-Fw Configuration
— — BIOS Setup GMB-AQ47000 Reference Manual 2. PCH-FW Configuration PCH-FW Configuration Item Options Description When Disabled Me will be put into ME Temporarily Enabled ME State Disabled Disabled Mode. Item Options Description Enable /Disable Intel® manageability features. Note: This option disables/enables manageability features... -
Page 44: Trusted Computing
— — BIOS Setup GMB-AQ47000 Reference Manual 3. Trusted Computing Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Enable Security Device Support O.S. will not show Security Device. TCG EFI protocol Disable and INT1A interface will not be available. - Page 45 — — BIOS Setup GMB-AQ47000 Reference Manual Item Options Description 1_ 2 Select to tell O.S to support PPI Spec version 1.2 or 1.3 Physical Presence Spec Version 1 .3 . Note: some HCK tests might not support 1.3. TPM 1.2 will restrict support to TPM 1.2 devices, TPM_1.2...
-
Page 46: Acpi Settings
— — BIOS Setup GMB-AQ47000 Reference Manual 4. ACPI Settings ACPI Settings Item Options Description Enabled Enable ACPI Auto Configuration Do not change this setting. Disabled Enables or Disables System ability to Hibernate Enabled Enable Hibernation (OS/S4 Sleep State). This option may not be Disabled effective with some operating systems. -
Page 47: Smart Settings
— — BIOS Setup GMB-AQ47000 Reference Manual 5. SMART Settings SMART Settings Item Options Description Enabled SMART Self Test Run SMART self test on all HDDs during POST. Disabled - 47 -... -
Page 48: Super Io Configuration
— — BIOS Setup GMB-AQ47000 Reference Manual 6. Super IO Configuration Super IO Configuration Item Options Description Serial Port 1 Configuration Refer to Serial Port 1 Serial Port 2 Configuration Refer to Serial Port 2 Serial Port 3 Configuration Refer to Serial Port 3... - Page 49 — — BIOS Setup GMB-AQ47000 Reference Manual Item Options Description Enabled Serial Port Enable or Disable Serial Port 4 Disabled Serial Port 5 Configuration Item Options Description Enabled Serial Port Enable or Disable Serial Port 5 Disabled Serial Port 6 Configuration...
-
Page 50: Hardware Monitor
— — BIOS Setup GMB-AQ47000 Reference Manual 7. Hardware Monitor View hardware monitor information such as the CPU temperature. Smart FAN Mode Configuration Item Options Description CPU FAN Mode PWM Manual Mode Smart Fan Mode select Thermal Cruise Mode SYS FAN Mode... -
Page 51: Usb Configuration
— — BIOS Setup GMB-AQ47000 Reference Manual 8. USB Configuration USB Configuration Item Options Description Enables Legacy USB Support. AUTO option: Disables legacy support if no USB device Enabled Legacy USB Support Are connected. Disabled Disable option: will keep USB devices Auto available only for EFI applications. - Page 52 — — BIOS Setup GMB-AQ47000 Reference Manual Item Options Description Enabled : On standby state USB Power provide. Enabled USB Standby Power Disabled: On standby state USB Disabled Power does not provide. - 52 -...
-
Page 53: Chipset
— — BIOS Setup GMB-AQ47000 Reference Manual 5. Chipset 1. System Agent (SA) Configuration System Agent (SA) Configuration Graphic Configuration Item Options Description Auto Select which of IGFX/PEG/PCI graphics device IGFX Primary Display should be primary display or select SG for... - Page 54 — — BIOS Setup GMB-AQ47000 Reference Manual Item Options Description Select DVMT 5.0 Pre-allocated( Fixed) Graphics DVMT Pre-allocated memory size used by the internal Graphics Device. 32M/F7 128M Select DVMT 5.0 total Graphics memory size the DVMT Total Gfx Mem...
-
Page 55: Pch-Io Configuration
— — BIOS Setup GMB-AQ47000 Reference Manual 2. PCH-IO Configuration SATA and RST Configuration Item Options Description Enabled SATA Configuration(S) Enable/Disable SATA Device. Disabled AHCI Intel RST Premium with SATA Mode Selection Determines how SATA controller(s) operate. intel OPtane system... - Page 56 — — BIOS Setup GMB-AQ47000 Reference Manual Item Options Description Enabled Wake on LAN Enable/Disable integrated LAN to wake the system Disabled Enabled Wake on RI (COM1) Enable/Disable RI to wake the system Disabled Enabled Wake on RI (COM2~6) Enable/Disable RI to wake the system...
-
Page 57: Security
— — BIOS Setup GMB-AQ47000 Reference Manual 6. Security Secure Boot Item Options Description Secure Boot feature is Active if Secure Boot is Enabled, Enabled Secure Boot Platform Key(PK) is enrolled and the System is in User Disabled mode. The mode change requires platform reset Secure Boot mode options: Standard or Custom. -
Page 58: Boot
— — BIOS Setup GMB-AQ47000 Reference Manual 7.Boot Boot Item Options Description Number of seconds to wait for setup activation key. Setup Prompt Timeout 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard Numlock state Enabled Quiet Boot Enables or disables Quite boot option... -
Page 59: Save And Exit
— — BIOS Setup GMB-AQ47000 Reference Manual 7.Save and Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. -
Page 60: Event Logs
— — BIOS Setup GMB-AQ47000 Reference Manual 8.Event Logs Change Smbios Even Log Settings Item Options Description Enabled Change this to enable or disable all feature of Smbios Event Log smbios event logging during boot. Disabled Choose options for erasing smbios event Log... - Page 61 — — BIOS Setup GMB-AQ47000 Reference Manual Item Options Description Enable or disable the Converting of EFI Status Convert EFI Status Code to Disabled Codes to Standard smbios Types ( Not all may be Standard smbios type Enabled translated )
-
Page 62: Appendix
Appendix This section lists the specifications and components suggestion, block diagram, driver installation, and mechanical drawing. - 62 -... -
Page 63: System Reference
— — Appendix GMB-AQ47000 Reference Manual 1.System Reference 1. Specifications Model Name GMB-AQ47000 Intel® 10th Gen. Comet Lake-S Core™ Processors (LGA1200) Chipset Intel® Q470E Express Chipset BIOS AMI UEFI BIOS OS Driver Support Windows® 10 IoT Enterprise LTSC 2019 64 bit... - Page 64 — — Appendix GMB-AQ47000 Reference Manual Power Supply*¹ ATX 24pin power connector , 12V 8pin power connector Operation Temperature*²: 0 to 60°C Environmental Storage Temperature: -40 to 80°C Relative Humidity: 5 to 95% non-condensing Certificate CE / FCC Class B, RoHS 2.0...
- Page 65 — — Appendix GMB-AQ47000 Reference Manual 2) Maximum output current: Select the PSU specification that is larger than the full load of the system while consider possible future upgrades and efficiencies. (Unmatched maximum load may cause power supply overload or overheating conditions)
-
Page 66: Block Diagram
— — Appendix GMB-AQ47000 Reference Manual 2.Block Diagram M.2 key M PCIe 3.0(x4) Signal - 66 -... -
Page 67: Dimension
— — Appendix GMB-AQ47000 Reference Manual 3. Dimension - 67 -... -
Page 68: Installation
— — Appendix GMB-AQ47000 Reference Manual 4.Installation 1. CPU Installation 1. Make sure PC and all other peripheral devices are shut down. 2. Disconnect all power cords and cables. 3. Open the load plate then remove the plastic cap as below picture 1 and 2 showed. -
Page 69: Motherboard Installation
— — Appendix GMB-AQ47000 Reference Manual 2.Motherboard Installation Some components are very close to the mounting holes. Please take precautionary measure to avoid damaging these components when installing the motherboard. 3.Memory Installation 1. The DDR4 memory sockets are divided into A and B two channels, each has two sockets showed as below. -
Page 70: Serial I/O Address And Register Function
— — Appendix GMB-AQ47000 Reference Manual 5.Serial I/O Address and Register Function The following table lists the I/O addresses in case of SERIAL A. I/O Port Addresses I/O address DLAB Read/Write Register 03F8H Transmitter holding register Receiver buffer register Divisor latch register (LSB) - Page 71 — — Appendix GMB-AQ47000 Reference Manual I/O address Description IER: Interrupt Enable Register [DLAB=0] 03F9H IIR: Interrupt Identification Register 03FAH LCR: Line Control Register 03FBH - 71 -...
- Page 72 — — Appendix GMB-AQ47000 Reference Manual Description I/O address MCR: Modem Control Register 03FCH LSR: Line Status Register 03FDH MSR: Modem Status Register 03FEH SCR: Scratchpad Register This is an 8-bit, readable/writable register which is available to the 03FFH user to allow data to be saved temporarily.
- Page 73 — — Appendix GMB-AQ47000 Reference Manual Baud Rate Settings A baud rate is set by software by dividing the clock input (1.8432MHz). The baud rate in terms of hardware can be set to a maximum of 115,200 bps for SERIAL Port. The baud rates available in practice depend on the operating environment (cable, software, etc.).
-
Page 74: Watch-Dog-Timer
— — Appendix GMB-AQ47000 Reference Manual 6.Watch-Dog-Timer The watchdog timer serves as a safeguard against possible system lock-up in your industrial computer system. In most industrial environments, there are heavy equipment, generators, high- voltage power lines, or power drops that have adverse effects on your computer system. For instance, when a power drop occurs, it could cause the CPU to come to a halt state or enter into an infinite loop, resulting in a system lock-up. - Page 75 — — Appendix GMB-AQ47000 Reference Manual Example programming The following example is written in Intel8086 assembly language. ;=============== ;<WDT Initial> ;=============== ;------------------------------------------- ;Enter the extended function mode ;------------------------------------------- MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL ;---------------------------------------------- ;Select logical device WDT(number 8) ;----------------------------------------------...
- Page 76 — — Appendix GMB-AQ47000 Reference Manual MOV DX,2FH MOV AL,00H OUT DX,AL ;------------------------------------------ ;Exit the extended function mode ;------------------------------------------ MOV DX,2EH MOV AL,AAH OUT DX,AL ;=============================== ;<WDT START: counter set and a start> ;=============================== ;--------------------------------------------- ;Enter the extended function mode ;---------------------------------------------...
- Page 77 — — Appendix GMB-AQ47000 Reference Manual MOV AL,0FH ;0FH=15Sec ;---------------------------------------------------------------------------------- OUT DX,AL ;--------------------------------------- ;Exit the extended function mode ;--------------------------------------- MOV DX,2EH MOV AL,AAH OUT DX,AL ;============== ;<WDT STOP> ;============== ;----------------------------------------- ;Enter the extended function mode ;----------------------------------------- MOV DX,2EH MOV AL,87H...
- Page 78 — — Appendix GMB-AQ47000 Reference Manual MOV AL,00H ;----------------------------------- OUT DX,AL ;----------------------------------- ;Exit the extended function mode ;----------------------------------- MOV DX,2EH MOV AL,AAH OUT DX,AL CAUTION The timer’s intervals have a tolerance of ± 2 seconds. ⚫ - 78 -...
-
Page 79: List Of Optional Products
List of Optional Products This section lists optional items that can be used along with the product. - 79 -... -
Page 80: Optional Product
List of Optional Products GMB-AQ47000 Reference Manual 1. Optional Product Optional product items are as follows, please acquire them as required. Accessory Parts Name Product Code Description Visit the CONTEC website for the latest optional products. https://www.contec.com/ Download - 80 -... -
Page 81: Customer Support And Inquiry
Customer Support and Inquiry CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. - 81 -... -
Page 82: Services
— — Customer Support and Inquiry GMB-AQ47000 Reference Manual 1. Services CONTEC offers the useful information including product manuals that can be downloaded through the CONTEC website. Download https://www.contec.com/download/ You can download updated driver software, firmware, and differential manuals in several languages. Membership registration (myCONTEC) is required to use the services. - Page 83 No part of this document may be copied or reproduced in any form by any means without ⚫ prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained ⚫ in this document.
- Page 84 CONTEC CO., LTD. 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. GMB-AQ47000 Reference Manual NA08298 (LYZU741) [03302023]...
