2. Setup

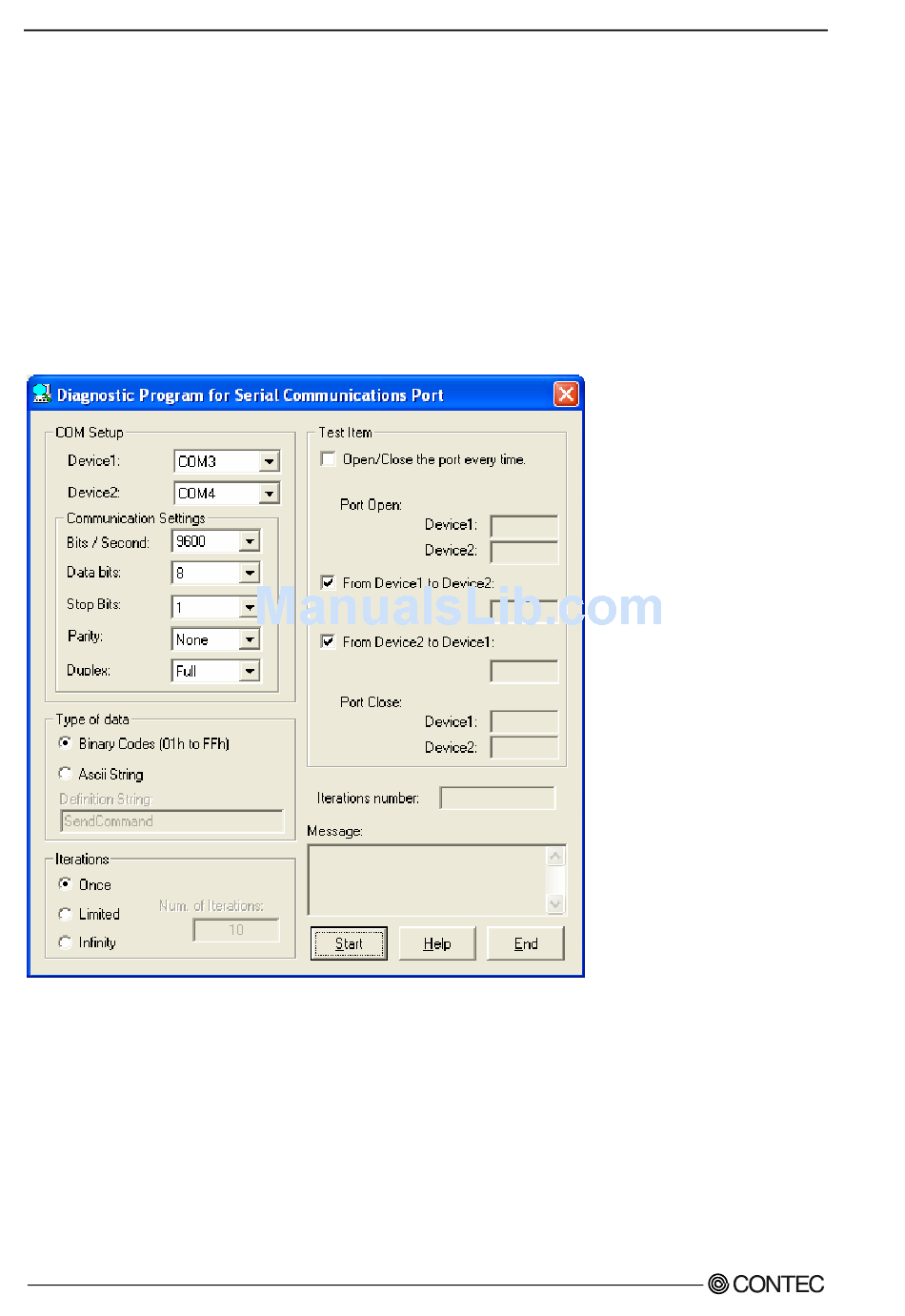

Using the Diagnosis Program

Run

DRVCOM\Utility\CommChk\CommChk.exe

Communication Settings

COM Setup: Specify the number of the COM port you wish to test.

If connecting two COM ports via a cross cable, specify the respective COM ports in

[Device1] and [Device2].

If using a loopback connector, specify the same port number in both [Device1] and

[Device2].

Communication Settings: Specify the [Bits / Second], [Data bits] and other settings you wish to use.
