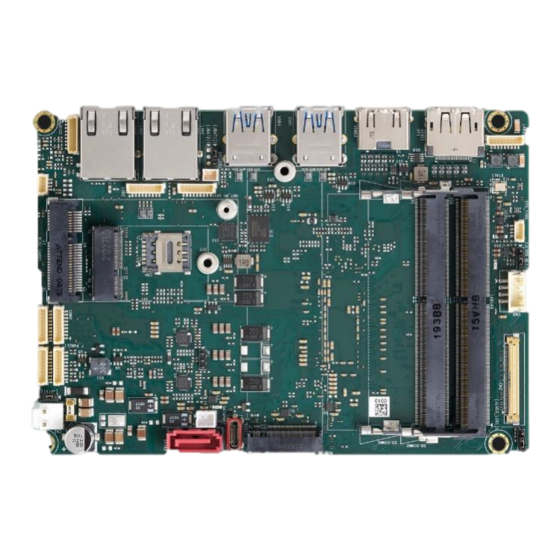

Reference Manual
Industrial Mainboard
GMB-L3TGL210/310/410
CONTENTS
Introduction .................................................................. 5
Safety Precautions .................................................... 11
Product Nomenclature and Function ............... 17
BIOS Setup .................................................................. 44
Appendix ...................................................................... 73
List of Optional Products ....................................... 91
Customer Support and Inquiry ............................ 93
Advertisement
Table of Contents
Related Manuals for Contec GMB-L3TGL210
Summary of Contents for Contec GMB-L3TGL210
- Page 1 Reference Manual Industrial Mainboard GMB-L3TGL210/310/410 CONTENTS Introduction ..............5 Safety Precautions ............ 11 Product Nomenclature and Function ....17 BIOS Setup ..............44 Appendix ..............73 List of Optional Products ........91 Customer Support and Inquiry ......93...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............5 1. Related Manuals ..............................6 2. About the Product ..............................7 3. Features ..................................8 4. Supported OS ................................9 5. Product Configuration List ..........................10 Safety Precautions ............11 1. Safety Information ............................... 12 2. Handling Precautions ............................13 1. - Page 3 Table of Contents BIOS Setup ..............44 1. Introduction ................................45 1. Starting Setup ..............................45 2. Using Setup ..............................46 3. Getting Help ..............................46 4. In Case of Problems ............................. 46 5. A Final Note About Setup .......................... 46 2.
- Page 4 Table of Contents List of Optional Products ..........91 1. Optional Product ..............................92 Customer Support and Inquiry ........93 1. Services ..................................94 - 4 -...
-
Page 5: Introduction
Introduction This section provides necessary information of the product such as the outline, bundled items and manuals before actual use. - 5 -... -
Page 6: Related Manuals
— — Introduction GMB-L3TGL210/310/410 Reference Manual 1. Related Manuals The manuals related to the product are listed below. Read them as necessary along with this document. Must Read the Following Manuals ◆ Name Purpose Contents How to get Must read this after opening... -
Page 7: About The Product
Processor Core™ i3-1115G4E / i5-1145G7E/ i7-1185G7E with Windows 10 IoT Enterprise 2021 (4 languages) supported. The industrial-grade GMB-L3TGL210/310/410, with size of 146mm x 102mm, has high computing power, triple-display capability, and various expansion slots make it well-suited for factory automation, intelligent transportation, digital signage, self-service kiosks, and medical applications. -
Page 8: Features
— — Introduction GMB-L3TGL210/310/410 Reference Manual 3. Features ◼ Intel® 11th Generation Core™ i3/i5/i7 Processor (Tiger Lake-UP3 Platform) ◼ 2x DDR4-3200 SO-DIMM, up to 64GB Supported ◼ 2x RJ-45 LAN port by 2.5GdE + 1GbE by internal (pinheaded) ◼ 1 x Full-sized Mini PCIe, 1 x M.2 2280 Key M, and 1 x M.2 2230 Key E Equipped... -
Page 9: Supported Os
— — Introduction GMB-L3TGL210/310/410 Reference Manual 4. Supported OS Windows®10 IoT Enterprise LTSC 2021 64 bit - 9 -... -
Page 10: Product Configuration List
Screw for fixing M.2 E key E/M card (M3x6) Screw for fixing Mini-PCIe card (M2x5) *1 The configuration and parts of this product are shown below. *2 The user manual for this product is available as a PDF file through CONTEC’s website. Production Configuration Drawings Motherboard... -
Page 11: Safety Precautions
Safety Precautions Understand the following definitions and precautions to use the product safely. Never fail to read them before using the product. - 11 -... -
Page 12: Safety Information
— — Safety Precautions GMB-L3TGL210/310/410 Reference Manual 1. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely. -
Page 13: Handling Precautions
— — Safety Precautions GMB-L3TGL210/310/410 Reference Manual 2. Handling Precautions WARNING Always check that the power supply is turned off before connecting or disconnecting power ⚫ cables. Do not modify the product. ⚫ Always turn off the power before inserting or removing circuit boards or cables. - Page 14 To prevent corruption of files, always shutdown the OS before turning off this product. ⚫ CONTEC reserves the right to refuse to service a product modified by the user. ⚫ In the event of failure or abnormality (foul smells or excessive heat generation), unplug the ⚫...
-
Page 15: Fcc Part 15 Class A Notice
— — Safety Precautions GMB-L3TGL210/310/410 Reference Manual 1. FCC PART 15 Class A Notice NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 16: Security Warning
— — Safety Precautions GMB-L3TGL210/310/410 Reference Manual 3. Security Warning When connecting to the network, be aware of security-related problems. See the examples of Security measures below and set up the product properly along with the network devices. 1. Information security risks Unauthorized access from the outside through a network could cause the system halt, data ⚫... -
Page 17: Product Nomenclature And Function
Product Nomenclature and Function This section describes product component names and their functions, pin assignment of each connector. - 17 -... -
Page 18: Product Overview
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 1. Product Overview connectors of the product are shown in the picture below. ◆ Top View - 18 -... -
Page 19: Jumper List
GMB-L3TGL210/310/410 Reference Manual 2. Jumper List For users to customize GMB-L3TGL210/310/410 features. In the following sections, short means covering a jumper cap over jumper pins; Open or N/C (not connected) means removing a jumper cap from jumper pins. Users can refer to below Top view picture and tables for jumper positions, functions, and signal description. -
Page 20: Connector List
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 3.Connector List - 20 -... - Page 21 — — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual Ref. Connector Function LAN2 2.5Giga LAN/ RJ45 Connector LAN1 2.5Giga LAN/ RJ45 Connector USB3 USB 3.2 Gen2/ Type A connector USB1 USB 3.2 Gen2/ Type A connector HDMI2 1st HDMI connector...
-
Page 22: Dc-In Power Connector (Cn1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 1. DC-IN Power Connector (CN1) PIN No. Signal Description DC-IN 2. LVDS_Power Connector (CN3) PIN No. Signal Description VDS_BL_VCC VDS_LCD_VCC - 22 -... -
Page 23: Sata Power Connector (Satapwr1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 3. SATA Power Connector (SATAPWR1) SATAPWR1 PIN No. Signal Description +5Vdc 4. System FAN Connector 4-Pin ( SYS_FAN1) SYS_FAN1 PIN No. Signal Description +12Vdc FAN_SPEED_OUT FAN_PWM - 23 -... -
Page 24: Front Panel Pin Hdr /8P (F_Panel1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 5. Front Panel Pin HDR /8P (F_PANEL1) PIN No. Signal Description PWR LED (+) PWR LED (-) HDDLED(+) HDDLED(-) RST_SW PWRBTN# - 24 -... -
Page 25: Audio Connector 9-Pin (Audio1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 6. Audio Connector 9-Pin (AUDIO1) PIN No. Signal Description AGND LIN2_OUT_R LIN2_OUT_L A_LINE1_JD_R AGND MIC1_R MIC1_L A_MIC1_JD AGND - 25 -... -
Page 26: Audio Output Connector With Amplifier 4P ( Amp1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 7. Audio Output Connector with Amplifier 4P ( AMP1) AMP1 PIN No. Signal Description AMP_OUT_R (-) AMP_OUT_R (+) AMP_OUT_L (+) AMP_OUT_L (-) - 26 -... -
Page 27: Usb2.0 Connector 9-Pin (Usb2)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 8. USB2.0 Connector 9-Pin (USB2) USB2 PIN No. Signal Description 5V_USB5 USB5#_C USB5_C 5V_USB5 USB6#_C USB6_C - 27 -... -
Page 28: Spi Connector 9-Pin (Spi 1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 9. SPI Connector 9-Pin (SPI 1) SPI 1 PIN No. Signal Description +3.3V_SPI SPIROM_SCK SPIROM_SI SPIROM_SO SPIROM_CS# N.C: No Connection - 28 -... -
Page 29: Lvds Connector/ 40-Pin (Cn2)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual LVDS Connector/ 40-Pin (CN2) PIN No. Signal Description PIN No. Signal Description LVDS_B_TXL-3_CN LVDS_B_TXL+3_CN LVDS_A_TXL-3_CN LVDS_A_TXL+3_CN LVDS_B_TXL-2_CN LVDS_B_TXL+2_CN LVDS_A_TXL-2_CN LVDS_A_TXL+2_CN LVDS_DET#_CN LVDS_A_TXL-1_CN LVDS_B_TXL-1_CN LVDS_A_TXL+1_CN LVDS_B_TXL+1_CN LVDS_A_TXL-0_CN LVDS_BL_EN_CN LVDS_A_TXL+0_CN LVDS_BL_PWM_CN Note: LVDS_SPC0... -
Page 30: Bit Gpio Pin Header 9-Pin (Gpio1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 11. 4-bit GPIO Pin header 9-pin (GPIO1) GPIO1 PIN No. Signal Description DIO_CN_1 DIO_CN_2 DIO_CN_3 DIO_CN_4 +5V_SB +3V3 +3V3 The General-Purpose Input/Output (GPIO) pin header - 30 -... -
Page 31: Serial Port Rs-232/422/485 /9P (Com1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 12. Serial Port RS-232/422/485 /9P (COM1) Signal Description PIN No. RS 232 RS 422 RS 485 DCD 1 TX(-) Data(-) RX 1 TX(+) Data(+) TX 1 RX(+) DTR 1 RX(-) DSR 1... -
Page 32: Serial Port Rs-232 9-Pin (Com2)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 13. Serial Port RS-232 9-Pin (COM2) PIN No. Signal Description DCD 2 RX 2 TX 2 DTR 2 DSR 2 RTS 2 CTS 2 N.C: No Connection RI 2 - 32 -... -
Page 33: Serial Port Rs-232 9-Pin (Com3)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 14. Serial Port RS-232 9-Pin (COM3) COM3 Solder Side PIN No. Signal Description DCD 3 RX 3 Right Angle) (Type: TX 3 DTR 3 DSR 3 RTS 3 CTS 3 RI 3... -
Page 34: Rtc Battery Connector (Battery1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 15. RTC Battery Connector (BATTERY1) PIN No. Signal Description +3V DC (+) GND (-) CAUTION The connector of RTC Battery has (+) and (-) polarities. ⚫ - 34 -... -
Page 35: Nano Sim Socket (Cn4)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 16. Nano SIM Socket (CN4) PIN No. Signal Description UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA CAUTION [ Figure-B ] [ Figure-A ] 1) Slide the socket lid (Unlock ) as Figure-A 2) Open the socket lid, place the card into the socket... -
Page 36: Sata Connector (Sata 1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 17. SATA Connector (SATA 1) SATA 1 SATA1 Two SATA 3.1 Gen2 (10 Gb/s)Port . PIN No. Signal Description SATA_TXP SATA_TXN SATA_RXN SATA_RXP - 36 -... -
Page 37: E Key Socket (M2_2)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 18. M.2 E Key Socket (M2_2) M2_2 M.2 / E Key H= 4.2mm 2230 Screw Size Thread Size :M3 Total length: 3mm Thread length: 2mm Head diameter: 4mm M.2 E Key Socket (PCIe + USB Signal) The board has one mechanical connector key E, accepting type 2230 of M.2 modules ( H-4.2mm) -
Page 38: Mini Card Socket (Mini_Card1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 20. Mini Card Socket (MINI_CARD1) MINI_CARD1 MINI CARD H= 9.9mm Full-Mini Screw Size Thread Size: M2 Thread Pitch: 0.4mm Thread length: 4mm Head diameter: 4mm Mini Card Socket (PCIe + USB Signal ) The board has one mechanical connector Mini card, accepting full-sized modules. -
Page 39: Usb Connector (Usb1&Usb3)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 21. USB Connector (USB1&USB3) USB 1 USB 3 USB1,USB3 USB3.2 Gen2 Type A PIN No. Signal Description PIN No. Signal Description USB RX- USB RX+ USB D- USB D+ USB TX-... -
Page 40: 5Giga Lan Rj-45 Port (Lan1&Lan2)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 22. 2.5Giga LAN RJ-45 Port (LAN1&LAN2) LAN 1 LAN 2 RJ45 Connector The Gigabit Ethernet LAN port provides internet connection at up to 2.5 Gbps speed .the following describes the states of the LAN port LEDs... -
Page 41: Hdmi Port (Hdmi 2)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual 23. HDMI Port (HDMI 2) HDMI 2 PIN No. Signal Description PIN No. Signal Description HDMI1 DATA2(+) HDMI1 DATA2(-) HDMI1 DATA1(+) HDMI1 DATA1(-) HDMI1 DATA0(+) HDMI1 DATA0(-) HDMI1 CLK(+) HDMI1 CLK(-) -
Page 42: Display Port (Dp1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual Display Port (DP1) DP 1 PIN No. Signal Description PIN No. Signal Description ML_Lane 0（+） ML_Lane 0（-） ML_Lane 1（+） ML_Lane 1（-） ML_Lane 2（+） ML_Lane 2（-） ML_Lane 3（+） ML_Lane 3（-） AUX_CH（+） AUX_CH（-）... -
Page 43: Usb Type C Display Port (Typec_Dp1)
— — Product Nomenclature and Function GMB-L3TGL210/310/410 Reference Manual USB Type C Display Port (TYPEC_DP1) TYPEC_DP 1 PIN No. Signal Description PIN No. Signal Description TX1+ RX1+ TX1- RX1- VBUS VBUS AUX_C（-） AUX_C（+） VBUS VBUS RX2- TX2- RX2+ TX2+ - 43 -... -
Page 44: Bios Setup
BIOS Setup This section describes AMI’s Setup program built into the FLASH ROM BIOS. - 44 -... -
Page 45: Introduction
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 1. Introduction The BIOS setup program allows users to modify the basic system configuration. In this following chapter will describe how to access the BIOS setup program and the configuration options that may be changed. -
Page 46: Using Setup
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 2. Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. -
Page 47: Main Menu
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 2. Main Menu Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter>... -
Page 48: Setup Items
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 1. Setup Items The selectable tabs are as follows. Main Record some basic hardware configurations in your computer and set the system clock. Advanced configure your CPU and other system devices for basic operation through the following sub-menus. -
Page 49: Main
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 3. Main View the basic system structure. The following items are displayed. Indication item of the main menu Item Indication Example Explanation Project Version L3TGL 0.30 x64 Displays the BIOS version. Build Date and Time 04/19/2023 Displays the BIOS creation date and time. -
Page 50: Advanced
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 4. Advanced This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. - 50 -... -
Page 51: Cpu Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 1. CPU Configuration CPU Configuration Item Options Description When enabled, a VMM can utilize the Disabled Intel (VMX) Virtualization additional hardware capabilities Technology Enabled provided by vanderpool technology. Number of cores to enable in each... -
Page 52: Pch-Fw Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 2. PCH-FW Configuration PCH-FW Configuration Item Options Description Disabled When Disabled ME will be put into ME ME State Enabled temporarily disabled mode. Disabled When Disabled ME will not be unconfigured on ME Unconfig on RTC Clear Enabled RTC Clear. - Page 53 — — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description Selects TPM device: PTT or dTPM dTPM PTT- Enables PTT in SkuMgr dTPM1.2 – Disables TPM Device Selection PTT I SkuMgr Warning! PTT/dTPM will be disabled and all data will be lost.
-
Page 54: Amt Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 3. AMT Configuration AMT Configuration Item Options Description Disabled USB Provisioning of AMT Enable/Disable of AMT USB Provisioning. Enabled Disabled MAC Pass Through Enable/Disable MAC Pass Through Function. Enabled CIRA Configuration ⚫ Item... - Page 55 — — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description Change Source Erase module behavior: Simulated Simulated: performs SE flow without erasing Source Erase Mode Real Real: Erase SSD Disabled Force Source Erase Force Source Erase on next boot Enabled OEM flags Settings: Disabled ⚫...
-
Page 56: Trusted Computing
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 4. Trusted Computing Security Device Support Item Options Description Enables or Disables BIOS support for security device. Disable Security Device Support O.S. will not show Security Device. TCG EFI protocol Enable and INT1A interface will not be available. - Page 57 — — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description not found.TPM 1.2 Deices will be enumerated. - 57 -...
-
Page 58: Acpi Settings
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 5. ACPI Settings ACPI Settings Item Options Description Disabled Enables Disables BIOS ACPI auto Enable ACPI Auto Configuration Enabled configuration. - 58 -... -
Page 59: Smart Settings
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 6. SMART Settings SMART Self-Test Item Options Description Disabled SMART Self Test Run SMART Self-Test on all HDs during POST. Enabled - 59 -... -
Page 60: Super Io Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 7. Super IO Configuration Super IO Configuration Item Options Description Serial Port 1 Configuration Refer to Serial Port 1 Serial Port 2 Configuration Refer to Serial Port 2 Serial Port 3 Configuration Refer to Serial Port 3... - Page 61 — — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description internal termination resistor Disabled SLEW 250 Kbps SLEW 250 Kbps setting Enabled Disabled DIR1/2 signal Inverts DIR1/2 signal Inverts Enabled Serial Port 2 Configuration Item Options Description Disabled Serial Port Enable or Disable Serial Port (COM).
-
Page 62: H/W Monitor
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 8. H/W Monitor View hardware monitor information such as the CPU temperature. Smart Fan Configuration Item Options Description General-purpose I/O Thermal cruise mode Digital I/O Pin 1 Input output selected PWM Manual Mode... -
Page 63: Usb Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 9. USB Configuration USB Configuration Item Options Description Enable Legacy USB support. Enabled Auto option disables legacy support if no USB Legacy USB Support devices are connected. Disable option will Disabled keep USB devices available only for EFI Auto applications. -
Page 64: Network Stack Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description Enabled: on standby state USB power provide Disabled USB Standby Power Disabled: on standby state USB power does Enabled not provide. 10. Network Stack Configuration Network stack: Disabled Network stack: Enabled... -
Page 65: Nvme Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 11. NVMe Configuration NVMe Configuration : (When Device installation) - 65 -... -
Page 66: Chipset
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 5. Chipset System Agent (SA) Configuration 1. System Agent (SA) Configuration Graphics Configuration Item Options Description Auto Select which of IGFX/PEG/PCI graphic IGFX Primary Display device should be primary display or select SG for switchable Gfx. - Page 67 — — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description Auto Keep IGFX enabled based on the setup Internal Graphics options GTT Size Select the GTT size 128MB Select the aperture size 256MB Note: above 4GB MMIO BIOS assignment Aperture Size...
-
Page 68: Pch-Io Configuration
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual Item Options Description 800 x 600 Single Channel 18bit 1024 x 768 Single Channel 18bit 1024 x 768 Single Channel 24bit 1280 x 768 Single Channel 18bit 1280 x 800 Single Channel 18bit... - Page 69 — — BIOS Setup GMB-L3TGL210/310/410 Reference Manual SATA and RST Configuration Item Options Description Enabled SATA Controller(s) Enable/ Disable SATA Device Disabled SATA Mode Selection AHCI Determines how SATA controllers operate HD Audio Configuration Item Options Description Control Detection of the HD-Audio device.
-
Page 70: Security
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 6. Security Secure Boot Item Options Description Secure Boot feature is Active if Secure Boot is Enabled, Enabled Secure Boot Platform Key(PK) is enrolled and the System is in Disabled User mode. The mode change requires platform reset Secure Boot mode options: Standard or Custom. -
Page 71: Boot
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 7.Boot Boot Item Options Description Number of seconds to wait for setup Setup Prompt Timeout activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard Numlock state Enabled Quiet Boot Enables or disables quite boot option... -
Page 72: Save And Exit
— — BIOS Setup GMB-L3TGL210/310/410 Reference Manual 7.Save and Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. -
Page 73: Appendix
Appendix This section lists the specifications and components suggestion, block diagram, driver installation, and mechanical drawing. - 73 -... -
Page 74: System Reference
— — Appendix GMB-L3TGL210/310/410 Reference Manual 1. System Reference 1. Specifications Model Name GMB-L3TGL210-0LN GMB-L3TGL310-0LN GMB-L3TGL410-0LN Intel® Tiger Lake-UP3 Gen. Core™ Processor i3-1115G4E i5-1145G7E i7-1185G7E Intel® UHD Graphics for Graphic Controller Intel® Iris® Xe Graphics 11th Gen Intel® Processors Chipset... - Page 75 — — Appendix GMB-L3TGL210/310/410 Reference Manual On board TPM2.0 Software programmable, 1 sec. ~ 255 sec. Hardware CPU temperature and power voltage monitoring Monitoring Power 12-24 VDC (± 10%) ; ATX /AT Mode by jumper setting Operation Temperature: 0~60° C (with 0.7m/s airflow) Environmental Storage Temperature: -10 to 70°...
-
Page 76: Block Diagram
— — Appendix GMB-L3TGL210/310/410 Reference Manual 2. Block Diagram - 76 -... -
Page 77: Dimension
— — Appendix GMB-L3TGL210/310/410 Reference Manual 3. Dimension - 77 -... -
Page 78: Installation
— — Appendix GMB-L3TGL210/310/410 Reference Manual 4. Installation 1. Mainboard Installation Some components are very close to the mounting holes. Please take precautionary measure to avoid damaging these components when installing the motherboard. 1. Memory Installation The DDR4 memory sockets are divided into A and B two channels, each has two sockets showed as below. -
Page 79: Mini Pcie Card Installation
— — Appendix GMB-L3TGL210/310/410 Reference Manual 2. Mini PCIe Card Installation Use M2x5 screw to fix mini PCIe card. 2) Check if the mini PCIe card is loose. 3. M.2 M Key Card Installation (For 2280 Card) 1) Use M3x6 screw to fix M.2 card. -
Page 80: E Key Card Installation
— — Appendix GMB-L3TGL210/310/410 Reference Manual 4. M.2 E Key Card Installation 1) Use M3x6 screw to fix M.2 card. 2) Check if the M.2 card is loose. 5. HDMI & DP port Installation 1) Use M3x6 screw to fix HDMI & DP to I/O panel. -
Page 81: Heatsink Installation (-0Lcf Sku)
— — Appendix GMB-L3TGL210/310/410 Reference Manual 6. Heatsink Installation (-0LCF SKU) 1) FAN connector must be connected to MB “SYS_FAN1” connector 2) Apply on appropriate amount of Grease to CPU DIE as Figure 3) M3x6 screw / lock torque: 6.0+/- 0.2kgf.cm 4) Part No.LXCU341... -
Page 82: Serial I/O Address And Register Function
— — Appendix GMB-L3TGL210/310/410 Reference Manual 5.Serial I/O Address and Register Function The following table lists the I/O addresses in case of SERIAL A. I/O Port Addresses I/O address DLAB Read/Write Register 03F8H Transmitter holding register Receiver buffer register Divisor latch register (LSB) - Page 83 — — Appendix GMB-L3TGL210/310/410 Reference Manual I/O address Description IER: Interrupt Enable Register [DLAB=0] 03F9H IIR: Interrupt Identification Register 03FAH LCR: Line Control Register 03FBH - 83 -...
- Page 84 — — Appendix GMB-L3TGL210/310/410 Reference Manual Description I/O address MCR: Modem Control Register 03FCH LSR: Line Status Register 03FDH MSR: Modem Status Register 03FEH SCR: Scratchpad Register This is an 8-bit, readable/writable register which is available to the 03FFH user to allow data to be saved temporarily.
- Page 85 — — Appendix GMB-L3TGL210/310/410 Reference Manual Baud Rate Settings A baud rate is set by software by dividing the clock input (1.8432MHz). The baud rate in terms of hardware can be set to a maximum of 115,200 bps for SERIAL Port. The baud rates available in practice depend on the operating environment (cable, software, etc.).
-
Page 86: Watch-Dog-Timer
— — Appendix GMB-L3TGL210/310/410 Reference Manual 6.Watch-Dog-Timer The watchdog timer serves as a safeguard against possible system lock-up in your industrial computer system. In most industrial environments, there are heavy equipment, generators, high- voltage power lines, or power drops that have adverse effects on your computer system. For instance, when a power drop occurs, it could cause the CPU to come to a halt state or enter into an infinite loop, resulting in a system lock-up. - Page 87 — — Appendix GMB-L3TGL210/310/410 Reference Manual Example programming The following example is written in Intel8086 assembly language. ;=============== ;<WDT Initial> ;=============== ;------------------------------------------- ;Enter the extended function mode ;------------------------------------------- MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL ;---------------------------------------------- ;Select logical device WDT(number 8) ;----------------------------------------------...
- Page 88 — — Appendix GMB-L3TGL210/310/410 Reference Manual MOV DX,2FH MOV AL,00H OUT DX,AL ;------------------------------------------ ;Exit the extended function mode ;------------------------------------------ MOV DX,2EH MOV AL,AAH OUT DX,AL ;=============================== ;<WDT START: counter set and a start> ;=============================== ;--------------------------------------------- ;Enter the extended function mode ;---------------------------------------------...
- Page 89 — — Appendix GMB-L3TGL210/310/410 Reference Manual MOV AL,0FH ;0FH=15Sec ;---------------------------------------------------------------------------------- OUT DX,AL ;--------------------------------------- ;Exit the extended function mode ;--------------------------------------- MOV DX,2EH MOV AL,AAH OUT DX,AL ;============== ;<WDT STOP> ;============== ;----------------------------------------- ;Enter the extended function mode ;----------------------------------------- MOV DX,2EH MOV AL,87H...
- Page 90 — — Appendix GMB-L3TGL210/310/410 Reference Manual MOV AL,00H ;----------------------------------- OUT DX,AL ;----------------------------------- ;Exit the extended function mode ;----------------------------------- MOV DX,2EH MOV AL,AAH OUT DX,AL CAUTION The timer’s intervals have a tolerance of ± 2 seconds. ⚫ - 90 -...
-
Page 91: List Of Optional Products
List of Optional Products This section lists optional items that can be used along with the product. - 91 -... -
Page 92: Optional Product
SATA Cable LXAP151 Work with storage kit , with latch L=200mm Audio Cable LXAA661 Mainboard DC IN Cable LYYY251 COM Port Cable LYYY281 GPIO Cable 16bit LXBU041 Visit the CONTEC website for the latest optional products. https://www.contec.com/ Download - 92 -... -
Page 93: Customer Support And Inquiry
Customer Support and Inquiry CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. - 93 -... -
Page 94: Services
— — Customer Support and Inquiry GMB-L3TGL210/310/410 Reference Manual 1. Services CONTEC offers the useful information including product manuals that can be downloaded through the CONTEC website. Download https://www.contec.com/download/ You can download updated driver software, firmware, and differential manuals in several languages. Membership registration (myCONTEC) is required to use the services. -
Page 95: Revision History
No part of this document may be copied or reproduced in any form by any means without ⚫ prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained ⚫ in this document. - Page 96 CONTEC CO., LTD. 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. GMB-L3TGL210/310/410 Reference Manual NA09129 (LXBS952) [06202024]...
