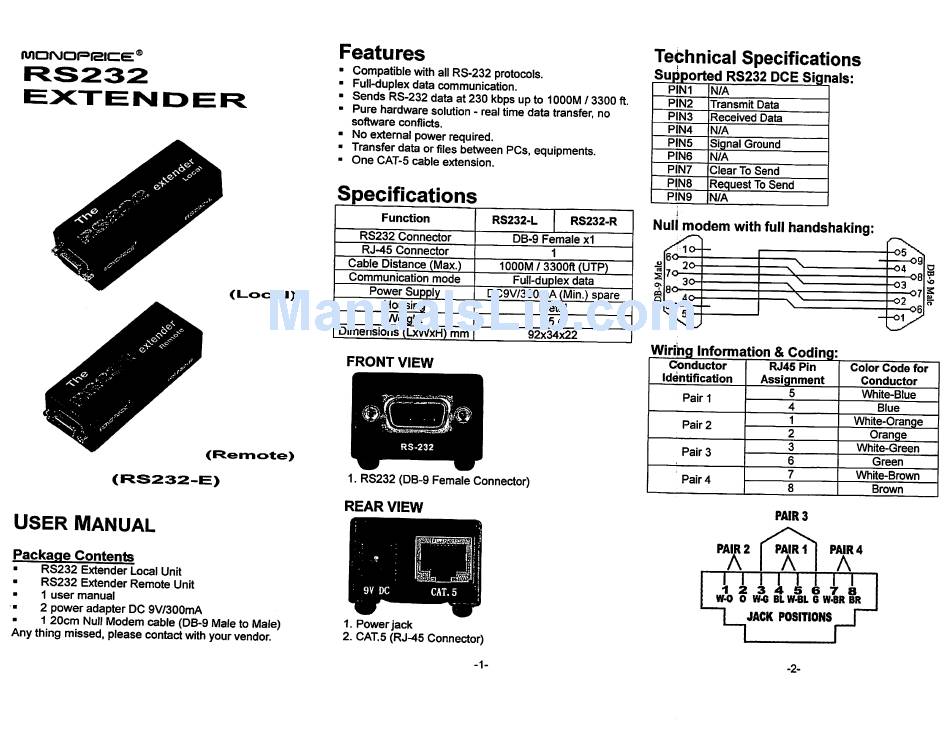

Monoprice RS232-L User Manual

NDER
(Local)
USER MANUAL
Package Contents

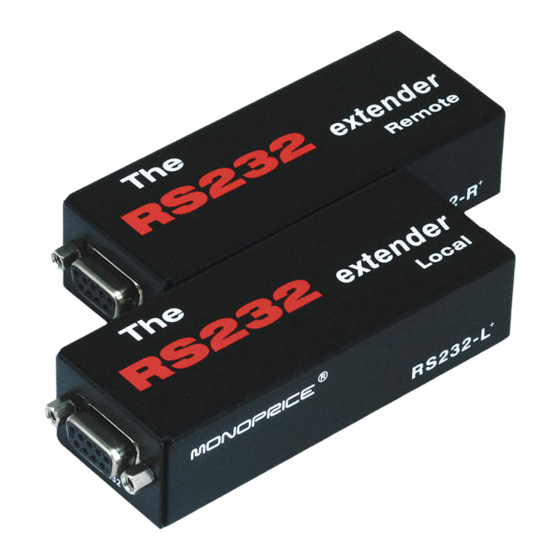

RS232 Extender Local Unit
RS232 Extender Remote Unit
■ 1 user manual
2 power adapter DC 9V/300mA
1 20cm Null Modem cable (DB-9 Male to Male)
Any thing missed, please contact with your vendor.
Features
Compatible with all RS-232 protocols.
Full-duplex data communication.
Sends RS-232 data at 230 kbps up to 1000M / 3300 ft.
Pure hardware solution - real time data transfer, no
software conflicts.
No external power required.
Transfer data or files between PCs, equipments.
One CAT-5 cable extension.
Technical Specifications
Supported RS232 DCE Signals:
Specifications
Null modem with full handshaking
FRONT VIEW
1. RS232 (DB-9 Female Connector)
REAR VIEW
PAIR 3
1. Power jack
2. CAT.5 (RJ-45 Connector)
-1-
-2-
