Summary of Contents for Monoprice Blackbird 43959
- Page 1 4K HDMI® Extender Over Ethernet P/N 43959 Quick User Guide...
- Page 2 SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •...
- Page 3 Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, • or detergents. For stubborn deposits, moisten the cloth with warm water. This device has no user serviceable parts. Do not attempt to open, • service, or modify this device. INTRODUCTION This 4K HDMI®...
- Page 4 ONLINE SUPPORT Monoprice™ is pleased to provide free online support. For order related issues, contact the Customer Service department through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com For technical issues, contact the Technical Support department through the online chat button on our website www.monoprice.com or by sending an email...

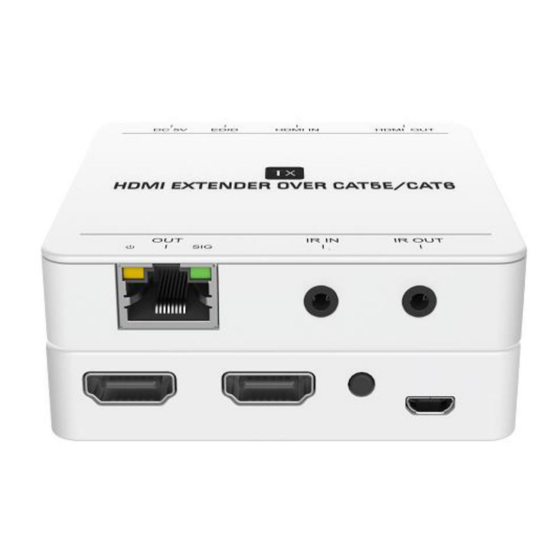

- Page 5 PRODUCT OVERVIEW Transmitter HDMI OUT: HDMI® loop-out port for connecting a local display. HDMI IN: HDMI port for connecting a video source device. EDID: Momentarily press the EDID button on the transmitter to get the EDID from the display connected to the receiver. Press and hold the EDID button for 3 seconds to get the EDID from the display connected to the transmitter's loop-out port.
- Page 6 Receiver IN: RJ45 Ethernet jack for connecting a Cat5e or Cat6 Ethernet cable (available separately) to connect to the transmitter. IR IN: 3.5mm jack for connecting an IR receiver to allow for control of the video source device connected to the transmitter. IR OUT: 3.5mm jack for connecting an IR transmitter to allow for control of the display from the transmitter location.
- Page 7 (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
- Page 8 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
