Led Diagnostics; Terminal Identification - Altronix SMP5 Manual

O N
1 2
+ DC -- + BAT -- AC AC
DC
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal
Function/Description
Legend
Low voltage AC input (see voltage output/transformer selection table).
For 6VDC output use 16VAC or higher with 40VA power rating or higher.
AC/AC For 12VDC output use 16VAC or higher with 85VA power rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltage above 28VAC or 45VDC (maximum input rating).
+ DC -- 6VDC, 12VDC or 24VDC @ 4A continuous supply current.
+ BAT -- Stand-by battery connections. Maximum charge rate 300mA.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IISMP5 - Rev. 020912
6 V 12 V 24 V
SW1 ON OFF OFF
SW2 OFF
OFF ON

LED Diagnostics:

Power Supply Status
Normal operating conditions
Loss of AC. Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.

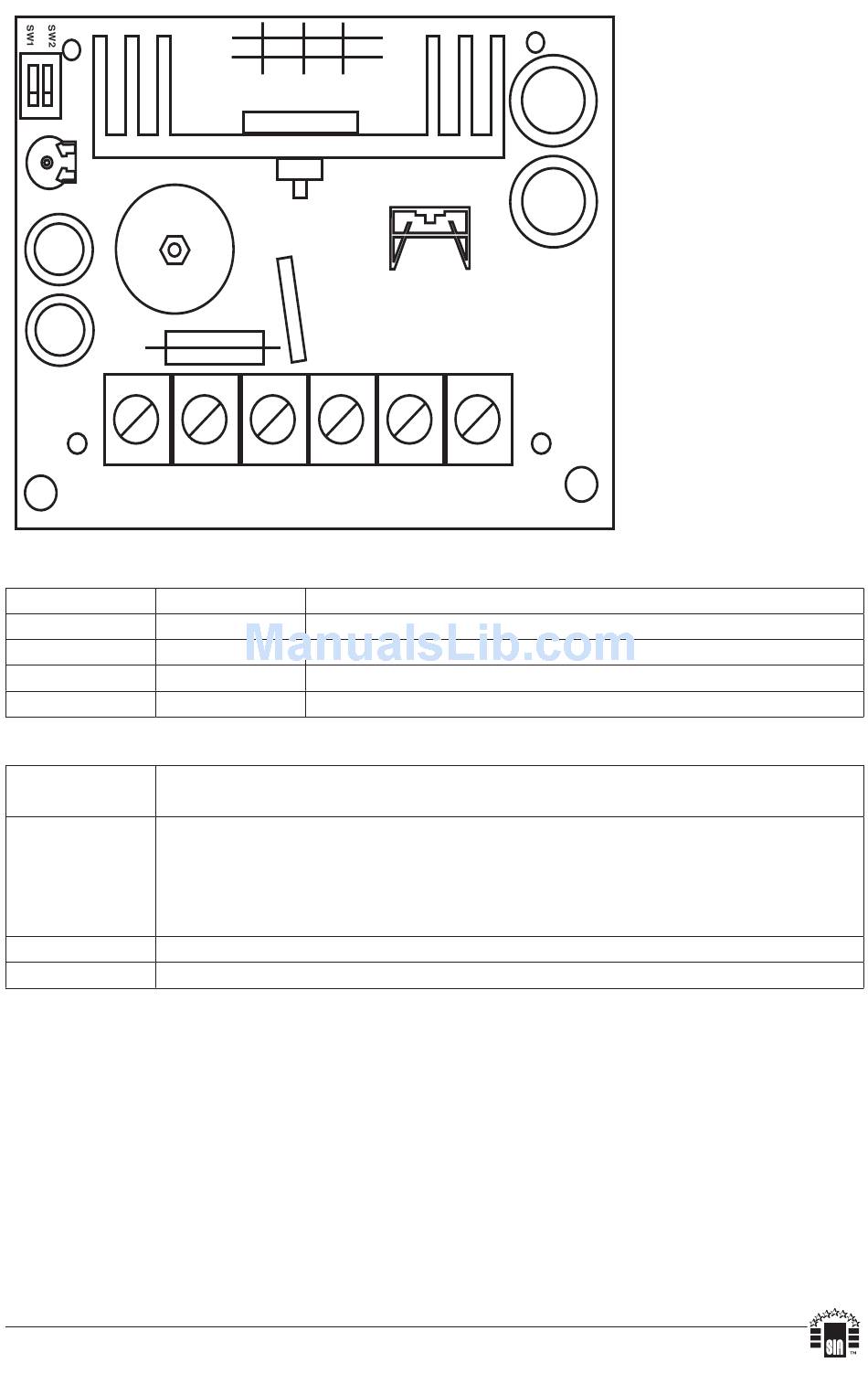

Terminal Identification:
