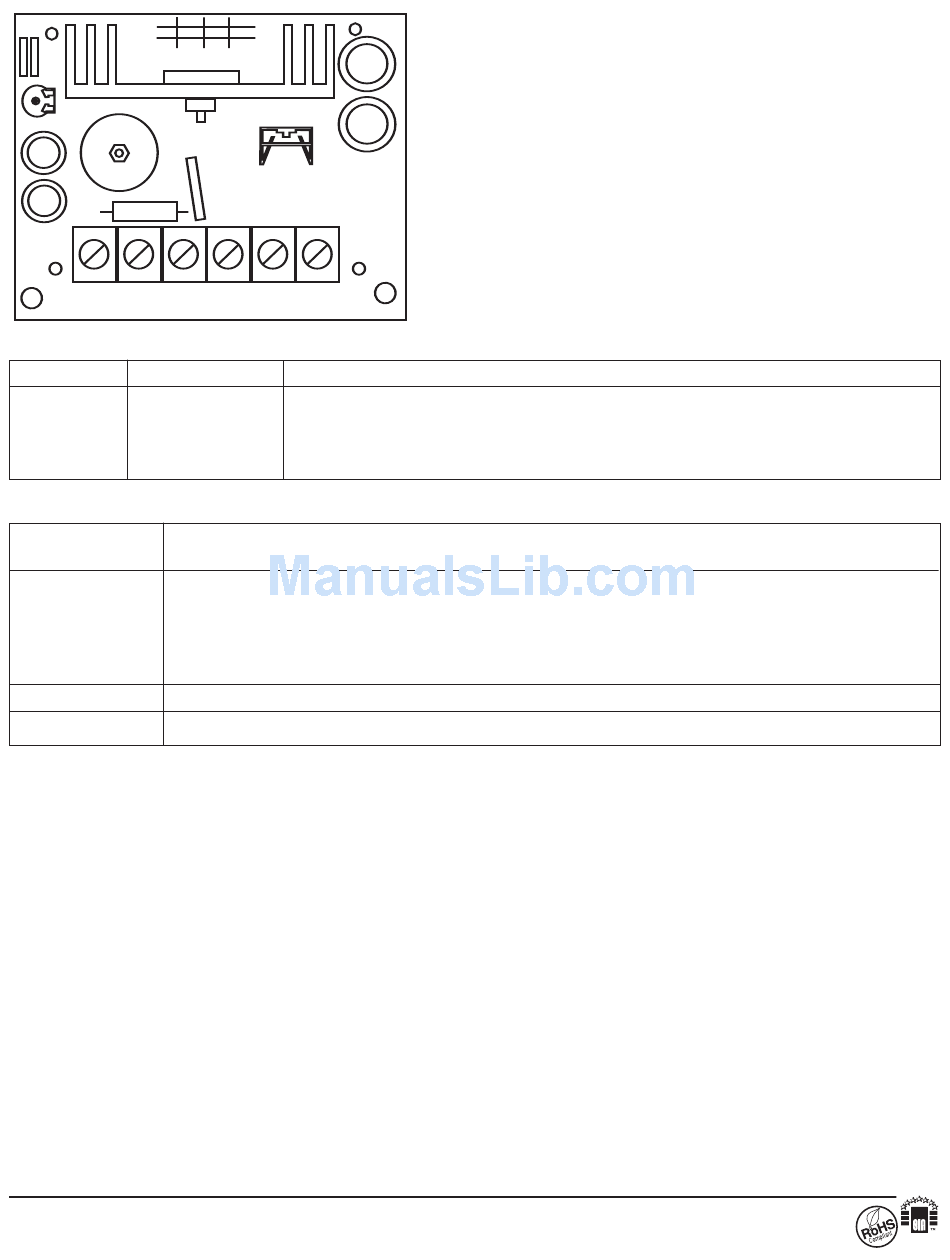

Led Diagnostics; Terminal Identification - Altronix SMP5 Manual

6 V
SW1 SW1 CLSD
SW2 OPEN
SW2
+ DC -- + BAT -- AC
DC

LED Diagnostics:

Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF

Terminal Identification:

Terminal Function/Description
Legend
AC/AC Low voltage AC input (see voltage output/transformer selection table).
For 6VDC output use 16VAC or higher with 40VA power rating or higher.
For 12VDC output use 16VAC or higher with 85VA power rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltage above 28 VAC or 45VDC (maximum input rating).
+ DC -- 6VDC,12VDC or 24VDC @ 4 amp continuous supply current.
+ BAT -- Stand-by battery connections. Maximum charge rate 300mA.
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IISMP5 - Rev. 110606
MADE IN U.S.A.
12 V 24 V
OPEN OPEN
OPEN CLSD
AC
AC
Power Supply Status
Normal operating condition
Loss of AC, Stand-by battery supplying power
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.
