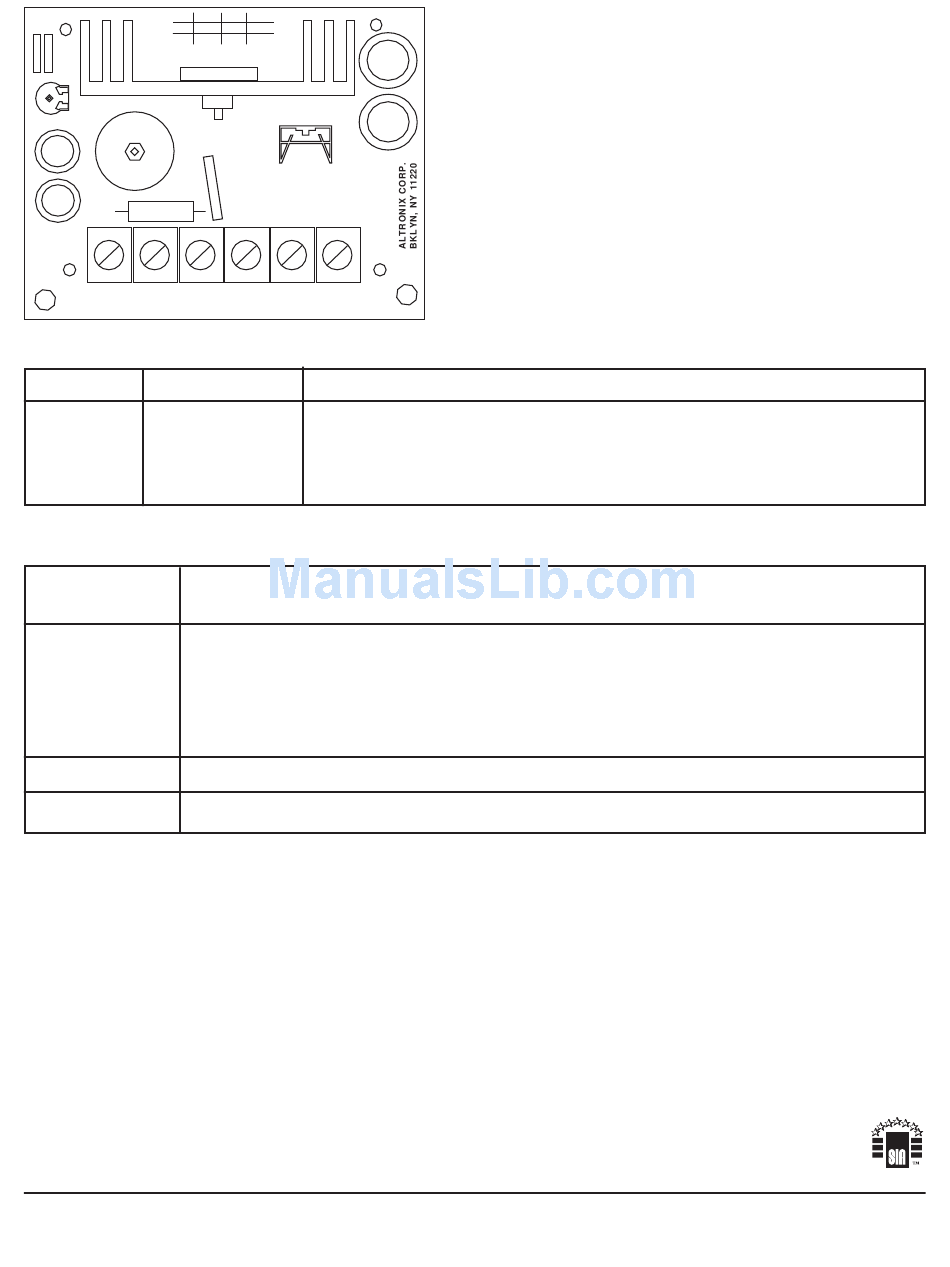

Led Diagnostics; Terminal Identification - Altronix SMP5 Manual

SMP5
6 V
SW1
SW1 CLSD
SW2 OPEN
SW2
+ DC -- + BAT -- AC AC
DC

LED Diagnostics:

Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF

Terminal Identification:

Terminal Function/Description
Legend
AC/ AC Low voltage AC input (see voltage output/transformer selection table).
For 6VDC output use 16VAC or higher with 40VA power rating or higher.
For 12VDC output use 16VAC or higher with 85VA power rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltages above 28 VAC (28VAC is maximum input rating)
+ DC - - 6-12-24VDC @ 4 amps continuous power limited output.
+ BAT - - Stand-by battery connections. Maximum charge rate 300mA.
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
Altronix Corp.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
MADE IN U.S.A.
12 V 24 V
OPEN OPEN
OPEN CLSD
AC
Power Supply Status
Normal operating condition
Loss of AC, Stand-by battery supplying power
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.
