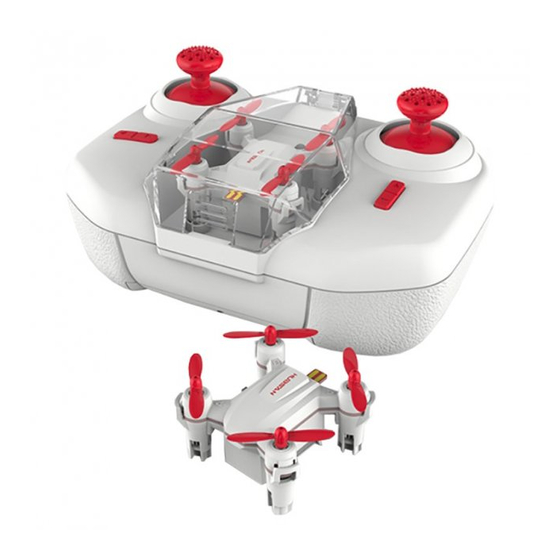

Hubsan Nano Q4 SE User Manual

®
14+
PLEASE READ THE MANUAL CAREFULLY BERORE USE. INTRODUCTION
Thank you for buying the HUBSAN products. It is designed as an easy-to-use,
multi-functional RC model, capable of hovering, fast forward and acrobatic flight
maneuvers. Please read the manual carefully and follow all the instructions. Be sure to
keep the manual for future reference.
1. Safety Notes
1.1 Important Notes
This multi-functional RC model is not a toy.
In case of any injuries caused by improper operations, please read the instructions
carefully before use. Be aware of your personal safety, safety of others and your
surrounding environment. It is advised that beginners learn to fly the qudcopter under the
guidance of professional.
1.2 Caution
Propellers work in high speed, which may cause dangerous. User will be responsible for
any damages caused by improper operations.
Do not operate the quadcopter in crowds, buildings, airports or nearby high voltage
cables.
1.3 Li-Po Battery Safety Notes
The quadcopter is powered by a Lithium-Polymer battery.
If you do not plan to use the products for a long time, store the battery approximately 50%
charged to maintain battery performance and life.
Important
● Risk of explosion if battery is replaced by an incorrect type.
THE HUBSAN NANO
● Dispose of used batteries according to the local regulations.
Q4 SE
ITEM NO: H001
1.6 Always Be Aware of the Rotating Propellers
Be careful to keep your body away from the working propellers. Always keep the
quadcopter fly in sight. If above mentioned happens, pwer off the quadcopter
and the remote controller immediately.
1.7 Avoid Flying Alone
Beginners should avoid flying alone when learning flight skills.
2. Items in the Box
Check all the items in the box before use.
S/N Part Name Photos Quantity Remarks
Equipped with
1 Quadcopter 1PC
1pc of Li-Po Battery
Propeller A: 4pcs
2 Propellers 8PCS
Propeller B: 4pcs
Equipped with
3 Remote 1pc
2 X AAA (Not Included)
Controller
For recharging the
4 USB Charger 1pc
Li-Po Battery
1.4 Prevent Moisture
The quadcopter contains many precision electrical componets.
Store the battery and the quadcopter in a dry area at room temperature. Exposure
5 Manual 1PC Quick Guide Instruction
to water or moisture may cause malfunction resulting in loss of control.
1.5 Proper Operation
For safety, pnly use Hubsan spare parts for replacement.
3. Safety Check Before Flying 5. Propellers
(1) Attach the propellers to the corresponding motors that
● Before flight, check the batteries of quadcopter and controller are fully charged
are marked A and B;
● Before power on the remote controller, check the throttle stick is fully down
● Check the quadcopter is in good condition, broken parts will casue a risk of injury
● Always power on the remote controller first, then quadcopter. After using, always power
off the quadcopter first, then remote controller. Improper procedure may
cause the quadcopter lose of control.
A=A B=B
4. Charge the Li-Po Battery
Connect the battery to the Hubsan USB charger, then connect the USB charger to USB
devices, such as a computer or mobile power charger. (2) Tighten the propellers to the motor shaft.
It takes around 30 minutes to fully charge the battery. The USB LED indicator is in red when
charging and light off when the battery is fully charged. Please unplug the charger and
battery when the charging is completed.
Flight time is around 5 minutes.
● Make sure that the A and B propellers are installed correctly. The quadcopter
will not fly if propellers are improperly installed.
6. Remote Controller
5 LED Indicator
（2）Elevator/ Rudder Stick (1) Throttle/ Aileron Stick
The battery should only be charged with the HUBSAN charger to avoid overcharge.
4 Aileron Trim 3 Elevator Trim
Mode 1
5 LED Indicator 6.2 Quadcopter Calibration
Quadcopter calibration is required when the quadcopter drifts during flight.
1 Throttle/ Rudder Stick 2 Elevator/Aileron Stick Land the quadcopter and place it on a horizontal surface for calibration.
Calibrating Procedures:
Mode 2 : Push the left stick to the bottom right, and move the right stick left to
4 Throttle/ Rudder Trim 3 Elevator/ Aileron Trim
right quickly, the 4 LED indicators on quadcopter will blink alternately, calibration
succeeded when the indicators stop blinking.
Mode 1
: Push the left stick to the bottom right, put the right stick to the lowest
Mode 2
and move left to right quickly, the 4 LED indicators on quadcopter will blink
alternately, calibration succeeded when the indicators stop blinking.
4 Power Switch
6.1 Input Key Function
S/N Mode/ Control Function
Push the stick forward or backward and the quadcopter
Mode 2
1 will ascend or decend; Push the stick left or right and the
Throttle/ Rudder Stick quadcopter will rotate left or right.
Mode 2 Mode 1
Push the stick forward or backward and the quadcopter
Mode 2
2 will fly forward or backward;Push the stick left or right
Elevator/ Aileron Stick 7. Start to Fly
and the quadcopter will fly left or right.
Push the stick forward or backward and the quadcopter will
Mode 1 7.1 Power-On
（1） ascend or decend; Push the stick left or right and the quadcopter
Throttle/ Aileron Stick
will fly left or right. The quadcopter is designed with Power-On safety system, it ensures the motors will not
start undelss safety signals detected.
Push the stick forward or backward and the quadcopter will fly
（2） Mode 1
forward or backward; Push the stick left or right and the
Elevator/ Rudder Stick
quadcopter will rotate left or right. 7.1.1 Turn on/off the remote controller by pushing power switch to left/right.
Make sure the Throttle stick is in the full down position, power on the remote controller, then
3
Elevator Trim Adjusts for forward and backward drift.
quadcopter. Do not push any sticks or trims before pairing is succeeded, or the quadcopter
will drift.
4 Aileron Trim Adjusts for left and right drift.
Blink in red before binding;
5 LED Indicator
Remain lighted in red after binding.
6 Power Switch Turn on/off the remote controller.
● Do not mix old and new batteries ● Do not mix different types of batteries
● Do not charge non-rechargeable battery.
7.2 Basic Flight
The manual will use Mode 2 as an example to illustrate the transmitter's operation.
Transmitter (Model 2) Quadcopter Operation
Up The throttle stick controls the ascent and
descent . Push up the stick and the X4
will ascend. Pull down the stick and the
X4 will descend. Move the throttle
stick above the center position to take
off. (Move the stick gradually to prevent
the X4 from ascending too quickly.)
Down
Right Rotation
The Rudder stick controls the rotate
direction Push the stick to the left and the
X4 will rotate counter-clockwise Push the
stick to the right and the X4 will rotate
clockwise. Pushing harder will cause the
X4 to rotate faster in the corresponding
directions.
Left Rotation
The Elevator stick moves the X4 forward
Forward
and backward.
Push the stick up the and the X4 will fly
forward.
Pull the stick down and the X4 will fly
backward.
The angle of stick movement corresponds
to the angle of tilt and flight speed.
Backward
The Aileron stick controls left and right
flight. Push the stick to the left and the X4
will fly to the left. Push the stick to the right
and the X4 will fly to the right. The angle of
stick movement corresponds to the angle
Right Left of tilt and flight speed.
