Summary of Contents for Hubsan H111D

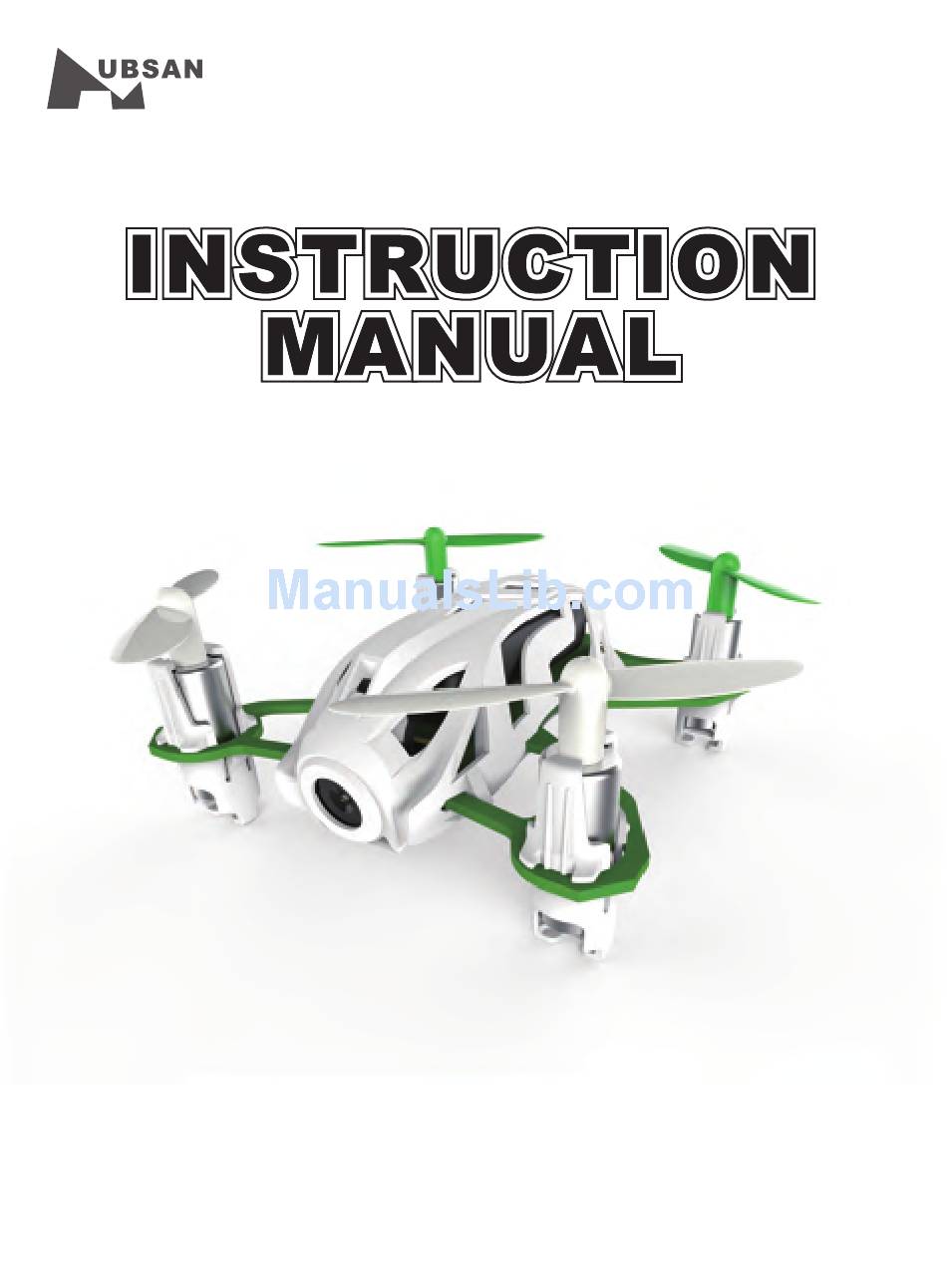

- Page 1 ® PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USE Q4 FPV NO: H111D...
-
Page 3: Table Of Contents
4.1 Introduction 8.7 Sensitivity Setup 4.2 Charging 8.8 Frequency Selectable 5.8Ghz PROPELLERS 9.CALIBRATION START TO FLY EXPLODED VIEW 6.1 Flight Environment H111D SPARE PART CHART 6.2 Binding H111D TROUBLE SHOOTING 6.3 Basic Flight FCC INFORMATION 6.4 Video © 2016 Hubsan 哈博森科技 版权所有... -
Page 4: Important Safety Notes
Always take great caution to protect yourself when near the propellers. The flight system will start after powering on regardless of the transmitter signal.The high speed propellers are very dangerous. Power off the Q4 after every flight or the propellers may still rotate and cause injury. © 2016 Hubsan 哈博森科技 版权所有... -
Page 5: Introduction
INTRODUCTION Thank you for buying HUBSAN products. The Q4 nano quad is designed as an easy-to-use, full-featured RC model capable of hovering and acrobatic flight maneuvers. Please read the manual carefully and follow all the instructions. Be sure to keep the manual for future reference. -
Page 6: Quad Copter
4.1 INTRODUCTION The quad copter battery is a rechargeable Li-Po battery with 180mAh capacity and 3.7V voltage. The battery should only be charged with the HUBSAN charger to avoid overcharge. Please make sure the battery is fully charged before first time use. -
Page 7: Charging
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the local regulations. 5. PROPELLERS Attach the propellers to the corresponding motors that are marked A and B,tighten the propellers and keep the motors deadlocked. © 2016 Hubsan 哈博森科技 版权所有... -
Page 8: Start To Fly
Power on the transmitter until “Bind to Plane” displayed, then power on the drone, and place it very close to the transmitter, the binding will be completed after one “ beep” heard. Should the binding failed, please power off the drone and repeat above steps. © 2016 Hubsan 哈博森科技 版权所有... -
Page 9: Basic Flight
Pull the stick down and the Q4 will fly backward. When the stick is in the center, the Q4 will hold its position. The angle of stick movement corresponds to the angle of tilt and flight speed. Backward © 2016 Hubsan 哈博森科技 版权所有... -
Page 10: Video
Q4. Press the Elevator stick 0.5 second to shift between Normal Mode and Expert Mode. When it enters into Expert Mode, “EXPERT MODE” will be displayed on LCD, indicated by two “Beeps”. © 2016 Hubsan 哈博森科技 版权所有... -
Page 11: Headless Mode
The beeps will last for 2 seconds. In this 2 seconds, push the accordance sticks to perform the flips. 7.3.1 Left Flip Push the Aileron stick to the left. Release the stick to the center position after the flip. MODE 2 MODE 1 © 2016 Hubsan 哈博森科技 版权所有... - Page 12 Pull the Elevator stick forward. Release the stick to the center after the flip. MODE 2 MODE 1 7.3.4 Backward Flip Push the Elevator stick backward. Release the stick to the center after the flip. MODE 2 MODE 1 © 2016 Hubsan 哈博森科技 版权所有...
-
Page 13: Transmitter
(2)Elevator/Rudder Stick 7 Power SW 5 Rudder Trim 3 Aileron Trim MODE 1 8 Video 6Throttle Trim 4Elevator Trim 2 Elevator/Aileron Stick 1 Throttle /Rudder Stick 7 Power SW 5 Rudder Trim 3 Aileron Trim MODE 2 © 2016 Hubsan 哈博森科技 版权所有... -
Page 14: Input Key Function
Rudder trim adjusts for drift of left and right rotation or yaw. Throttle Trim Throttle trim is normally left at neutral. Power Switch Push to turn on the transmitter. Push again to turn off. Press video button to start recording and press again to stop. Video © 2016 Hubsan 哈博森科技 版权所有... -
Page 15: Install The Tx Battery
If you would like to replay the previous videos on transmitter, then follow the instructions below. Pull the throttle stick to the lowest position and long press the Pitch stick simultaneously to enter into MAIN MENU interface. Push the Elevator stick up/down to select “Play Record”. Select “Exit” to exit. © 2016 Hubsan 哈博森科技 版权所有... -
Page 16: Time Setup
MAIN MENU interface. Push the Elevator stick up/down to select “Format SD CARD”. Select “Exit” to exit. 0:08:49 0:08:49 MAIN MENU Format SD Card Are you sure: Play Record Set Real Time Format SD Card Set Reverse Set Sensitive 5.8G Frequence Exit © 2016 Hubsan 哈博森科技 版权所有... -
Page 17: Reversing Channel Setup
0:08:49 0:08:49 Set Sensitive MAIN MENU Exit Play Record Normal mode Set Real Time Elevator : Format SD Card Aileron : Set Reverse Rudder : Set Sensitive 5.8G Frequence Sensitivity default setting is in Normal Mode. © 2016 Hubsan 哈博森科技 版权所有... -
Page 18: Frequency Selectable 5.8Ghz
Push the Throttle Stick to the right lowest corner, put the Aileron Stick to the lowest and move it left to right quickly, the 4 LED indicators will blink alternately, and the calibration is completed when the indicators stop blinking. © 2016 Hubsan 哈博森科技 版权所有... -
Page 19: Exploded View
EXPLODED VIEW PART NAME PART NAME Propeller A Li-Po Battery Propeller B PCBA Propeller A Motor Holder Propeller B Camera Module Motor A Lower Body Shell Screw Motor B Upper Body Shell © 2016 Hubsan 哈博森科技 版权所有... -
Page 20: H111D Trouble Shooting
H111D TROUBLESHOOTING 1.Transmitter and Q4 do not pair. Power on the Q4 after the transmitter shows “Bind to Plane”. Close the Transmitter to the Q4 during binding. Make sure you do not move the transmitter sticks or trim during initial power-on. -
Page 21: Fcc Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2016 Hubsan 哈博森科技 版权所有... - Page 23 H111D SPARE PART CHART H111D-01 H111C-02 H111D-02 H111C-04 Body Shell Set Motor Holders Propeller Set Motor Set H111D-03 H111C-05 H111D-04 H111C-07 Camera module Lipo Battery 2.4G & 5.8G 2 in1 PCBA Screw Set H111C-10 H107D-A05 USB Charger Transmitter © 2016 Hubsan...
