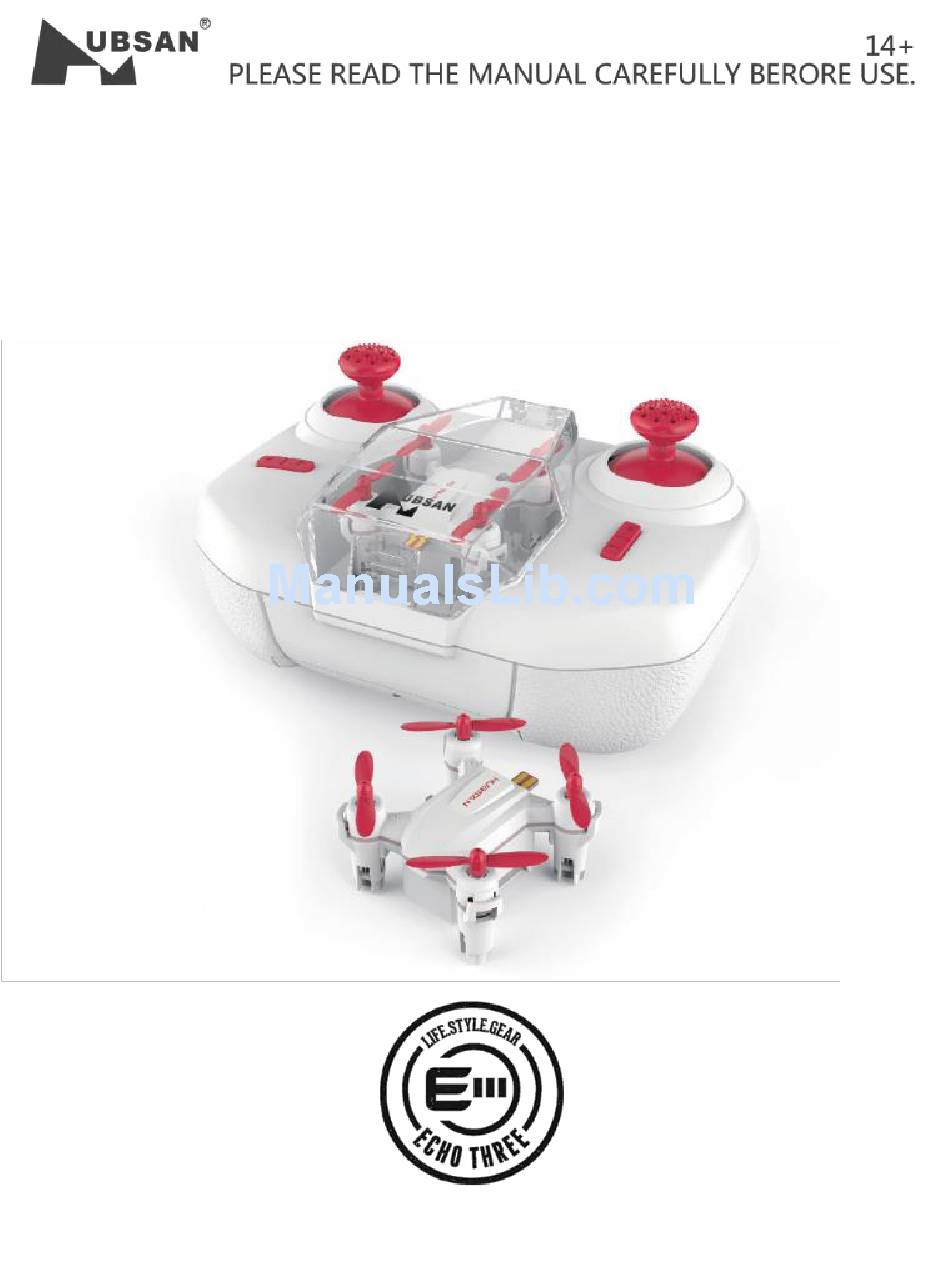

- Page 1 HUBSAN NANO Q4 SE ITEM NO: H001 www.echothree.co.uk...
-
Page 2: Safety Notes
INTRODUCTION Thank you for buying this Hubsan product. This specific model is a user friendly multi-functional RC quadcopter, with full 4-channel control capable of acrobatic manoeuvres. Please read the manual carefully and follow all the instructions. Be sure to keep the manual for future reference. - Page 3 1.4 Prevent moisture The quadcopter contains many precision electrical components. Store the product in a dry area at room temperature. Exposure to water or moisture may cause malfunction and result in loss of control.
- Page 4 1.5 Always be aware of the rotating propellers Be careful to keep yourself away from the rotating propellers. Always fly the quadcopter in sight. To prevent any damage or harm, power off the quadcopter and the remote controller immediately after use. 1.6 Avoid flying alone Beginners should fly under supervision.
-
Page 5: Items In The Box
2. Items in the Box Check all the items in the box before use. Part Name Photos Quantity Remarks Equipped with Quadcopter 1 x Li-Po Battery Propeller A: 4pcs Propellers Propeller B: 4pcs Requires Remote 2 x AAA Batteries Controller (Not Included) For recharging the USB Charger... -
Page 6: Safety Check Before Flying
4. Charge the Li-Po Battery Connect the quadcopter to the Hubsan USB charger, then connect the USB charger to a port, such as a computer or mobile power charger. It takes approximately 30 minutes to fully charge the battery. The USB LED indicator will stay red whilst the quadcopter is charging and will turn off when it is fully charged. - Page 7 5. Propellers (1) Attach the propellers to the corresponding motors that are marked A and B; (2) Tighten the propellers to the motor shaft. ● Make sure that the A and B propellers are installed correctly. The quadcopter will not fly if propellers are improperly installed.
-
Page 8: Remote Controller
6. Remote Controller 5 LED Indicator 2 Elevator/Aileron Stick 1 Throttle/ Rudder Stick 4 Throttle/ Rudder Trim 3 Elevator/ Aileron Trim 4 Power Switch 6.1 Input Key Function Mode/ Control Function Push the stick forward or backward and the quadcopter will ascend or descend;... -
Page 9: Start To Fly
6.2 Quadcopter calibration Quadcopter calibration is required when the quadcopter drifts during flight. Land the quadcopter and place it on a horizontal/flat surface for calibration. Calibrating procedures: Push the left stick to the bottom right corner, and move the right stick from left to right quickly and repeat until the 4 LED indicators on quadcopter flash alternately. -
Page 10: Basic Flight
7.2 Basic Flight Transmitter Quadcopter Operation The throttle stick controls the ascent and descent of the Q4. Push the stick up to ascend the Q4. Pull the stick down to descend the Q4. Move the throttle stick above center position to take off. -
Page 11: Headless Mode
7.3 Headless mode Headless mode means the Q4 will set the current direction as the default direction. When you choose a default headless mode, your Q4 will always move to the left of that default direction when you pull your aileron stick to the left and move to right when you pull the aileron stick to the right regardless of where the drone is pointing at. - Page 12 8.1 Forward flip Push the elevator stick forward quickly then release the stick. 8.2 Backward flip Push the elevator stick backward quickly then release the stick. 8.3 Left flip Push the elevator stick left quickly then release the stick. 8.4 Right flip Push the elevator stick right quickly then release the stick.
-
Page 13: Exploded View
3. Exploded View Part Name Part Name Propeller A Li-Po Battery Lower Body Shell Propeller B Upper Body Shell Screw PA1.0*4 Motor A Motor B PCBA... - Page 14 H001 TROUBLESHOOTING 1. Transmitter and Quadcopter cannot pair Throttle stick needs to be at the lowest position. Please do not move or press the sticks and trims during the initial power-on binding. 2. Gyroscope not working. a) Battery voltage is too low. b) Re-bind.
- Page 16 Rights Reserved WWW.HUBSAN.COM VERSION 1.3 EN...
