Please read carefully before use
Suitable for ages 14+
2.4GHZ RC SERIES 4 CHANNEL
Flip tips kindly check page 12-14

Advertisement

Table of Contents
loading

Related Manuals for Hubsan X4

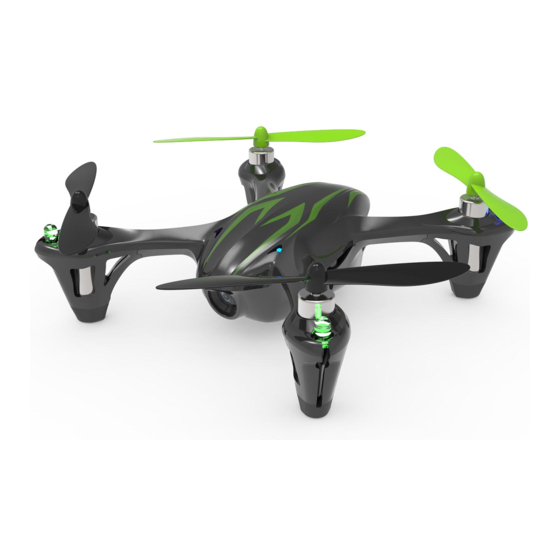

Summary of Contents for Hubsan X4

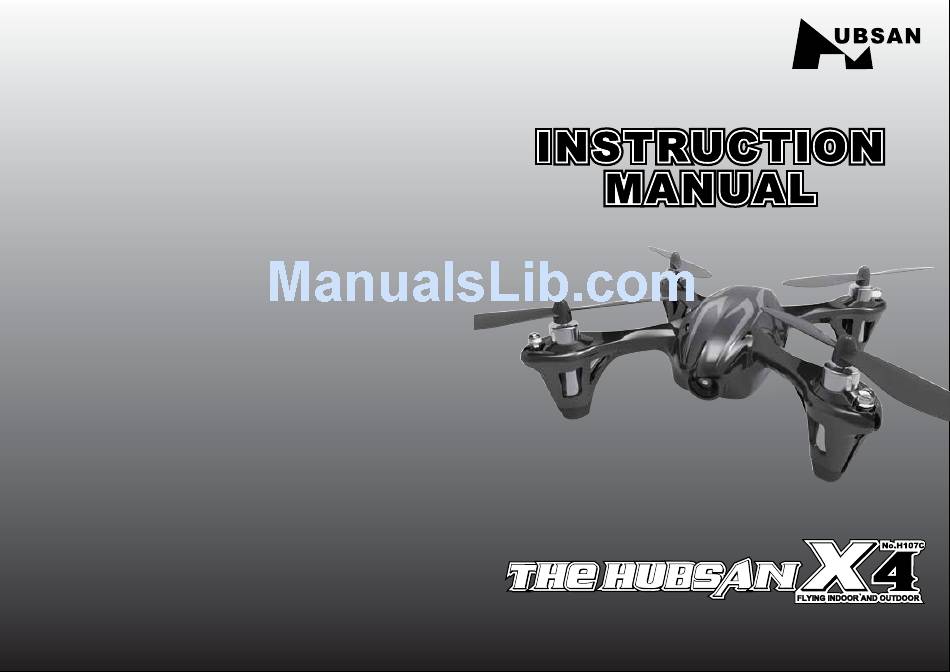

  • Page 1 ® Please read carefully before use Suitable for ages 14+ 2.4GHZ RC SERIES 4 CHANNEL Flip tips kindly check page 12-14...
  • Page 2 Transmitter H107-A29 H107-A11 H107C-20 H107-A13 Rubber feet U wrench Protection Cover T-Shirt H107-A32 H107C-A33 H107-A38 Blue LED Red LED Value pack H107-A28 H107C-a34 H107-A44 4*AAA rechargeable Camera module 30W HD Camera PCB NI-MH battery（700mAh ) module 200W THE HUBSAN X4...
  • Page 3 Choose a wide open space without obstacles. Do not operate R/C aircraft near buildings, Please power of both the TX and the X4 before you take out the SD card. crowds of people, high voltage cables, or trees to ensure the safety of yourself, others and your model.
  • Page 4 Reduce risks from re/explosion by storing and charging LiPo batteries inside a 11. The arm of the X4 separates after a hard landing or crash. suitable container: a LiPo Sack or metal/ceramic container is advised. Answer: This is a special design to absorb the impact from hard crashes. Simply force the arms to Monitor recharging LiPo batteries for signs of overheating.
  • Page 5 2.4 Proper Operation 4. Gyro not working well For safety please only use Hubsan’s spare parts for replacement. Answer: (1) Battery voltage too low. (2) Re-bind (3) Land on to the ground with the throttle fully minimized for 3 seconds and take o again.
  • Page 6 1 Throttle/Rudder Stick 2 Elevator/Aileron stick Blackblade B 820 motor(anticlockwise) 7 Power SW 5 Rudder Trim Upper shell Li-po battery 3 Aileron Trim Lower shell LED-2 Screw LED-1 Screw Rubber feet (MODE 2) Battery box THE HUBSAN X4 THE HUBSAN X4...
  • Page 7 Elevator/Rudder Stick Remove the props. Position the cover’s four holes with the motors. Press each of them on the motors, then re-install the props in their correct positions on the X4 . Aileron Trim Aileron trim adjusts for left and right drift.
  • Page 8 Notice: >Do not mix old and new batteries >Do not mix di erent types of batteries The X4’s props are not identical. Each prop is labeled with an A or B. When installing >Do not charge non-rechargeable battery. replacement props, be certain to install them as shown. The X4 will not y, and will ip and crash if the props are not installed in their proper locations.
  • Page 9 6.1.2 Power on the transmitter and the red LED will be blinking. Please do not move any other stick or trim before the TX and X4 match code and bind, or the X4 will drift. The TX LED will turn green when the TX binds with the X4.
  • Page 10 After a “beep”, and the red LED on the transmitter turns green, the 6 lights on the X4 will be on solid indicating that the bind code is matched. The LEDs will be on and night ying is possible.
  • Page 11 Tip: You do not need to adjust the rudder trim if the X4 keeps yawing left or right during ight. The X4 will nd the rudder central point automatically in 3 seconds after the quadcopter lands with throttle full down on a level ground.
  • Page 12 7.2 Normal and Expert Flight Modes The X4 is factory set for Normal Mode ying, and it will always power up in Normal Mode. While fast and responsive in Normal Model, the X4 has even greater performance capability when Expert Model is activated.
