4.2.2.1. Log File Directory

Enter the directory that the optional log file should be created in. FDT can insert additional details into the
directory path such as the user name, machine name, date or time by using the %U, %M, %D and %T
delimiters.

4.2.2.2. Log File Name

Enter the name of the optional log file. FDT can insert additional details into the file name such as the user
name, machine name, date or time by using the %U, %M, %D and %T delimiters.

4.2.2.3. Save

This saves the FDT Script Configuration file (with the default extension .w4f). FDT will prompt to ask if
you want to execute the saved script immediately.
4.2.3

Status File Page

This is an optional page; leave the Enable status output to file checkbox unchecked if no status file is
required. See section 4.7 for details of the contents of the status file.

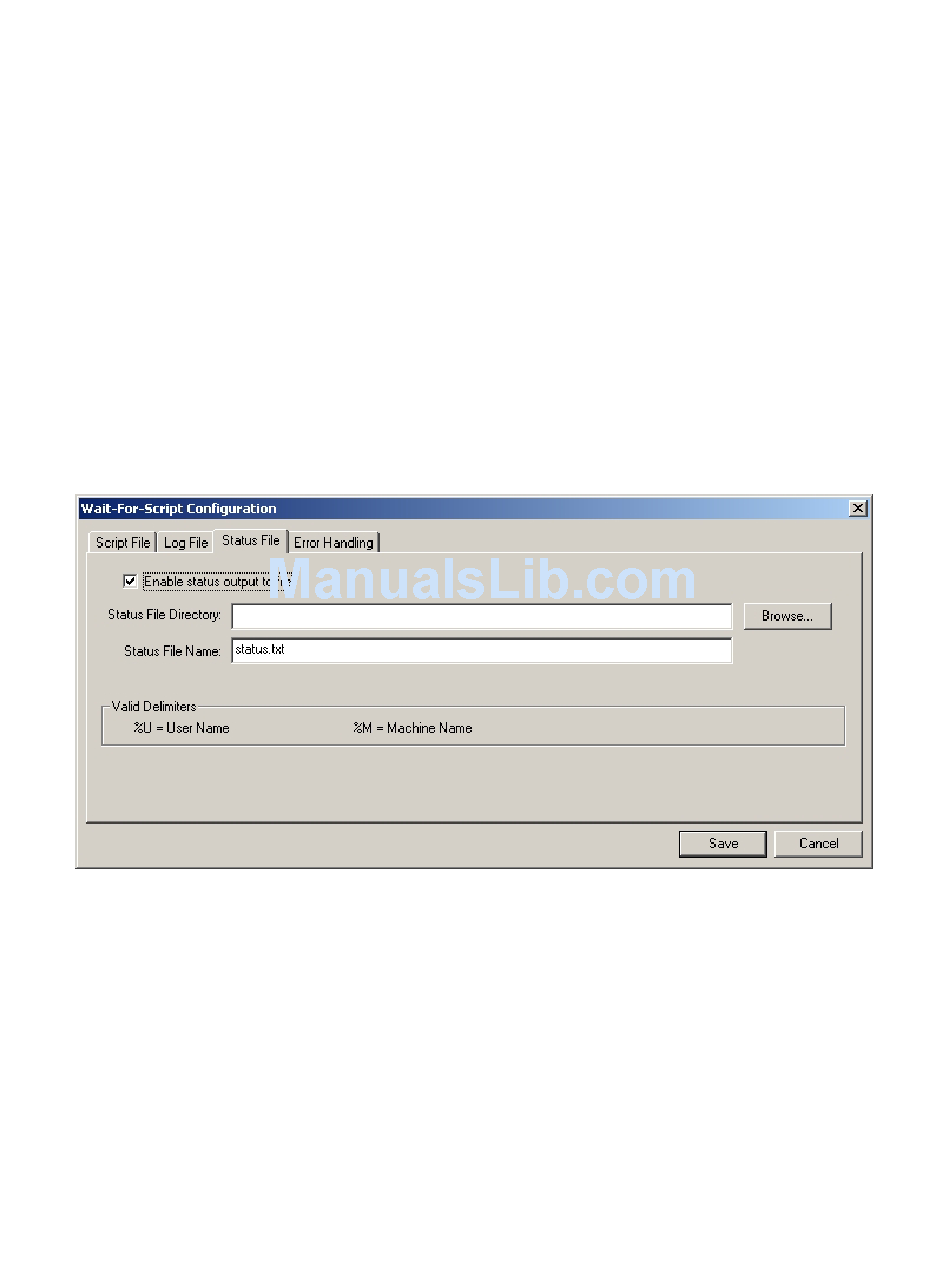

Figure 4-3 Status File Page

4.2.3.1. Status File Directory

Enter the directory that the optional status file should be created in. FDT can insert additional details into
the directory path such as the user name and machine name by using the %U and %M.

4.2.3.2. Status File Name

Enter the name of the optional status file. FDT can insert additional details into the file name such as the
user name and machine name date or time by using the %U and %M delimiters.
45
