Renesas FLASH Development Toolkit 3.07 User Manual page 21

FDT toolbar

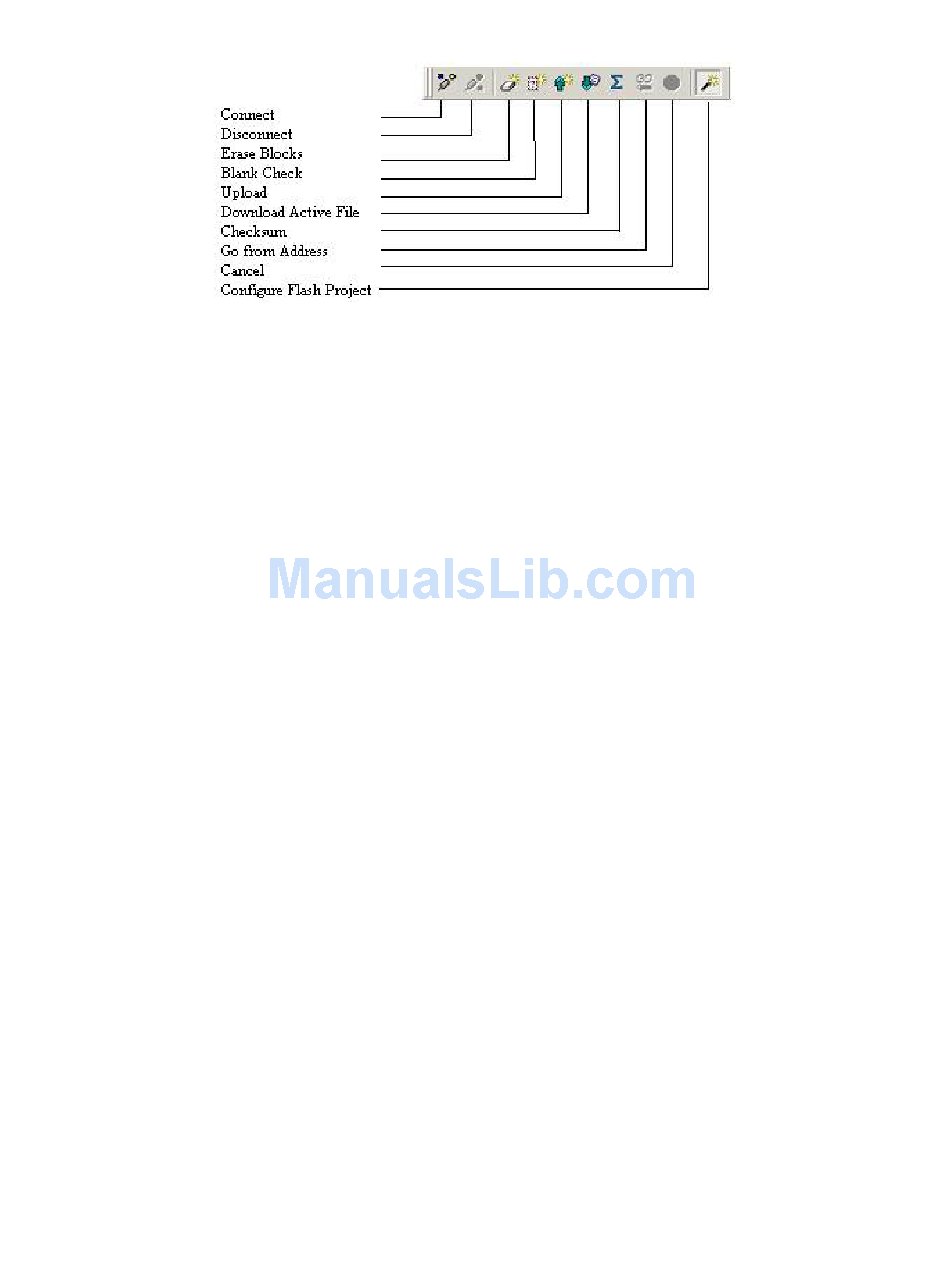

Figure 2-7 FDT Toolbar
Connect - connects the device to the interface.
Disconnect - disconnects the device from the interface.
Erase Blocks - launches the 'Erase Block' dialog box to erase all or individual blocks of the device FLASH
memory.
Blank Check - checks whether or not the FLASH section of the target device is blank.
Upload - launches the 'Upload Image' dialog box to allow data to be obtained from the target device.
Download Active File - downloads the file which is active in the hex editor.
Checksum – returns a checksum of the data in the FLASH.
Go from Address – launches a dialog to select the address to execute from.
Cancel – Cancels the current FLASH operation.
Configure Flash Project - launches the 'Project Properties' dialog box (or the Project Wizard if the project
is not yet configured).
