Renesas FLASH Development Toolkit 3.07 User Manual page 22

S Record toolbar

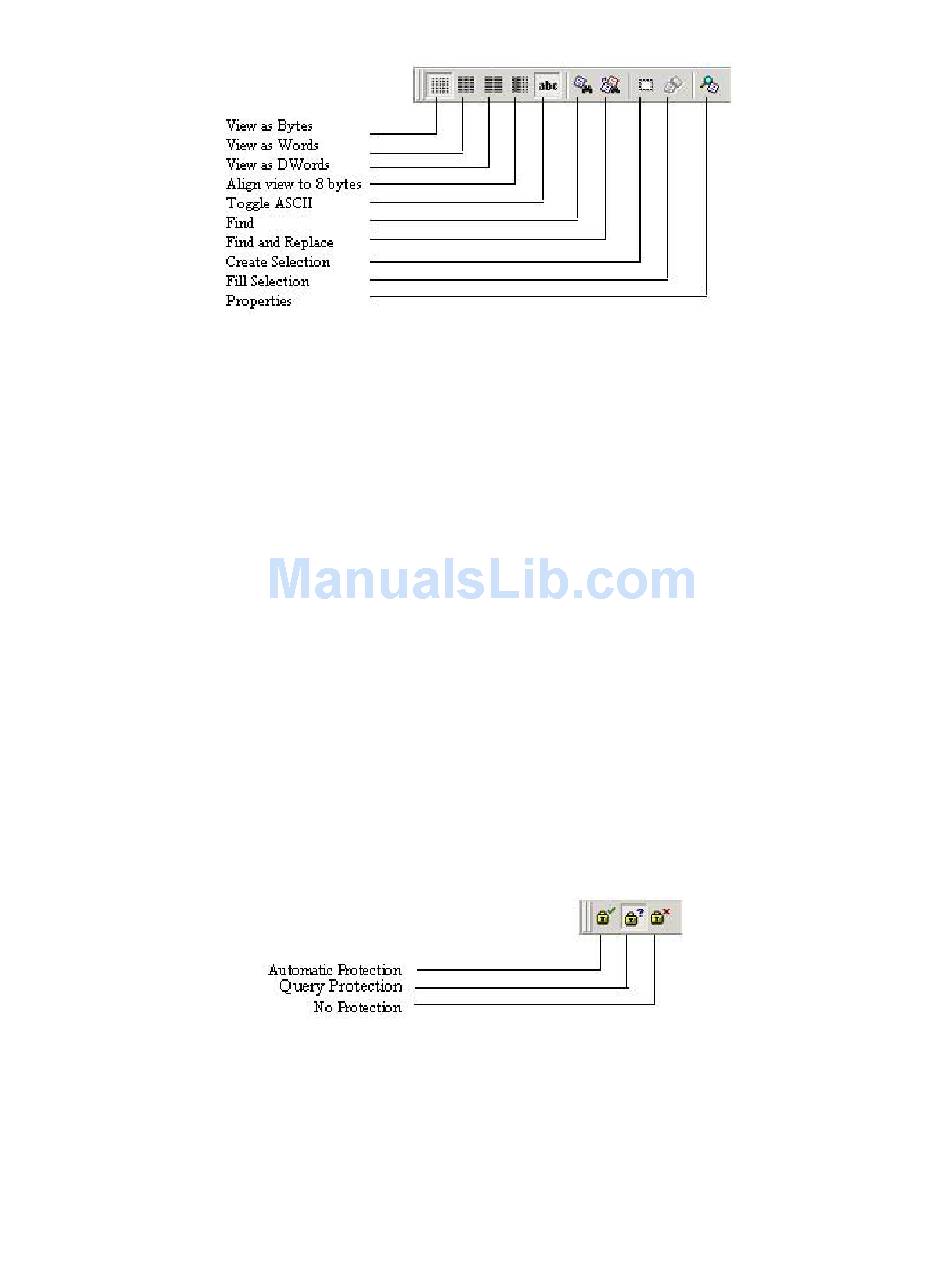

Figure 2-8 S Record Toolbar
View as Bytes - view the file data as 8 bit bytes.
View as Words - view the file data as 16 bit words.
View as DWords - view the file data as 32 bit double words.
Align view to 8 bytes - data is displayed on each line as 8 bytes. The number of bytes that can be
accommodated on each line is dependent upon the size of the window.
Toggle ASCII - turns ASCII data ON or OFF
Find - launches the 'Find' dialog box.
Find and Replace - launches the 'Replace' dialog box.
Create Selection - selects a block of the specified size in the active file.
Fill selection - launches the 'Fill' dialog box.
Properties – launches a dialog with information about the active file.
QzROM toolbar
Figure 2-9 QzROM Toolbar
8
