Generic Boot - Communications Port

Select the port (and interface if available) from the drop-down list, then click the 'Next' button.

3.5.4

If the FDM is selected the following screen will be shown. Set the mode pin settings required to place the

device into Boot Mode.Click 'OK' to continue.

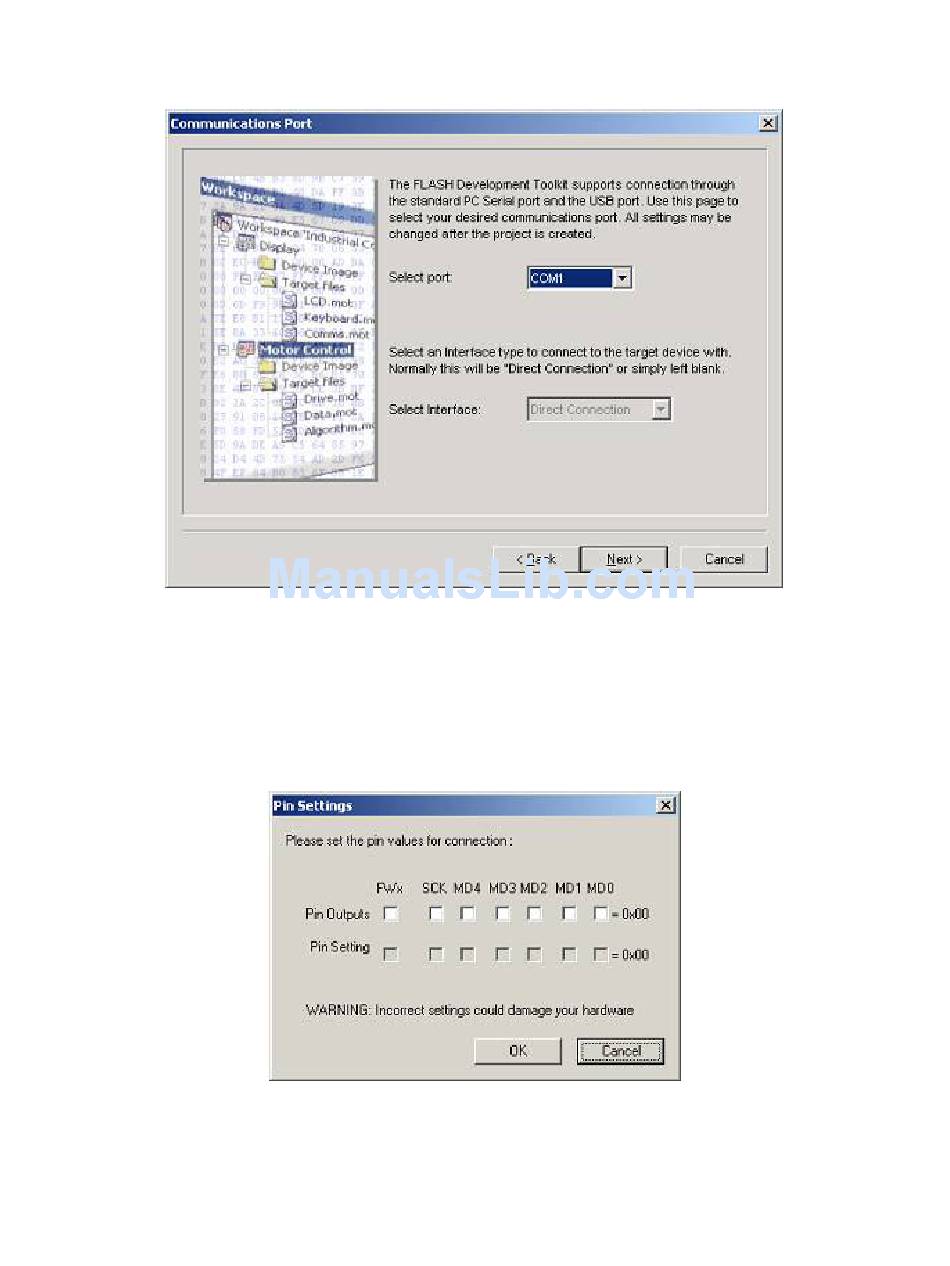

Figure 3-15

Communications Port

Figure 3-16

FDM Generic Device Pin Settings
