Step 2: Parts A + B + C + D. READ ALL PARTS BEFORE PROCEEDING!

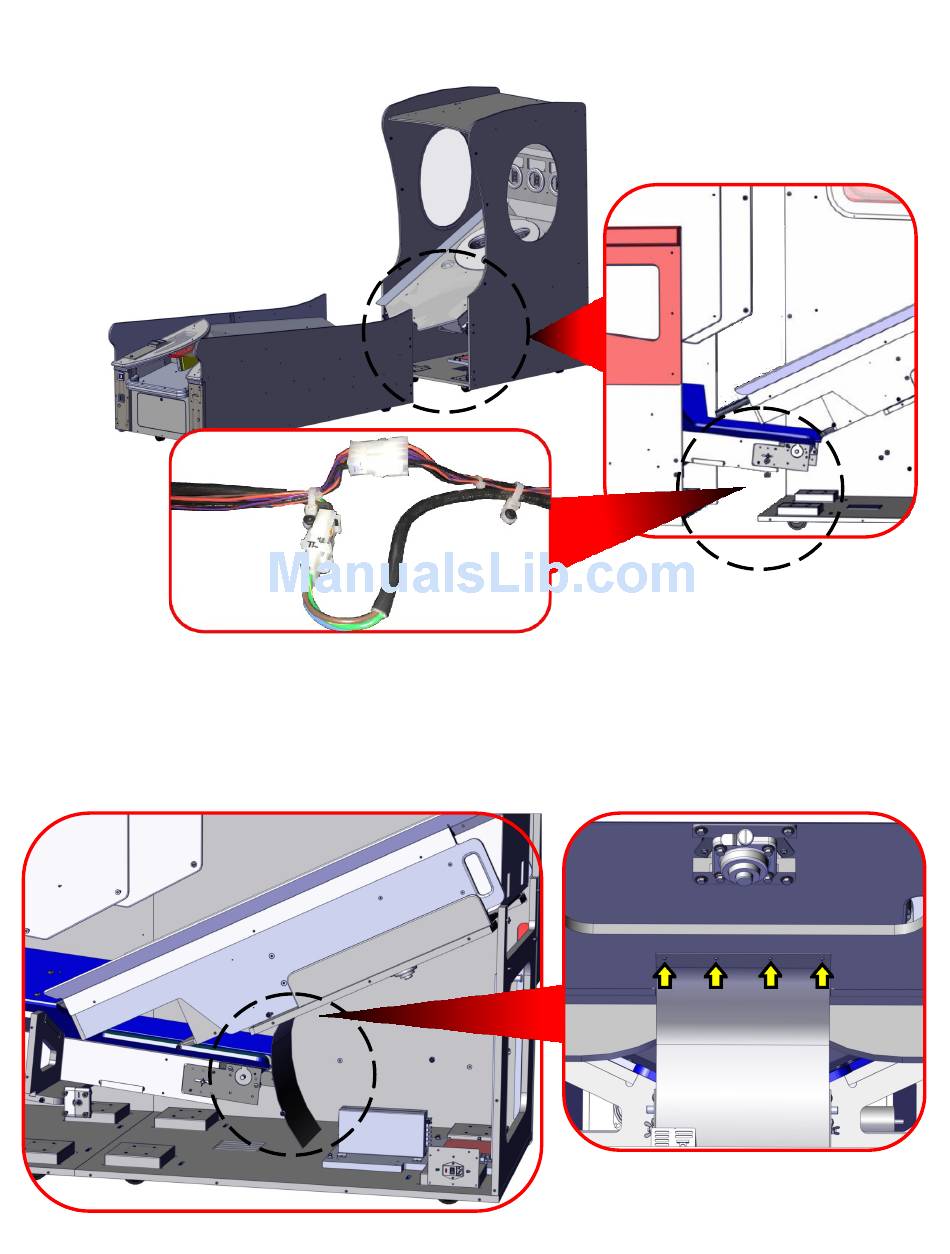

(A) With the cabinet still separated,
attach the two harnesses located near
the floor. Attach both the AC and front
harness extensions together.
** WARNING **
Pay attention to the conveyor and playfield assemblies when sliding the two cabinets together. Be careful
not to break the splash guard at the back of the cabinet. You can remove the splash guard temporary but
remember to reattach it when the cabinet halves are locked together.
