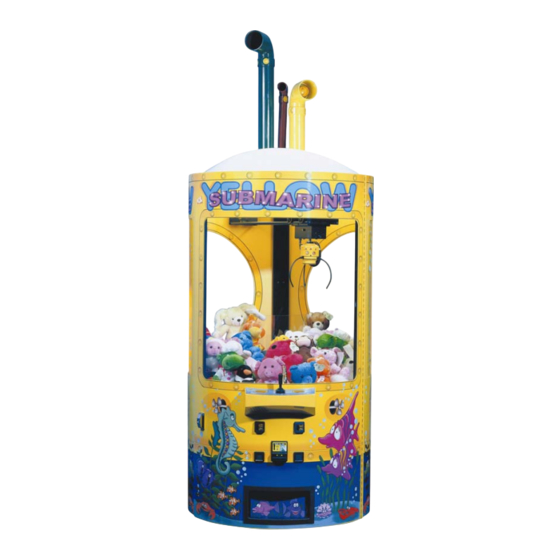

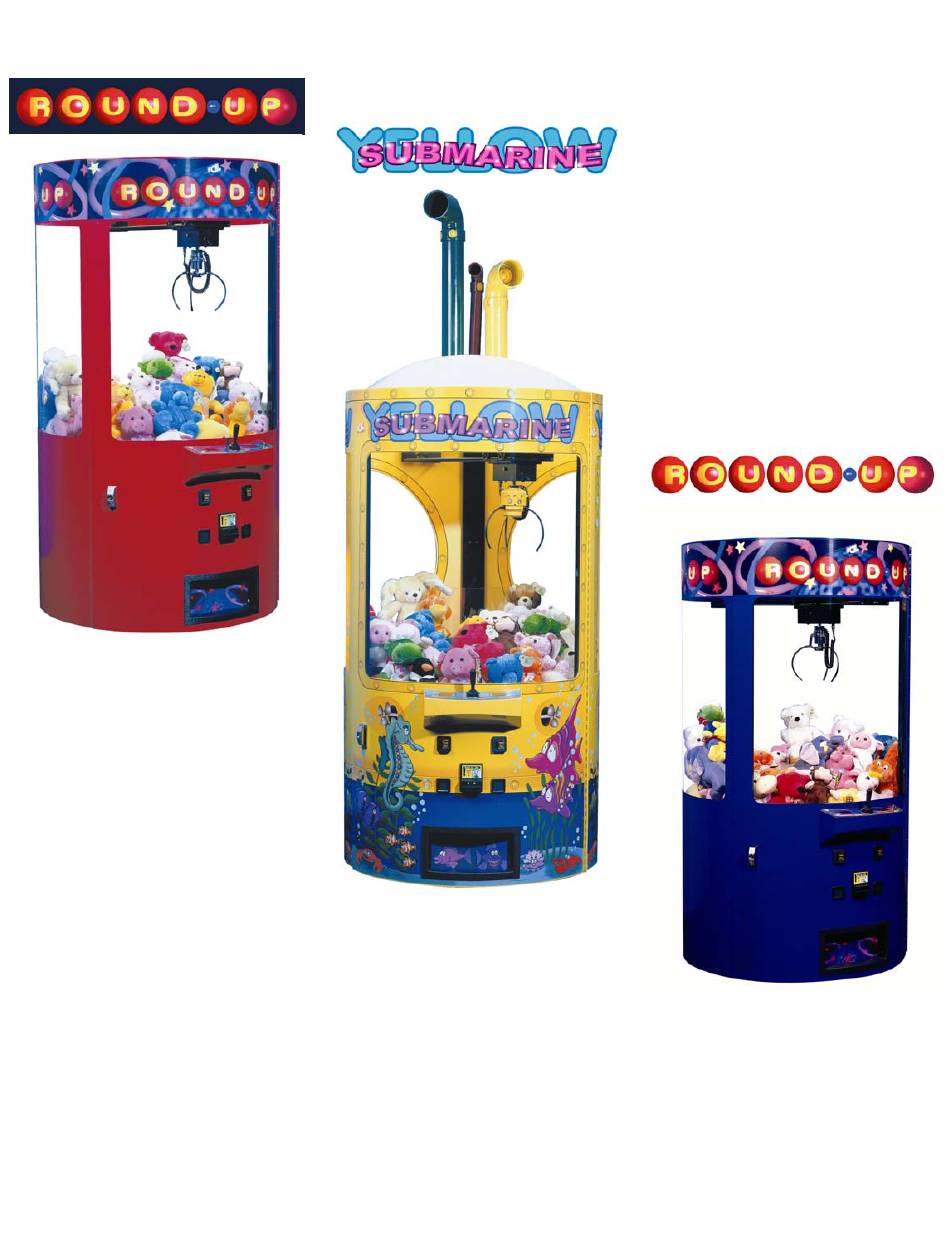

- Page 1 ICE - ROUND CRANE MODELS OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION………………………………..……...PAGE 3 GAME FEATURES • GAME PLAY • SET-UP / TESTING / MAINTENANCE…………...…..PAGE 4 SAFETY PRECAUTIONS • GAME SET-UP • ASSEMBLY • TESTING • CLEANING • PROGRAMMING……………………………..………...PAGE 5 & 6 OPTION MODES • ERROR CODES • QUICK TROUBLESHOOTING…………………..……PAGE 7 & 8 PROBLEMS AND SOLUTIONS •... -
Page 3: Introduction
INTRODUCTION GAME FEATURES GAME PLAY The new ROUND CRANE by I.C.E. was de- As coins are inserted into the ROUND CRANE signed with the operator in mind. Reliability, low a coin in sound will be heard. When sufficient maintenance, available custom cabinetry, and coins have been inserted, the game sound all metal exterior construction are some of the starts, the claw clicks closed and re-opens,... -
Page 4: Set-Up / Testing / Maintenance
SET-UP / TESTING / MAINTENANCE SAFETY PRECAUTIONS TESTING After the initial setup, it is time to test your game for IMPORTANT: FAILURE TO FOLLOW THESE DI- proper operation. RECTIONS CLOSELY COULD CAUSE SERIOUS DAMAGE TO YOUR GAME. 1. Locate the game in its permanent location. 2. -
Page 5: Programming
PROGRAMMING MODE DESCRIPTION MIN / MAX / DEF MEANING (Credit Display) (Timer Display) BASIC PROGRAMMING Game Type 0, 1, 0 0—Left, Right, Forward, Backward, Nudge 1—Left, Right, Forward, Backward, Drop Game Mode 0, 1, 0 0—Normal Play 1—Play till you win Time 10, 60, 20 10—60 Seconds (Inc. -
Page 6: Error Codes
PROGRAMMING Error Codes Problem E² (Memory) Prize Sensor Up Sensor Down Sensor Left NOT USED Right Back Front Counter Disconnect Out Of Range (High) Out Of Range (Low) -
Page 7: Quick Troubleshooting
QUICK TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION THE DECIMALS ON THE 4 THIS IS IN FACT NOT A PROBLEM BUT A WAY OPEN THE FRONT DOOR AND THE DISPLAYS ARE LIT UP OF LETTING THE OPERATOR KNOW THAT ERROR CODES ARE SHOWN ON THE THERE WAS A PROBLEM DURING THE START DISPLAYS. - Page 8 QUICK TROUBLESHOOTING A self-test will be performed each time the front door is “closed” or the game is powered up. If the Wagon does not move smoothly through a full travel from SIDE to SIDE, check to see that the motor driver board is working properly, and that the rotary motor itself is working. If the Wagon does not move smoothly through a full travel from front to back, check to see that the rod bushings are straight and not binding.
-
Page 9: Parts Listings
PARTS LISTINGS MECHANICAL PARTS ELECTRONIC / ELECTRICAL 1030 Dollar Bill Validator Cover Plate 2033X Controller Board 3004 Spacer, Long 2089X AC Rope Light Harness 3051 Wheel "O" Ring 2133CW White Chase Style Rope Light 5011 Spring 2133U Rope Light "U" Channel 5014 Cash Box Lock 2134... - Page 10 PARTS LISTINGS GRAPHICS ROUND UP CRANE RC7001 Prize Door Decal RC7012 Control Panel Overlay RC7027 Front Marquee Cabinet Decal RC7028 Side Marquee Cabinet Decal YELLOW SUBMARINE CRANE RC7500 Cabinet Right Side Decal RC7501 Prize Door Decal RC7502 Cabinet Left Side Decal RC7503 Window Rounds RC7504...
- Page 36 #2163...
-
Page 37: Warranty Information
Warranty I.C.E warrants all components in the ROUND CRANE game to be free of defects in materials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual. - Page 38 WARRANTY ICE Inc warrants that all of its products will be free from defects in material and workmanship. When placing a warranty request, please be prepared to provide the following information: • Serial Number of Game or Bill of Sale •...
