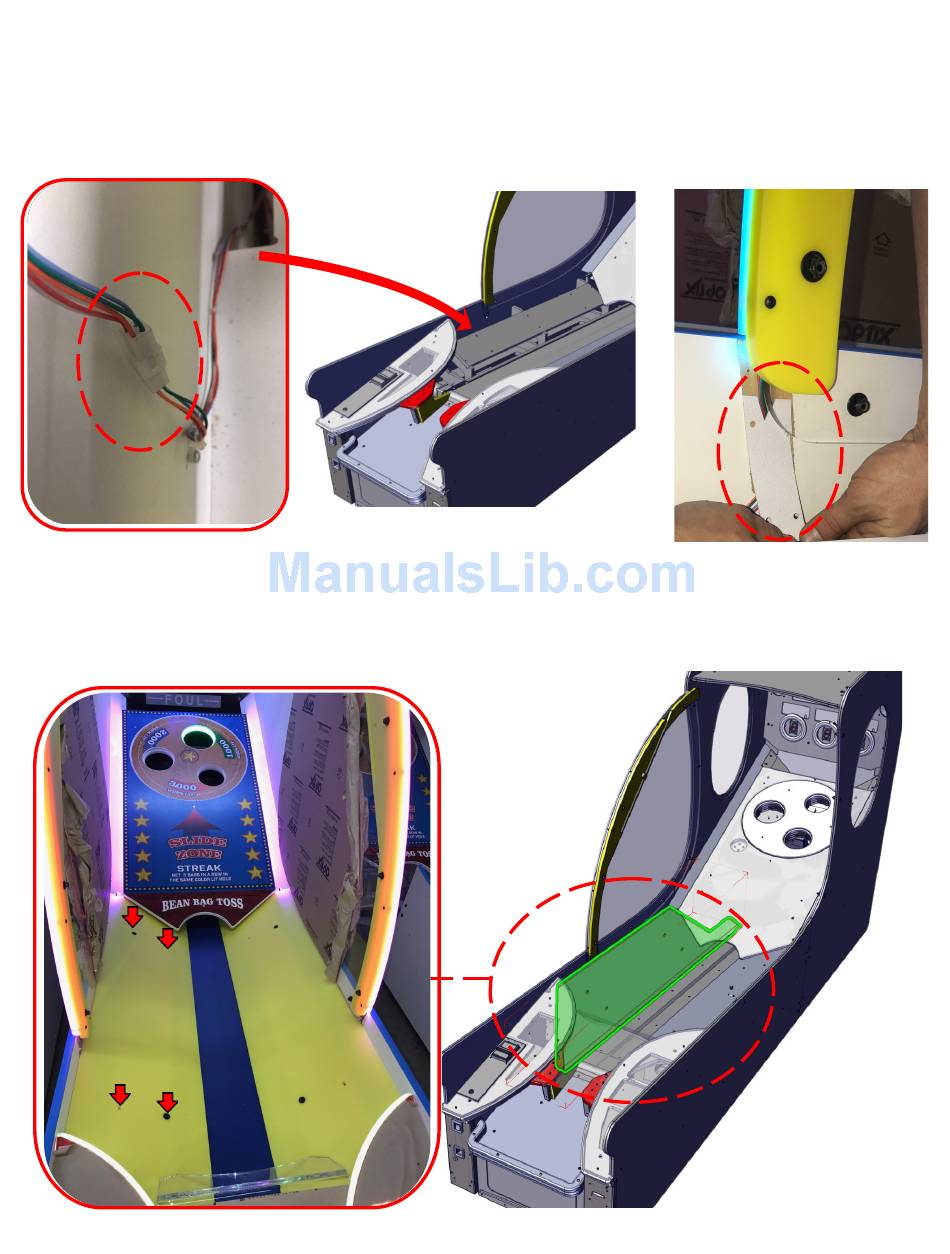

Step 7:
Plug the RGB LED harness in and re-install cover. Do not reinstall the finger guard cover until both sides
glass panels are installed. Slide the TL3213 LED cover on the left side and T3212 led cover on the right
side.
Step 8
Install the yellow side panels by sliding them under the playfield. Use the AA6281 with AA6212 washers.
Once installed, you can attach the finger shield from Step 6.
11
