Unbox and INSTALL THE BELT

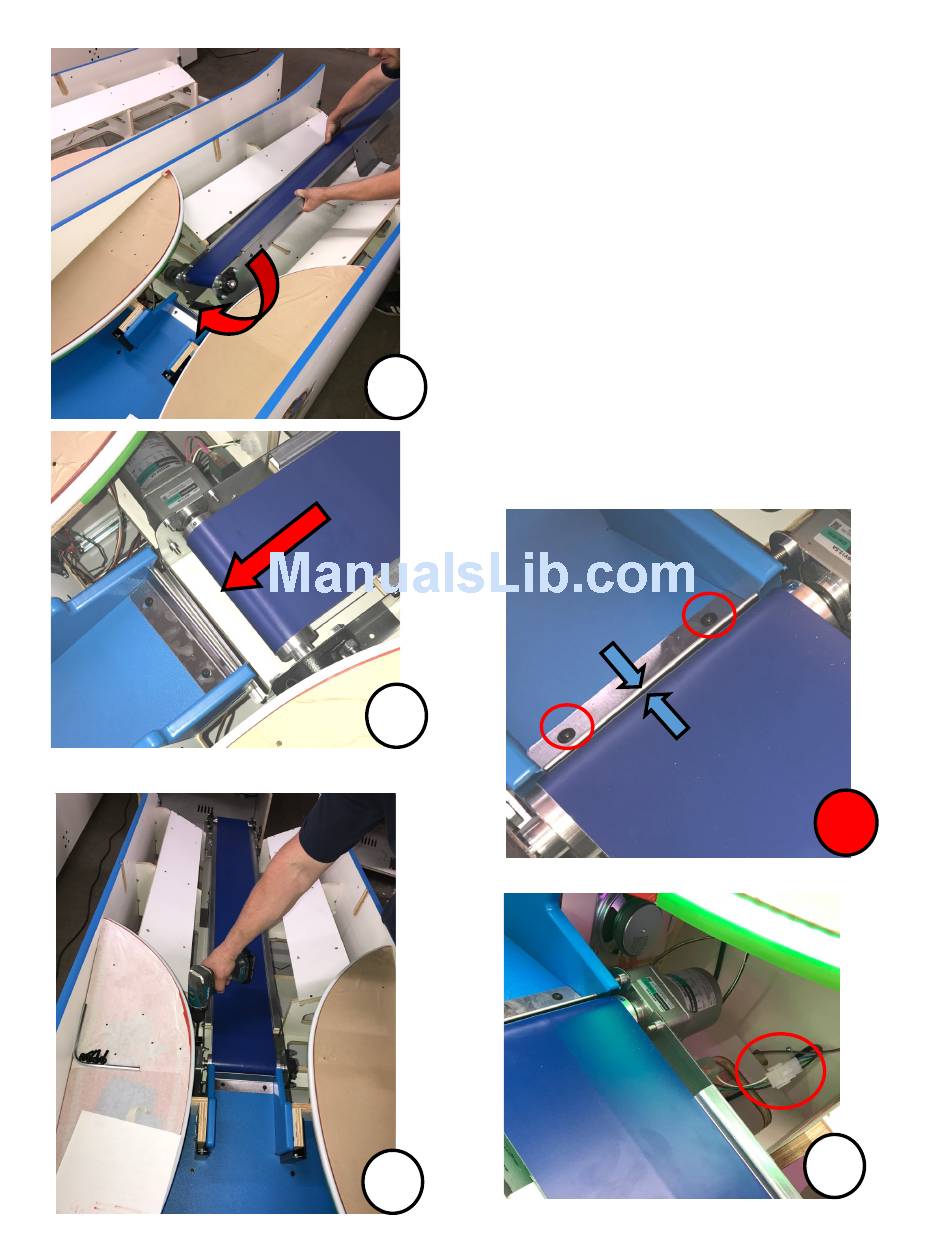

A) Install the belt by tilting the motor under the front
control panel.
B) Push the Belt Assembly forward
C) Secure the belt assembly with PC60622 bolts with
washers in 8 places. Then add the AA655 in 4 places.
(this will secure the metal frame to the wood cabi-
net.)
D) Adjust the metal plate (if needed) the metal plate
should be 1/32" away from the belt. (.8mm)
A
IMPORTANT: THE METAL PLATE SHOULD NOT TOUCH
THE BELT but it should be as close as possible.)
E) Connect the harness.
