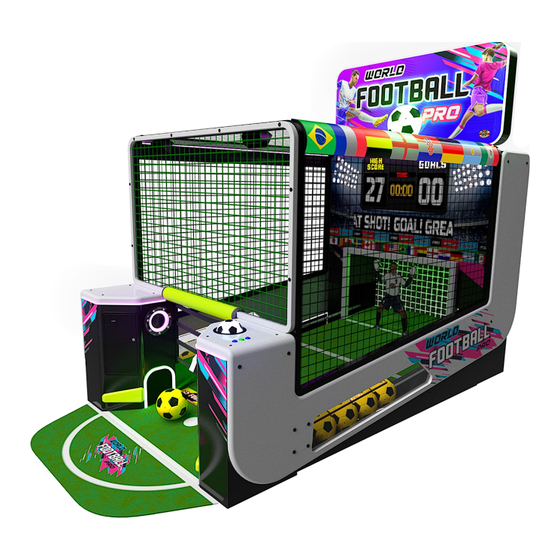

- Page 1 Service Manual (716) 759-0360 WWW.ICEGAME.COM Innovative Concepts in Entertainment 10123 Main street Clarence, New York 14120...
-
Page 2: Table Of Contents
Table of Contents Safety and Warnings UCL Connector SETUP UNPACKING YOUR PALLET GAME ASSEMBLY FINAL GAME SETUP FIRST TIME POWER ON PROGRAMMING VOLUME CONTROLS (OPTIONS AND AMP) DIAGNOSTIC MENU WARRANTY Rev C 6/5/2023... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. -
Page 4: Ucl Connector
Universal Card link Connection See Wiring Insert for wire colors and which connections are used. Pin 1. +12v- Supply to Card System = Minimum of 2A available for the card systems and a Max of 3A. Pin 2. Coin 1 - input to the game PCB. Pin 3. -
Page 5: Unpacking Your Pallet
UNPACKING YOUR PALLET Cut strap to remove front floor assembly (PS1014X). (PS1014X) Slide cages out. (PS1030) (PS1028) (PS1028) (PS1029) (PS3095) - Page 6 Remove floor assembly from pallet. Cut strap to remove other assemblies. (PS7030) (PS3079) (PS7029) (PS3115) (PS1031) (PS3050X) (PS1031) (PS3116) (PS7027X)
- Page 7 Remove both podiums. (PS3070X) (PS1005X) (PS1006X) Remove the remaining items found in the (AA1050) PS4009X (PS3024) X’s 8 PS3122 (PS6000X) PS1001 AA6718 (3) PS3037X PS3039 AA6212 (3) Purchased Option (PS7010) (CG2027) (PS1023-P800) (PS1022-P800) (PS3022X)
-
Page 8: Game Assembly
Attach one PS3079 trim piece using three AA6213 bolts and AA6212 washers to the left and right side of the back assembly (PS3070X). - Page 9 With a helper, lay the PS3050X assembly down on the ground. (PS3050X (PS3050X) Lift the PS3070X assembly onto the PS3050X assembly. (PS3070X) (PS3050X)
- Page 10 Secure the back assembly onto the floor assembly using three AA6886 screws on each side shown below. AA6886 X’ 6 At both sides of the cabinet, unlock the access panel and remove. On the right side, plug in two harnesses.
- Page 11 On the Left side, plug in two harnesses. Unlock and remove the top back access panel.
- Page 12 Plug in the Network cable into the open RJ45 slot. Remove the lower panel of the PS3050X assembly.
- Page 13 Pem studs are located at the back of this mount. Note, floor assembly components removed for clarity. From the front of the game, insert one PS4006 foam pad, then PS7010 Goalie, another PS4006 pad and then the PS1001X sweeper assembly. * CUT ZIP TIES TO RELEASE RUBBER PADS ON GOALIE.
- Page 14 Attach the left (PS1022-P800) bracket and the right (PS1023-P800) bracket to the PS7027X marquee assembly using eight PC60622 Allen bolts, four per bracket. PC60622 X’s 8 (PS7027X) (PS1022-P800) (PS1023-P800) Attach the marquee assembly on top at the back of the game using PC60622 Allen bolts, four per support, eight total.
- Page 15 Plug in the harness for the marquee. Slide the left cage (PS1028-p705) onto the top lip of the cabinet as shown.
- Page 16 Secure the cage to the cabinet using four PC60622 Allen bolts. PC60622 X’s 4 INSIDE OF CABINET WARNING - CAGE WILL NOT BE COMPLETELY STABLE UNTIL TOP CAGE ASSEMBLY IS ATTACHED. Slide the right cage (PS1028-705) onto the top lip of the cabinet as shown.
- Page 17 Secure the cage to the cabinet using four PC60622 Allen bolts. PC60622 X’s 4 WARNING - CAGE WILL NOT BE COMPLETELY STABLE UNTIL TOP CAGE ASSEMBLY IS ATTACHED. Position two PS1031 trim panels at each side of the top cage (PS1029- P705) and attach them using twelve PC60622 Allen bolts, six on each side.
- Page 18 Placement of optional cheat sensor should be at the back of the cage. It should be close to center and not to one side. Place two cheat support brackets under neath the top cage and put the cheat assembly on top of the cage with the brackets to the inside of the cheat assembly.
- Page 19 A helper is highly recommended to stabilize the side cages while placing the top cage assembly onto the side cages! Secure the cage top assembly using six PC60622 Allen bolts to each side top as shown. PC60622 X’s 12 WARNING - CAGE WILL NOT BE COMPLETELY STABLE UNTIL TOP CAGE ASSEMBLY IS ATTACHED.
- Page 20 Plug in the cheat sensor harness if purchased. **Note - Never plug in harness with the power on! Damage will occur to the sensor.
- Page 21 At each side, insert the bottom half of a PS7029 plastic flag cover into the bottom groove of the side trim panel. Then while keeping the bottom in the groove, start at the front, push the top into the upper groove and slide your hand to the back. The top should pop into the groove as you slide towards the back.
- Page 22 Install the ball covers PS3115 left and PS3116 right using six PC60622 Allen bolts and AA6185 large black washers on each side. AA6185 PC60622 X’ 12 X’ 12...
- Page 23 At the upper front corner of the cage assembly, plug in a PS3027X cage corner cap and attach it to the cage assembly using two AA6281 Allen bolts. Do this on both sides. AA6281 X’s 2per side At the front left floor level, remove the sensor array cover by removing the Phillip screws shown with the arrows.
- Page 24 At the front right floor level, remove the reflector array cover by removing the Phillip screws shown with the arrows. Put hardware aside. On the left podium, plug the network cable and harness at the bottom. Then carefully move the podium against the front floor and cage assembly making sure the three harness are not pinched in the process.
- Page 25 Install two PC60622 Allen bolts at the front. Then two AA6219 silver screws to secure the cage to the podium. Three AA6886 flat head Allen bolts to secure the side of the podium. PC60622 X’s 2 AA6219 X’s 2 AA6886 X’s 3 Plug the three harness for the left sensors in.
- Page 26 Attach a PS3022 cleat at the back of the left podium using two AA6667 bolts and AA6031 washers. AA6667 X’s 2 AA6131 X’s 2 PS3022 cleat On the left podium, plug the network cable and AC at the bottom. Then carefully move the podium against the front floor and cage assembly making sure the two harness are not pinched in the process.
- Page 27 Install two PC60622 Allen bolts at the front. Then two AA6219 silver screws to secure the cage to the podium. Three AA6886 flat head Allen bolts to secure the side of the podium. AA6219 PC60622 X’s 2 X’s 2 AA6886 X’s 3 Plug the two harnesses for the right podium sensors.
- Page 28 Attach a PS3022 cleat at the back of the right podium using two AA6667 bolts and AA6131 washers. AA6667 X’s 2 AA6131 X’s 2 PS3022 cleat Slide floor up to front but do not attached until you plug in the harness that connects the two podiums together.
- Page 29 Lift the floor carpet up a bit to access the holes to attach the front floor. Use four AA6886 flat Allen bolts to secure it. AA6886 X’s 3 Attach the front foul line band assembly to the cabinet using six AA6331 screws on each side.
-
Page 30: Final Game Setup
Re-install the upper and lower access panels. To install the middle panel, use eight AA6281 Allen bolts and AA6212 washers at the back shown with arrows. AA6212 X’s 8 AA6281 X’s 8 The game has been shipped with eight balls. DO NOT USE ALL EIGHT BALLS! ONLY SIX BALLS AT ANYTIME SHOULD BE USED. -
Page 31: First Time Power On
First time you power on your game Instructions: Steps to clear “first build”: The Goalie must be off of either sensor, if not then instructions to center goalie will be displayed Move goalie left – this checks that the left goalie sensor is good. Move goalie Right –... -
Page 32: Programming
How to enter program options. Unlock the left podium and open to access the program operator controls. Press the “Prog” button. Programming Options version 100 Options: Description: Attract Time in minutes Time in Minutes. Coin 1 Coins/pulses per credit to start a game. Coin 2 How many Coin 1’s is Coin 2 worth? If using same value coins on both lines, leave at 1. -
Page 33: Volume Controls (Options And Amp)
Options: Description: Game Volume Foreground Volume Music Volume Background Volume Cheat Cheat sensitivity 0 = Off FirstBuild 0 = Validation Test, 1 = Test passed Game Balls Max balls released at the same time to the player. End Game Bonus 0 = off, 1 = On Factory Factory Reset if set to 1. -
Page 34: Diagnostic Menu
World Football Pro Diagnostic Menu To enter diagnostic mode, in attract mode (not in game mode), open the left podium lid and press and hold the down button for five seconds. Left side numbers are inputs, right side are boards LEFTSIDE: Goal input from Display Board Field Crossed 1 from Front Board... -
Page 35: Warranty
(including labor) that is performed by such a distributor. Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360 Fax #: (716) – 759 – 0884 www.icegame.com...
