Icegame DB1200X Service Manual

Hide thumbs Also See for DB1200X:

Advertisement

Quick Links

Download this manual

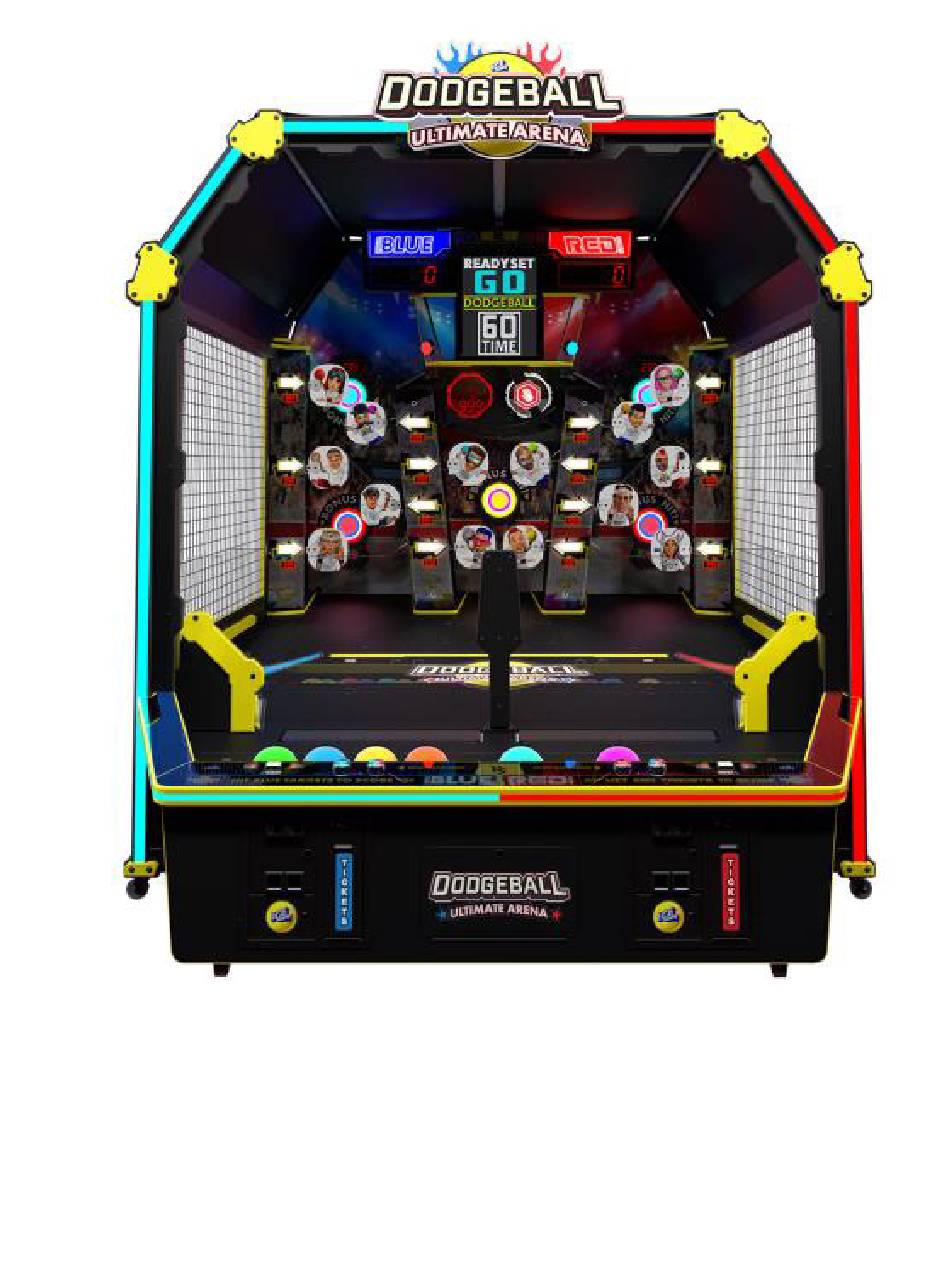

DB1200X Service Manual
Innovative Concepts in Entertainment
10123 Main Street
Clarence, New York 14031
(716) 759-0360 8:30am to 6:00pm EST
WWW.ICEGAME.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the DB1200X and is the answer not in the manual?

Questions and answers

Related Manuals for Icegame DB1200X

Summary of Contents for Icegame DB1200X

  • Page 1 DB1200X Service Manual Innovative Concepts in Entertainment 10123 Main Street Clarence, New York 14031 (716) 759-0360 8:30am to 6:00pm EST WWW.ICEGAME.COM...
  • Page 2 Table of Contents - REV K - 6/5/2023 1200x Deluxe model DODGEBALL Safety and Warnings Game description and operations Hardware kit breakout 5 - 6 Game Assembly Chapter 1 Steps 1 - 8 7 - 15 Chapter 2 Steps 9 - 16 16 - 21 Chapter 3 Steps 17 - 22...

  • Page 3: Safety And Warnings Before You Begin

    SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS.
  • Page 4 The object of the game is to hit targets to score the most points possible using multipliers to increase your score. The game can be played in either single training mode or competitive mode. Points of the game: ● Arena Jumbotron - Players can compare their scores in competitive mode against others. ●...

  • Page 5: Hardware List

    HARDWARE LIST AA6630 1/4-20 x 4 black Allen E08639 HARNESS AA6369 - 1/4-20 X 3-1/2 BLACK CLAMP AA6516: 1/4-20 X 3/4 DOWEL NUT PC60636 1/4-20 X 3 (BLACK) AA0655 - #8 X 3/4 silver Square pan head screw AA6125 1/4-20 X 2-1/2 black AA6584 1/4-20 X 2 (BLACK) QTY: 3 AA6177 - 8-32 x 1...
  • Page 6 NON-HARDWARE ITEMS INCLUDED WITH PARTS PACK DB3024 - balls X’s 24 (4 boxes with 6 multicolored balls in each box) 18 balls installed in game, and 6 spare balls. AA6105 Latch tool AA6173 AA6811 #2 Phillips BIT T-20 Torx Bit PC60615A AA6215 #2 SQ DRIVE BIT...
  • Page 7 Chapter 1 Assembly for Steps 1-8.
  • Page 8 Parts Needed Pallet 1 Pallet 2, loose, 2k Bundle 1 1P (X’s4) Bundle 2 1S (X’s 2) Pallet 2 Bundle 2 2v & 2W Pallet 1, Loose, 1F HARDWARE NEEDED AA6125 1/4-20 X 2-1/2 black Allen (QTY 26) Pallet 1, loose, 1G AA6584 1/4-20 X 2 (QTY 6) AA6212 1/4 X 3/4 black washer (QTY 30)
  • Page 9 STEP 1: Attach two “1P” leg to the left wall “1G” panel, graphics facing up, using three AA6125 Allen bolts and three AA6212 black flat washers on each “1P”leg. The legs should be on top of the outside of the panel. Graphics should be on facing at you.
  • Page 10 STEP 2: Attach two “1P” legs to the right side wall ”1H”, graphics facing up, using three AA6125 Allen bolts and three AA6212 black flat washers on each leg. The “1P” legs should be on top of the outside of the panel.
  • Page 11 STEP 3: Attach the two 2V and 2W brackets to each side of the rear wall panel (1F) using three AA6584 black Allen bolts and AA6212 black washers. Brackets when installed should be on the inside of the panel. See mounted brackets and pay attention to the Square cut out on the right side. X’s 6 AA6584 1/4-20 X 2 (BLACK) AA6212 1/4 X 3/4 FLAT...
  • Page 12 STEP 4: Slide the back wall assembly into the left wall back slots you created when you installed the back legs. STEP 5: Secure the back wall to the left side wall assembly using two AA6125 and two AA6212 black flat washers. X’s 2 AA6212 1/4 X 3/4 FLAT WASHER BLACK...
  • Page 13 STEP 6: Insert the other side of the back wall assembly into the right wall slots. Secure the back wall to the right wall assemblies using three AA6125 and three AA6212 black flat washers. X’s 2 AA6125 1/4-20 X 2-1/2 (BLACK) AA6212 1/4 X 3/4 black washer...
  • Page 14 STEP 7: Slide two 1S Joists into the two inner channels shown. NO HARDWARE is used to secure them.
  • Page 15 AA6125 1/4-20 X 2-1/2 black Allen (QTY 4) AA6212 1/4 X 3/4 black washer (QTY 8) STEP 8: AA6966 1/4-20 black nylon nut (QTY 4) Slide the upper support onto the brackets at the front of the game. Secure the support using two AA6125 Allen bolts and AA6212 washers from the backside and secure them with AA6966 nylon...
  • Page 16 Chapter 2 Assembly for Steps 9-16.

  • Page 17: Parts Needed

    Parts Needed Pallet 2, loose, 2E Pallet 1, loose, 1O Pallet 1, loose, 1E Pallet 1, loose, 1k HARDWARE NEEDED QTY 18 : AA6584 1/4-20 X 2 (BLACK) QTY 18 : AA6212 1/4 X 3/4 black washer Pallet 1, loose, 1J Pallet 1, loose, 1I...
  • Page 18 STEP 9: Slide the power sub-floor (1E) into the rear channels. Align the tabs into the slots. WATCH YOUR FINGERS! NOTE: Although all efforts we made to ensure quality in parts, before installing this panel, inspect the panel for damage to wiring or mounting holes not fully cleaned out.
  • Page 19 STEP 11: Locate the components shown below to assembly the ball gate assembly. The two DB3186 ball deflectors are not installed at this time. 2E Ball gate assembly STEP 12: Secure both left (1I) and right (1J) ball deflectors to the (2E) ball gate assembly using three AA6584 black Allen bolts and AA6212 black washers on each deflector.
  • Page 20 STEP 13: Attach the 1K center support with four AA6584 black Allen bolts and four AA6212 black washers from the top and at the back of the support. AA6584 1/4-20 X 2 (BLACK) X’s 4 AA6212 1/4 X 3/4 FLAT WASHER BLACK STEP 14: Slide the 2E ball gate assembly into the front slot of the base cabinet.
  • Page 21 STEP 15: Secure the 1O center floor panel using four AA6584 black Allen bolts and AA6212 black washers. X’s 4 AA6584 1/4-20 X 2 black Allen AA6212 1/4 X 3/4 black washer NOTE: Although all efforts we made to ensure quality in parts, before installing this panel, inspect the panel for damage to wiring or mounting holes not fully cleaned out.
  • Page 22 Chapter 3 Assembly for Steps 17-22.
  • Page 23 Parts Needed Pallet 2, loose, 2B Pallet 2, loose, 2A Pallet 2, loose, 2D Pallet 2, loose, 2C HARDWARE NEEDED QTY 2 : AA6125 1/4-20 X 2-1/2 black Pallet 2, bundle 1 Pallet 2, bundle 1 QTY 14 : AA6584 1/4-20 X 2 (BLACK) QTY 6 : AA6004 - 8-32 X 1/2 QTY 16: AA6212 1/4 X 3/4 black washer...
  • Page 24 STEP 17: Lay the (2C) left and (2D) right Towers on their backs. At the bottom of the (2C) left tower should be one network cord and two DC connections (one small, one large). Carefully pull them out and ensure no damage has been done to the network cable. At the bottom of the (2D) right tower should be two network cords and two DC connections (one small, one large).
  • Page 25 STEP 18b: Attach 2C and 2D target towers to the side poles (1P) using one AA6125 Allen and AA6212 washer. Repeat for the other side. AA6125 1/4-20 X 2-1/2 black X’s 2 AA6212 1/4 X 3/4 FLAT WASHER BLACK Push ethernet and power cables to the bottom of the game.
  • Page 26 STEP 19: Install the 2M and 2N lower panel covers to both score towers using three AA6004 each. USE A SCREW DRIVER or lower Torq setting. These covers must remain removal for future service. AA6004 - 8-32 X 1/2 X’s 3 Per tower. X’s 6 Total.
  • Page 27 STEP 21: Position 2A inner tower to the left and 2B inner tower to the right at the back of the cabinet. Align the hole at the bottom of the towers with the holes already at the back. T-Molding goes to the bottom! STEP 22: Secure each of the inner towers using four AA6584 black Allen bolts and AA6212 black washers.
  • Page 28 Chapter 4 Assembly for Steps 23-26.
  • Page 29 Parts Needed Pallet 1, loose, 1D Two 6’ or 8’ ladders. Pallet 2, bundle 1 HARDWARE NEEDED QTY 4 : AA6584 1/4-20 X 2 (BLACK) QTY 6 : AA6004 - 8-32 X 1/2 QTY 4 : AA6212 1/4 X 3/4 black washer Recommend 3 helpers...
  • Page 30 STEP 23: THIS STEP REQUIRES HELPERS! DO NOT ATTEMPT TO LIFT ALONE! RECOMMEND THREE PEOPLE TO INSTALL THIS ASSEMBLY. DO NOT ATTEMPT TO INSTALL FROM THE FRONT! THIRD PERSON POSITION SHOULD BE AT THE FRONT, INSIDE THE CABINET TO MOUNT HARDWARE AND STABILIZE CENTER TARGET/JUMBOTRON ASSEMBLY.
  • Page 31 STEP 24: Secure each inner tower to the jumbotron using three AA6584 black Allen bolts and AA6212 black washers. Use two AA6584 black Allen bolts and AA6212 black washers on each side of the center target assembly. AA6584 1/4-20 X 2 (BLACK) X’s 4 AA6212 1/4 X 3/4 FLAT WASHER BLACK...
  • Page 32 STEP 26: On each inner tower and on both sides attach a DB3034 cover using three AA6004 black Allen bolts. X’s 6 AA6004 - 8-32 Jumbotron Installed...
  • Page 33 Chapter 5 Assembly for Steps 27-43.
  • Page 34 Parts Needed HARDWARE NEEDED Pallet 2, Loose, 2H AA6369 - 1/4-20 X 3-1/2 BLACK QTY 2 AA6125 1/4-20 X 2-1/2 black Allen QTY 6 PC60622 1/4-20 X 1 (BLACK) QTY 16 AA6281 1/4-20 X 1-1/2 black Allen QTY6 AA6212 1/4 X 3/4 FLAT WASHER BLACK QTY 30 AA6966 1/4-20 nylock black nut QTY 4 Pallet 2, Loose, 2G Pallet 1, bundle1, 1R...
  • Page 35 STEP 27: Position the 2G (left) cage assemble on the left side and against the 2C outer tower. STEP 28: DO NOT TIGHTEN HARDWARE Loosely secure the cage to the 2C outer tower using three PC60622 black Allen bolts and AA6212 black washers from the inside of the cabinet.
  • Page 36 STEP 29: DO NOT TIGHTEN HARDWARE Loosely secure the cage bottom to the cabinet using five PC60622 black Allen bolts and AA6212 black washers from the inside of the cabinet. X’s 5 PC60622 1/4-20 X AA6212 1/4 X 3/4 FLAT 1 (BLACK) WASHER BLACK STEP 30:...
  • Page 37 STEP 31: Secure the cage to the front cabinet legs using one AA6369 Black Allen Bolt and AA6212 black washer. X’s 1 AA6369 - 1/4-20 X 3-1/2 BLACK OUTSIDE AA6212 1/4 X 3/4 FLAT WASHER BLACK STEP 32: DO NOT TIGHTEN HARDWARE Secure the cage to 1Q using three AA6281 Black Allen Bolts and AA6212 black washers.
  • Page 38 STEP 33: Secure the cage assembly to the 2C left outer tower with one AA6125 black bolt and AA6212 black washer. AA6125 1/4-20 X 2-1/2 black Allen X’s 1 AA6212 1/4 X 3/4 FLAT WASHER BLACK STEP 34: Align the 2H right cage against the back tower.
  • Page 39 STEP 35: DO NOT TIGHTEN HARDWARE Secure the cage to the outer tower using three PC60622 black Allen bolts and AA6212 black washers from the inside of the cabinet. X’s 3 PC60622 1/4-20 X 1 (BLACK) AA6212 1/4 X 3/4 FLAT WASHER BLACK STEP 36: DO NOT TIGHTEN HARDWARE...
  • Page 40 STEP 37 Slide the 1R filler panel onto the 2H right cage top. STEP 38: Secure the cage to the front cabinet legs using one AA6369 Black Allen Bolt and AA6212 black washer. X’s 1 AA6369 - 1/4-20 X 3-1/2 BLACK OUTSIDE AA6212 1/4 X 3/4 FLAT WASHER BLACK...
  • Page 41 STEP 39: Secure the cage to the DB3158 using three AA6281 Black Allen Bolts and AA6212 black washers. X’s 3 AA6212 1/4 X 3/4 FLAT AA6281 1/4-20 X 1-1/2 BLACK WASHER BLACK STEP 40: Secure the cage assembly to the back tower with one AA6125 black bolt and AA6212 black washer. X’s 1 AA6125 1/4-20 X 2-1/2 black AA6212 1/4 X 3/4 FLAT...
  • Page 42 STEP 42: Slide the back 2K roof arch into the back legs. STEP 43: Loosely secure the 2K arch using two AA6125 Allen bolts and AA6212 washers from the backside and secure them with AA6966 nylon nuts at the front on both sides. X’s 4 DO NOT TIGHTEN AT THIS TIME.
  • Page 43 Chapter 6 Assembly for Steps 44- 51...
  • Page 44 Parts Needed HARDWARE NEEDED Pallet 2 addon, 4F PC60636 1/4-20 X 3 (BLACK) QTY 6 AA6125 1/4-20 X 2-1/2 Allen QTY 22 X’s 2 AA6212 1/4 X 3/4 FLAT WASHER QTY 28 Pallet 2 addon, 4G X’s 2 Pallet 2 addon, 4D Pallet 2 addon, 4B Pallet 2 addon, 4A Pallet 2 addon, 4E...
  • Page 45 STEP 44: Install the left 4A trim using three PC60636 bolts and three AA6212 washers. PC60636 1/4-20 X 3 QTY 3 AA6212 1/4 X 3/4 FLAT WASHER QTY 3 STEP 45: Install the left 4E trim using three PC60636 bolts and three AA6212 washers. PC60636 1/4-20 X 3 QTY 3 AA6212 1/4 X 3/4...
  • Page 46 STEP 47: Install the top 4C trim using two AA6125 bolts and AA6212 washers. AA6125 1/4-20 X 2-1/2 QTY 2 AA6212 1/4 X 3/4 FLAT WASHER QTY 2 STEP 48: Install the 4D top right trim using two AA6125 bolts and AA6212 washers from the back. Plug in LED harnesses at the top before securing.
  • Page 47 STEP 49: Connect the LED harnesses together. STEP 50: Install one 4F and 4G cover using four AA6125 bolts and AA6212 washers on each. AA6125 1/4-20 X 2-1/2 QTY 8 AA6212 1/4 X 3/4 FLAT WASHER QTY 8 STEP 51: REPEAT STEPS 48 to 50 but use part 4D for step 48.
  • Page 48 Chapter 7 Assembly for Steps 52-59.
  • Page 49 Parts Needed HARDWARE NEEDED AA6125 1/4-20 X 2-1/2 black Allen QTY 4 AA6584 1/4-20 X 2 (BLACK) QTY 20 AA6212 1/4 X 3/4 FLAT WASHER BLACK QTY 24 Pallet 1, loose, 1C Pallet 1, loose, 1B Pallet 1, loose, 1A...
  • Page 50 STEP 52: DO NOT TIGHTEN HARDWARE Install the 1C center button wall to the back of the game loosely with six AA6584 black Allen bolts and AA6212 black washers. X’s 6 AA6584 1/4-20 X 2 (BLACK) AA6212 1/4 X 3/4 black washer Front view Back view...
  • Page 51 STEP 53: Install the 1B right button wall to the back of the game using seven AA6584 black Allen bolts and AA6212 black washers. You might have to shift the upper archway bar. X’s 7 AA6584 1/4-20 X 2 (BLACK) AA6212 1/4 X 3/4 FLAT WASHER BLACK Front view...
  • Page 52 STEP 55: Install the 1A button wall to the back of the game using seven AA6584 black Allen bolts and AA6212 black washers. You might have to shift the upper archway. X’s 7 AA6584 1/4-20 X 2 (BLACK) AA6212 1/4 X 3/4 FLAT WASHER BLACK Front view Back view...
  • Page 53 STEP 57: Tower harnesses Insert cables from each tower assembly into the bottom holes.
  • Page 54 STEP 58: NETWORK CABLE FLOW The Network cable run starts from front of game to first coupler at the back. The other side of the coupler goes up the left score tower and back down into another coupler. Each tower has two network cables.
  • Page 56 STEP 59: Remove the upper center panel. From the back of the cabinet, the network cable on the left side comes from the middle tower on the left. The right side comes from the middle tower on the right. Both at the top. From the front of the cabinet you can reach in and route the cables up into the jumbotron assembly.
  • Page 57 Chapter 8 Assembly for Steps 60-63. HARDWARE NEEDED AA0655 - #8 X 3/4 Square pan head QTY6 Part Pallet 2, loose, 2F...
  • Page 58 STEP 60: Undo the front trim LED harnesses at either end and push them out side holes. Then uncoil the main harness run to that will go to the back of the game. Note the location of the ball gate harness. Remove keys attached to top of cabinet and put aside.
  • Page 59 STEP 61: Slide 2F front podium to the cabinet assembly. Unlock the center door and plug in ball gate harness. Plug in both left and right front trim LED harnesses. See Fig 2. Latch the front cabinet to the back cabinet using the provided latch tool. FIG 2:...
  • Page 60 STEP 62: Install the power inlet module with six AA0655 screws. Also apply DECALS from parts box (“CAUTION”, “WARNING”, “SUITABLE”) . X’s 6 Use the 6 holes with pilot holes that match the metal plate. Step 63: Install wire clips along the right side of the cabinet. Run the AC harness from the front to back using the wire clips to secure it to the cabinet.
  • Page 61 Chapter 9 Assembly for Steps 64- 69. HARDWARE NEEDED AA6369 - 1/4-20 X 3-1/2 BLACK QTY 6 AA6125 1/4-20 X 2-1/2 QTY 24 AA6584 1/4-20 X 2 QTY 8 PC60622 1/4-20 X 1 QTY 14 AA6966 1/4-20 nylock QTY 26 AA6212 1/4 X 3/4 FLAT WASHER QTY 49 DB3058 1/4 x large black washer...
  • Page 62 Pallet 2, bundle 1, 2R Pallet 2, bundle 1, 2R Pallet 2, bundle 1, 2R Pallet 2, bundle 1, 2R Pallet 2, bundle 1, 2Q Pallet 2, bundle 1, 2Q Pallet 1, bundle 2, 1T QTY 2 Pallet 1, loose, 1M Pallet 2, bundle 1, 3I...
  • Page 63 STEP 64: Attach three 1T’s to the top of the cabinet as shown. Secure using AA6369 bolt and AA6212 washer through the top and AA6212 washer and AA6966 NYLON nut at the bottom. X’s 6 X’s 6 AA6966 1/4-20 AA6369 - 1/4-20 X 3-1/2 BLACK NYLOCK nut X’s 12 AA6212 1/4 X 3/4...
  • Page 64 STEP 65: At the back and front of the cabinet, secure the 2S tarp with 20 AA6125 black Allen bolts and AA6185 large black washers at the top. From the bottom, use AA6212 black washer and AA6966 NYLON nuts. SEE RED ARROWS. 10 per back and front. X’s 20 AA6125 1/4-20 X 2-1/2 black AA6966 1/4-20...
  • Page 65 STEP 67: Insert and connect harness while attaching the upper marquee. STEP 68: Attach the marquee to the cabinet front using four AA6125 and four AA6212 washers at the front and four AA6212 washers and four AA6966 nylock nuts at the back. X’s 4 AA6125 1/4-20 X 2-1/2 Black X’s 4...
  • Page 66 STEP 69: Attach two 2Q ball deflectors using four AA6584 black Allen bolts and AA6212 black washers at the front, 2R mounting plate at the back. AA6584 1/4-20 X 2 X’s 8 AA6212 1/4 X 3/4 FLAT WASHER BLACK Game Assembly Completed!
  • Page 67 Universal Card link Connection See Wiring Insert for wire colors and which connections are used. Pin 1. +12v- Supply to Card System = Minimum of 2A available for the card systems and a Max of 3A. Pin 2. Coin 1 - input to the game PCB. Pin 3.
  • Page 68 PROGRAM SETTINGS - DIAGNOSTICS - VOLUME - POWER CONTROLS Located at the front is a center access panel. It contains the operator control panel boards, amplifier for volume, Fuse board, one DC power supply, and AC power control. Located in the middle of the playfield is another access hatch.

  • Page 69: Program Settings

    PROGRAM SETTINGS To enter programming mode, open the center access door and press the LEFT Front board’s “prog” button. The right Font board’s “prog” will NOT enter programming. The jumbotron will display the first option and the value for it. Use the “UP” and “DOWN” buttons or the left side arrows to change the value.
  • Page 70 Version 3.0.5 Option /Description Min/Max/Inc/Default Attract Time - How often attract audio is played in 30 seconds increments 0/30/1/1 COIN 1 - Cost of play per pulse. Set to 1 if using card swipe. 0/9/1/1 DBV - Cost of play for DBV or Coin line 2. NOT A MULTIPLIER! 0/9/1/1 Ticket Multiplier - 0 = Play for fun, 1 = Normal 1 to 1 ticket, 2 = ½...
  • Page 71 Diagnostics and trouble shooting guide Your game comes with extensive diagnostics to aid you in keeping your game running correctly. To access the diagnostics, open the left lower door assembly. Press the “SELECT” and “DOWN” buttons at the same time in attract mode. GAME MUST BE IN ATTRACT MODE TO ENTER DIAGNOSTICS In diagnostics, the Jumbotron will show the layout of the sensor boards.
  • Page 72 When in diagnostics if you press the “Press to enter initials” button it will cycle through the sensor board numbers and light the location of the sensor. Each press of any podium button will flash that button. You can use either side. When you press the “LEFT”...
  • Page 75 Tower Covers Part Numbers...
  • Page 76 DECAL PART NUMBERS...
  • Page 77 DB3216X Leaderboard Assembly and Parts The leaderboard assembly contains the leaderboard displays, two WR2032X five digit displays, Multiple LED strips, WH2236X matrix display board, 2 RB2009EX receiver sensors, 2 FP2009EX Transmitter boards, DB3102X Blocker arm and motor assembly, three DB2033X target boards, two ML2032X display boards, and a DB3068X Dot Matrix Grid.
  • Page 78 DB3216X Leaderboard Assembly and Parts WR2032X WR2032X NB2035DB SX2535DBX BLUE ML2032X - Display ML2032X - Display DB3054 - Display cover DB3054 - Display cover AA6953 - Hardware AA6953 - Hardware AA6753 AA6281 AA6281 DB3111 DB3112 PC60643 AA0644 RB2009EX AA0675 AA0675 FP2009EX DB3111 DB3155...
  • Page 79 Removing the DB3102X Blocker arm & Motor assembly 1) Remove DB3068X leaderboard display first then remove the four AA6177 screws holding the DB3154 Motor guard plate to the cabinet. 2) Remove the four AA6967 shoulder bolts and BL1086 springs. AA6967 BL1086 3) Remove the six AA6831 Phillip screws holding the Motor/gearbox assembly.
  • Page 80 DB3102X Swing Arm Assembly DB3100 DB1054 AA6212 DB3101 AA6915 PC60604 AA6831 DB7032X DB3849X - Button Target DB3847 E01667 AA6926 AA6177 PC60643 AA6584 ML2032X DB3845X DB2033X AA6203 AA0644...
  • Page 81 E02907BLX DB2033X BL4009 AA6020 AA0655 DB4001 AA6227 DB1045 DB4045 DB4045 DB1045 AA6072 E01662 AA6512 PC60610 DB1052 3 per game! DB1053 DB1051 WH3005 FB2008DBX Target Assembly DB3500X PC60610 AA6438...
  • Page 82 DB3277X- ball-gate Assembly NS1022-P802 (black) NS1022-P509 (blue) ZS2015X Actuator...

  • Page 83: Main Board

    BALLGATE: How to measure the voltage at connector P15 when testing your actuators. Do not measure between the black/blue and orange/blue on P15, you will never see the12VDC. Use pin 5 or 6 on P11 (where the black wires go to). Your should see the following: ●...
  • Page 84 Trouble Shooting Tips DB2033X - TARGET BOARDS On power up each target board will first display the version number of the firmware. It then will identify their location ID. Any board that is showing “888” has failed and should be replaced.
  • Page 85 Target arms not moving or partially but motor is fine O-RING or Spring washers are pinched in assembly. Two springs where used. Short spring washers have Ø1.225 O.D.; Tall spring washers have Ø1.103 O.D. Short spring washers require two to be installed. How to test your target assembly: Coin in a 2 player game and allow it to run All targets should present in round 2, final score should be 0-0...
  • Page 86 Spare Parts list: Electronic Parts: Misc. Items. DB2033X Target Board DB3024X Case of 6 dodgeballs FB2008DBX Target Motor DB4001 O-Ring .326 ZS2015X Actuator DB1052 Target Wave Spring E01667 Large push button E00039 8 Amp Fast BLO fuse GF2008D Gear box for swing arm E08702 7’...

  • Page 87: Warranty Policy

    (including labor) that is performed by such a distributor. Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360 Fax #: (716) – 759 – 0884 www.icegame.com...
