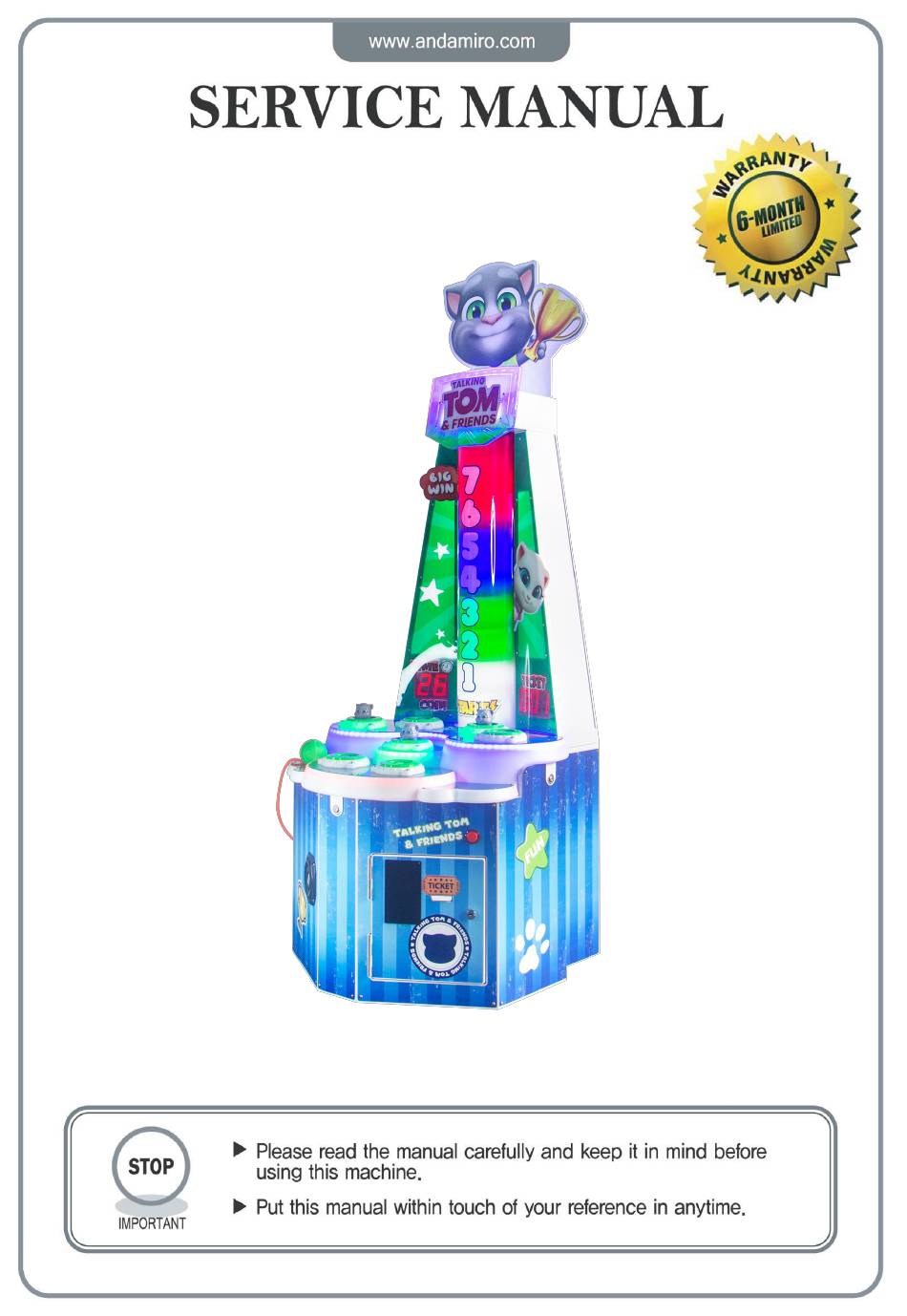

- Page 1 ISSUE DATE:Dec. 1, 2024...
- Page 10 CONTENT 1. SPECIFICATION -----------------------------------------------------------------------------------------1 2. COMPONENTS---------------------------------------------------------------------------------------------2 3. INSTALLATION-------------------------------------------------------------------------------------------3 4. PARTS AND FUNCTIONS---------------------------------------------------------------------------------5 5. GAME INSTRUCTION ------------------------------------------------------------------------------------7 6. SETUP SETTING----------------------------------------------------------------------------------------------8 6.1 HOW TO ENTER SETUP MENU--------------------------------------------------------------------8 6.2 GAME SETUP-----------------------------------------------------------------------------------8 6.3 TICKET SETUP------------------------------------------------------------------------------------------9 6.4 TICKET SETUP INSTRUCTIONS--------------------------------------------------------------10 6.5 TEST MODE------------------------------------------------------------------------------------------11 7. BOARD INFORMATION----------------------------------------------------------------------------------13 8.
- Page 11 1. SPECIFICATION Model Talking Tom Whack 2 Reference Code FA-900 Standby Power 150W Operating Power(Max) 450W Dimensions (W*D*H) 740mm*710mm*1900mm Weight (KG) 70kgs Rated Voltage 220V Seats Users Range of Ages 3 years+...
- Page 12 2. COMPONENTS Please make sure that you have received the items list as below Description Spec. Picture Remark Manual Blue key for coin acceptor, access Blue Key door and line module Red key for coin Red Key Power cord Screws...
- Page 13 3. INSTALLATION Top signboard Installation...
- Page 14 ① Install the Talking Tom Cat Shelving Unit as the Picture shown. ② Tighten the screws from the back with a Phillips screwdriver to complete the installation.
- Page 15 4. PARTS AND FUNCTIONS Stage light ： When the player reaches the 7th level, there will be stage lights to celebrate. Scoreboard Game time/ Coin amount Hammer: To hit the whack Coin Acceptor...
- Page 16 How to move/lock the machine The machine must be placed on a horizontal surface. It comes with 4 foot pads and 4 casters. When moving the machine: Adjust the foot pads to the highest point and keep at least 1cm away from the floor.
- Page 17 5. GAME INSTRUCTION An interesting whack game. There are 7 holes, each containing a gopher that randomly jumps while the player hits it with hammers to score points. The scoreboard shows the current score level from 1 to 7, and tickets are awarded at the end of the countdown. 1.
- Page 18 6. SETUP SETTINGS 6.1 How to enter setup menu Background key position Picture How to operate The 8-bit dip switch on the left for 1P&2P game settings, while the right 8-bit dip switch is for ticket settings. Detailed information can be found in sections 5.2 and 5.3.
- Page 19 6.3 Ticket setup (The 8-bit dip switch on the right ) Final tickets = ( consolation prize + default option) * Half ticket rate Consolation prize 0 Consolation prize 1 Consolation prize 2 Consolation prize 3 Consolation prize 4 Consolation prize 5 Consolation prize 6 Consolation prize 7 Option 1...
- Page 20 6.4 Ticket setup The consolation prize 0-7 corresponds to the number of tickets from 0 to 7, which will be added to the final ticket count. Option Ticket amount Option 1 Option 2 Option 3 Option 4 Option 5 Option 6 Option 7 Option 8 Option 9...
- Page 21 ⓐ TIME FND A1, press the Test Key to enter. LED & FND test ⓑ FND loop demonstration in order of 0.0. ~ 9.9. (Performance time 0.5s) ⓒ Press the Test Key to exit the test mode. ⓐ TIME FND B1, press the Test Key to enter. ⓑ...
- Page 22 ⓐ TIME FND H1, press the Test Key to enter. ⓑ The Solenoids are moved in the following sequence during the aging test. 1) Action : ① → ② → ③ → ④ → ⑤ → ⑥ → ⑦ repeat the lifts in sequence. 2) The ①Solenoid rises, wait for 3 seconds, then fall.
- Page 23 7. BOARD INFORMATION 7-1 Mainboard 7-2 Control board...
- Page 24 CIRCUIT DIAGRAM Pinboard COM2 8-1 Main board Level light Pinboard COM1 Main Board Stage light USB1 Speaker FND signal 8-2 Pinboard Two-FND FND signal Three-FND 24V 25A Power supply 10A Air switch 12V 29A Power supply 10A Air switch AC input...
- Page 25 8-3 Solenoid control board Solenoid 7 Solenoid 4 Solenoid 5 Solenoid 6 Solenoid 1 Solenoid 2 Solenoid 3 Solenoid Solenoid Solenoid Solenoid Solenoid Solenoid Solenoid light 7 light 3 light 4 light 6 light 2 light 5 light 1 Pinboard COM2 Solenoid control board Pinboard COM1 Solenoid...
- Page 26 9. TROUBLE SHOOTING 9-1 Machine can not boot, no electricity. Please check if 220V power cable is connected well.(picture 1) Cable connected well Poor connection: re-plug the cable Please check if the power supply cable is properly connected. (picture 1) If cable is connected well, but the Poor connection: re-plug the cable LED light of the power supply is...
- Page 27 9-2 Power on machine, LED light is working, but monitor has no display Please check whether the cable is connected well from 12V 16.5A power supply to main board. Poor connection: re-plug the cable Cable connected well If cable connect well, power supply indicator is on, it might be main board problem, please contact with manufacture...
- Page 28 9-4 Power on, machine with the sound but the whack no pop-out Check whether the cable to the turntable control board is connected well (picture 4). Cable connected well Poor connection: plug it again Check if the 24V voltage indicator (picture 4) on the main board is turned on.
- Page 29 10.ERROR CODE Code Meanings Solving The solenoid coils are faulty Check if the solenoid coil is short-circuited. 1. Check the coil running status and cable More than 4pcs gopher coils or connection. sensors are damaged. 2. Check the optical input status and cable connection.
- Page 30 M2220HAM005 FA-900 Talking Tom whack -Rod head of metal M2220HAM006 FA-900 Talking Tom whack Gopher barrel fixed collar M2220HAM007 FA-900 Talking Tom whack 2 Digit display_PCBA M2220HAM008 FA-900 Talking Tom whack 3 Digit display_PCBA M2220HAM009 FA-900 Talking Tom whack 24V 25A power supply...
- Page 31 ▼1 ▼2 ▼3 ▼4 ▼5 ▼6 ▼7 ▼8 ▼9 ▼10 ▼11 ▼12 ▼13 ▼14 ▼15 ▼16 ▼17 ▼18 ▼19 ▼20 ▼21 ▼22 ▼23 ▼24 ▼25 ▼26 ▼27 ▼28...
- Page 32 ▼29 ▼30 ▼31 ▼32 ▼33 ▼34 ▼35...
