NEUTRIK NAC3MX-W powerCON TRUE1 Operating & Assembly Instruction

R
OPERATING & ASSEMBLY INSTRUCTION

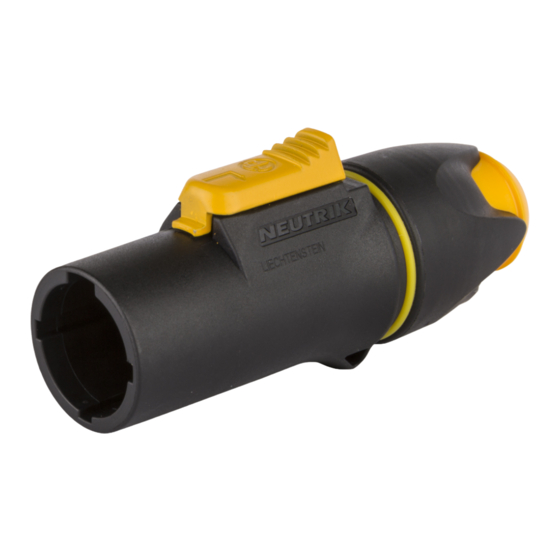

NAC3MX-W

A. OPERATING INSTRUCTION

Application:
The powerCON TRUE1 system is certified as a connector with breaking capacity according
IEC 60320, VDE 0625. It is intended for use as an appliance coupler and interconnection coupler.
It serves to supply power to an appliance and from an appliance to other equipment.
To be installed by qualified person only.

Connector Assignment:

APPLIANCE INLET
NAC3MPX
Power IN
NAC3FX-W
(Connector)

Approval based:

Rating:

Cable Type:

Strain Relief:

Cable O.D.:

B. ASSEMBLY INSTRUCTION

A
Insert cable into the bushing and housing.
Note: "Apply cable pulling
lubricant to cable jacket."
C
Place the chuck over
the cable.
D
Prepare the cable as
shown.
BDA 380
|
powerCON TRUE1
APPLIANCE OUTLET
Power OUT
NAC3MX-W
(Plug connector)
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
2
H05VV-F3G 1.0 mm , Length max. 2 m
H05VV-F3G 1.5 - 2.5 mm
2
H07RN-F3G 1.5 mm
White chuck
6.0 - 12.0 mm
C
PE 23 mm
VDE (EN 60320-1/EN60320-2-2)
NAC3FPX
NAC3FPX-ST
NAC3FX-W
(Connector)
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJTOW, SJOOW 3 x 12 AWG
2
White chuck
6.0 - 12.0 mm
B
Separate the housing
from the bushing (cable
remain in bushing)
Recommendation:
i
Wire Pulling Lubricant - LUB-I/0.95
from 3M
20 mm
[0.787"]
8 mm
[0.32"]
[0.9"]
UL (UL 498 / CSA C22.2 No. 182.3)
APPLIANCE
INLET OUTLET
COMBINATION
NAC3PX
Power IN
Power OUT
NAC3MX-W
(Plug connector)
TM
20 mm
[0.787"]
PE 23 mm
[0.9"]
8 mm
[0.32"]
Page 1
