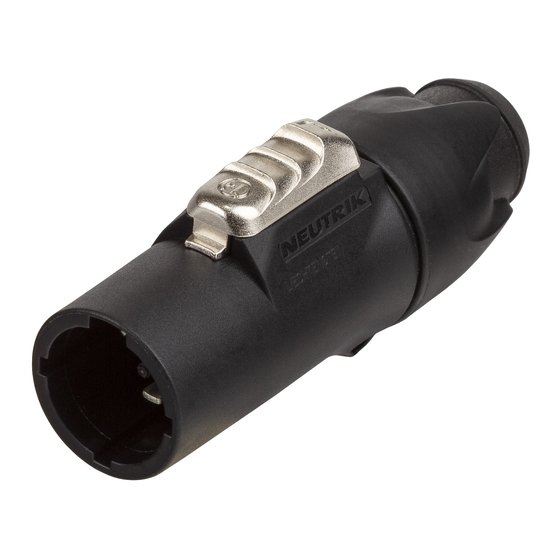

NEUTRIK powerCON TRUE1 TOP NAC3MX-W-TOP Operating & Assembly Instructions

R
NAC3
A. APPLICATION INSTRUCTION
Application:
CON
The power TRUE1 system is certified as
IEC 60320, VDE 0625.
It serves to supply power to
To be installed by qualified person only.
CONNECTOR ASSIGNMENT:
APPLIANCE INLET
NAC3MPX-TOP
NAC3MPX-WOT-TOP
Power IN
NAC3FX-W-TOP
(Connector)
CON
power TRUE1 TOP line is full backward compatible with the preceding power
Approval based:
Rating:
Cable Type:
Strain Relief:
Cable O.D.:
UL50E environmental rating
Enclosure Type 4 when mated with cord connector NAC3FX-W-TOP or mated with appliance outlet
NAC3FPX*-TOP with sealing cover SCNAC-FPX and NAC3PX-TOP with sealing cover SCNAC-PX.
B. ASSEMBLY INSTRUCTION
A
Insert cable into the bushing and housing.
Note: "Apply cable pulling
lubricant to cable jacket."
C Place the chuck over
the cable.
D Prepare the cable as
shown.
BDA 542
M -W-TOP X
It is intended for use as
an appliance and from an appliance to other equipment.
APPLIANCE OUTLET
NAC3MX-W-TOP
(Plug connector)
VDE
EN 60320-1/EN60320-2-2
250 V ac / 16 A
H05VV-F3G 1.0 mm , Length max. 2 m 2
H05VV-F3G 1.5 - 2.5 mm
H07RN-F3G 1.5 mm 2
White chuck
6.0 - 12.0 mm
VDE (EN 60320-1/EN60320-2-2)
ASSEMBLY INSTRUCTION
|
CON
power
a connector with breaking cap
an appliance coupler and interconnection coupler.
NAC3FPX-TOP
NAC3FPX-WOT-TOP
NAC3FPX-ST-TOP
Power OUT
NAC3FX-W-TOP
(Connector)
UL
UL 498 / CSA C22.2 No. 182.3
250 V ac / 20 A
SJTOW, SJOOW 3 x 12 AWG
2
White chuck
6.0 - 12.0 mm
Separate the housing
B
from the bushing (cable
remain in bushing)
C
i
2 mm 0
[ 0.787 "]
8 mm
[0.32"]
PE 23 mm
[ 0.9 "]
UL (UL 498 / CSA C22.2 No. 182.3)
® TRU 1 E TOP
ac ity according
APPLIANCE INLET / OUTLET
u
Combination
NAC3PX-TOP
Power IN
Power OUT
NAC3MX-W-TOP
(Plug connector)
CON
TRUE1 products.
Recommendation:
Wire Pulling Lubricant - LUB-I/0.95
from 3M
TM
2 mm 0
[ 0.787
PE 23 mm
"]
8 mm
[0.32"]
[ 0.9 "]
