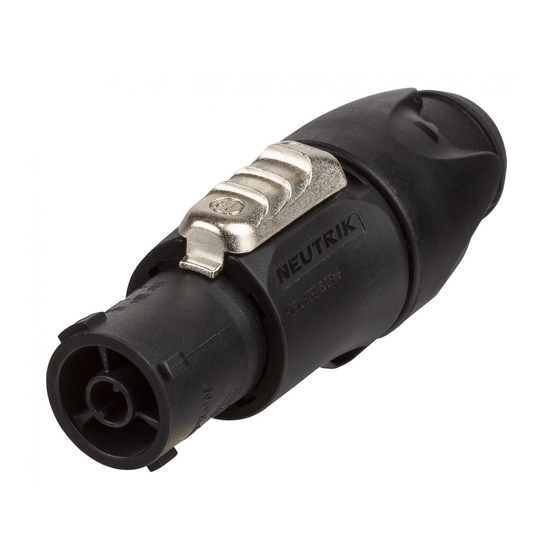

NEUTRIK powerCON TRUE1 TOP NAC3FX-W-TOP Application Instruction

R
APPLICATION & ASSEMBLY INSTRUCTION
NAC3FX-W-TOP
A APPLICATION INSTRUCTION
Application:
· The powerCON TRUE1 system is certified as a connector with breaking capacity according IEC 60320-1.
®
· It is intended for use as an appliance coupler and interconnection coupler.
· It serves to supply power to an appliance and from an appliance to other equipment.
· To be installed by qualified person only.
CONNECTOR ASSIGNMENT:
APPLIANCE INLET
NAC3MPX-TOP
NAC3MPX-WOT-TOP
Power IN
NAC3FX-W-TOP
(Connector)
powerCON TRUE1 TOP line is full backward compatible with the preceding powerCON TRUE1 products. ® ®
Approval based:
Rating:
Cable Type:
Cable O.D.:
B ASSEMBLY INFORMATION
A
Insert cable into the bushing and housing.
Note: "Apply cable pulling
lubricant to cable jacket."
i
C
Place chuck over the
cable.
D
Prepare cable as
shown.
BDA 541
®
APPLIANCE OUTLET
NAC3MX-W-TOP
(Plug connector)
VDE
EN 60320-1
250 V ac / 16 A
2
H05VV-F3G 1.0 mm , Length max. 2 m
H05VV-F3G 1.5 - 2.5 mm
H07RN-F3G 1.5 mm 2
6.0 - 12.0 mm
VDE
EN 60320-1
|
powerCON TRUE1 TOP
APPLIANCE INLET / OUTLET
u
NAC3FPX-TOP
NAC3PX-TOP
NAC3FPX-WOT-TOP
NAC3FPX-ST-TOP
Power OUT
NAC3FX-W-TOP
(Connector)
UL 60320-1
CAN/CSA-C22.2 No. 60320-1
250 V ac / 20 A
SJTOW, SJOOW 3 x 12 AWG
2
6.0 - 12.0 mm
B
Separate the
housing from the
bushing (cable
remain in bushing)
C
i
20 mm
[0.787"]
8 mm
[0.32"]
PE 23 mm
[0.9"]
® ®
Combination
Power IN
Power OUT
NAC3MX-W-TOP
(Plug connector)
Recommendation:
Wire Pulling Lubricant - LUB-I/0.95
from 3M TM
20 mm
[0.787"]
PE 23 mm
UL 60320-1
CAN/CSA-C22.2 No. 60320-1
8 mm
[0.32"]
[0.9"]
Page 1
