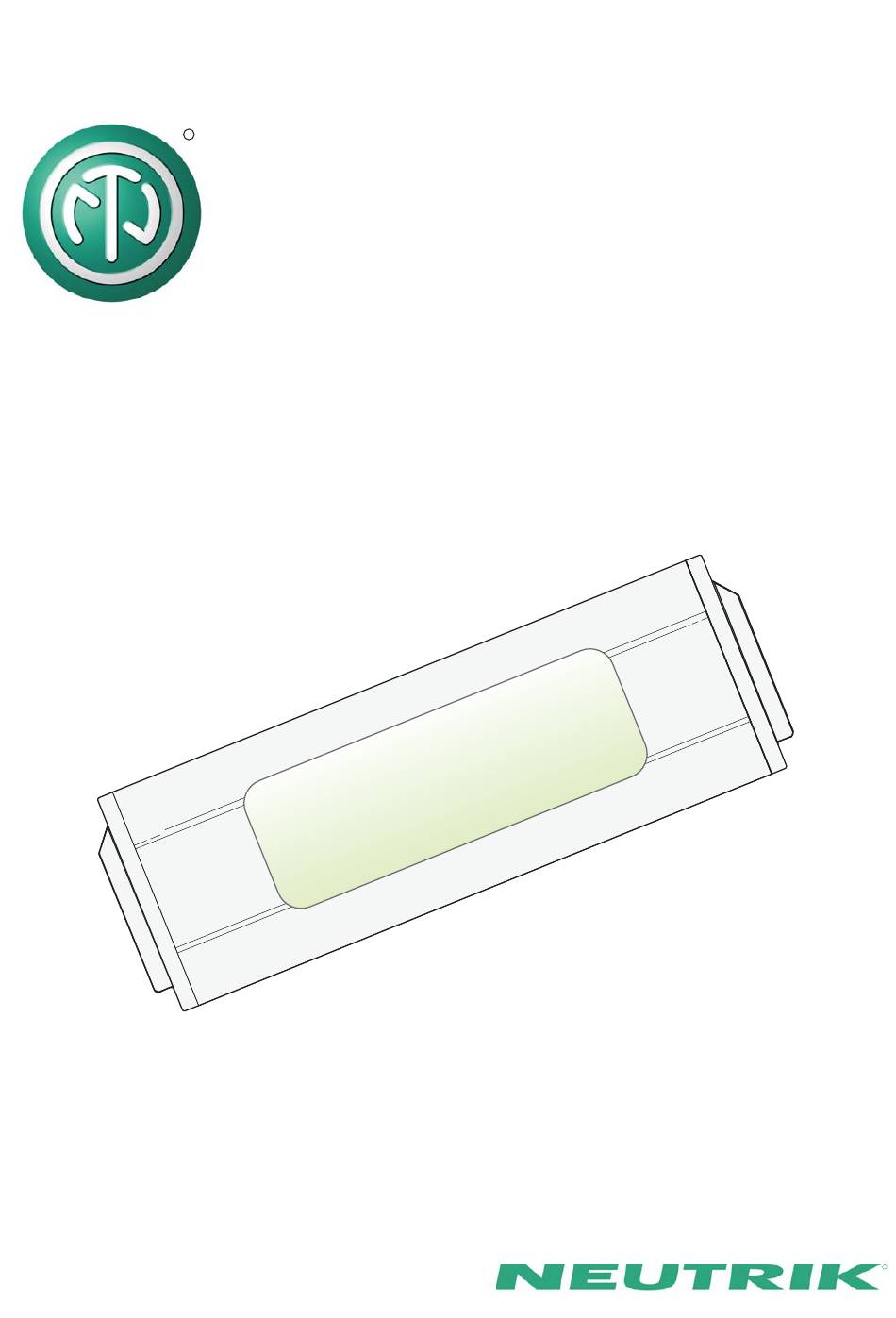

- Page 1 HANDLING INSTRUCTION opticalCON Coupler MAINTENANCE www.neutrik.com...
- Page 2 optical Coupler MAINTENANCE CAUTION: Laser radiation, do not stare into beam! Do not disassemble opticalCON couplers, if not required. Sealing shutter mechanism of the opticalCON avoids contamination of the ferrule locked inside. Dust-proof design reduces maintenance intervals to a minimum; if nevertheless necessary, follow the maintenance procedure below to avoid damages on ferrules due to improper cleaning.
- Page 3 opticalCON Coupler MAINTENANCE General Overhaul If increased attenuation cannot be reduced with dry cleaning (section A), a general overhaul is recommended. The following cleaning procedure is carried out on the example of an opticalCON DUO coupler. Untighten screws on both opticalCON chassis with a screw driver.
- Page 4 +49 8131 / 280 890 +49 8131 / 280 830 Draft. Nr.: BDA 358 / 3102M2131 Update: 01.02.2013 Data subject to change without prior notice. 2013 NEUTRIK . ALL RIGHTS RESERVED. NEUTRIK are registered trademark. © ® ® www.neutrik.com www.neutrik.com...
