Installa�on -

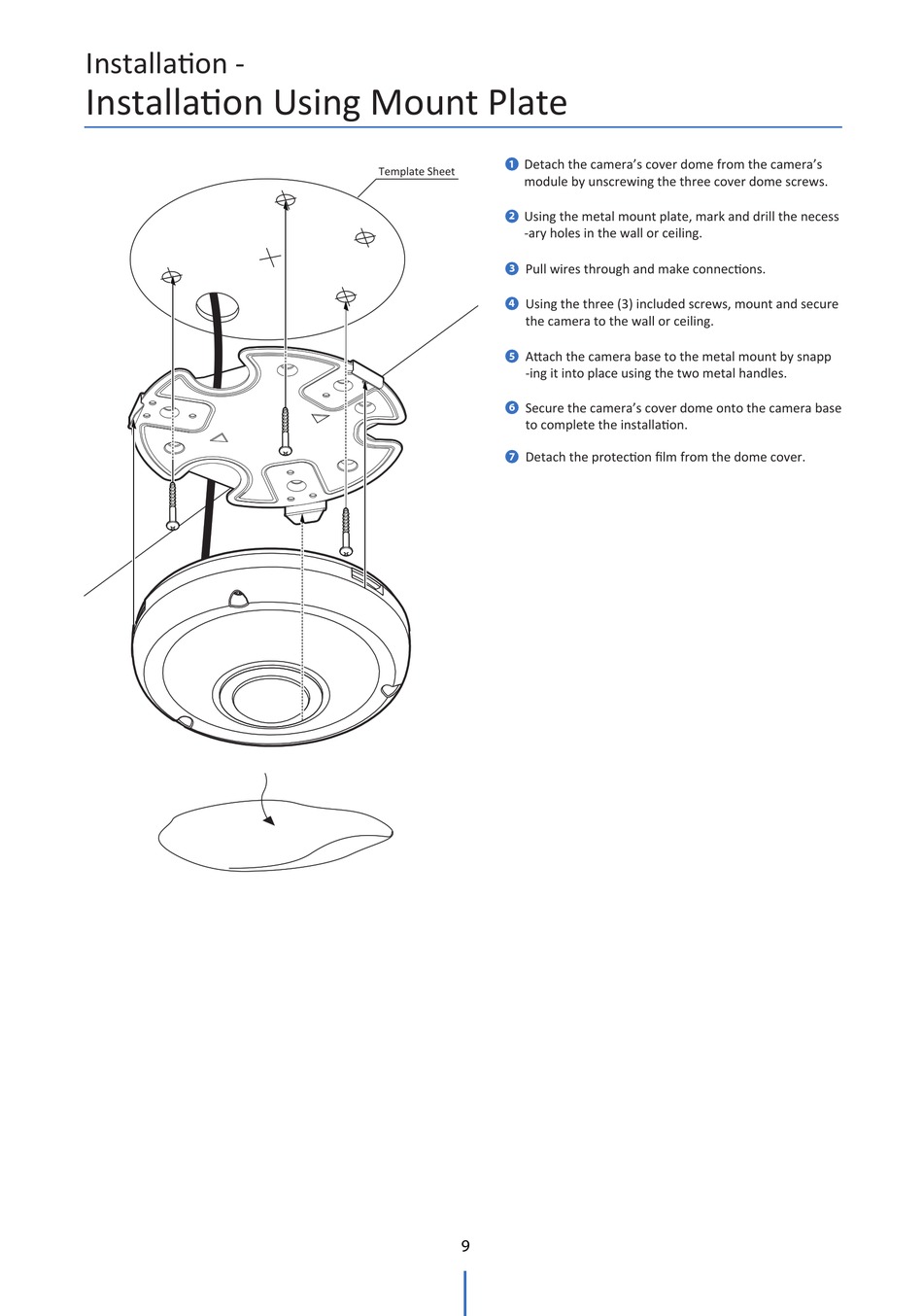

Installa�on Using Mount Plate
Detach the camera's cover dome from the camera's
1
Template Sheet
module by unscrewing the three cover dome screws.
Using the metal mount plate, mark and drill the necess
2
-ary holes in the wall or ceiling.
Pull wires through and make connec�ons.
3
Using the three (3) included screws, mount and secure
4
the camera to the wall or ceiling.
A�ach the camera base to the metal mount by snapp
5
-ing it into place using the two metal handles.
Secure the camera's cover dome onto the camera base
6
to complete the installa�on.
Detach the protec�on film from the dome cover.
7
9
