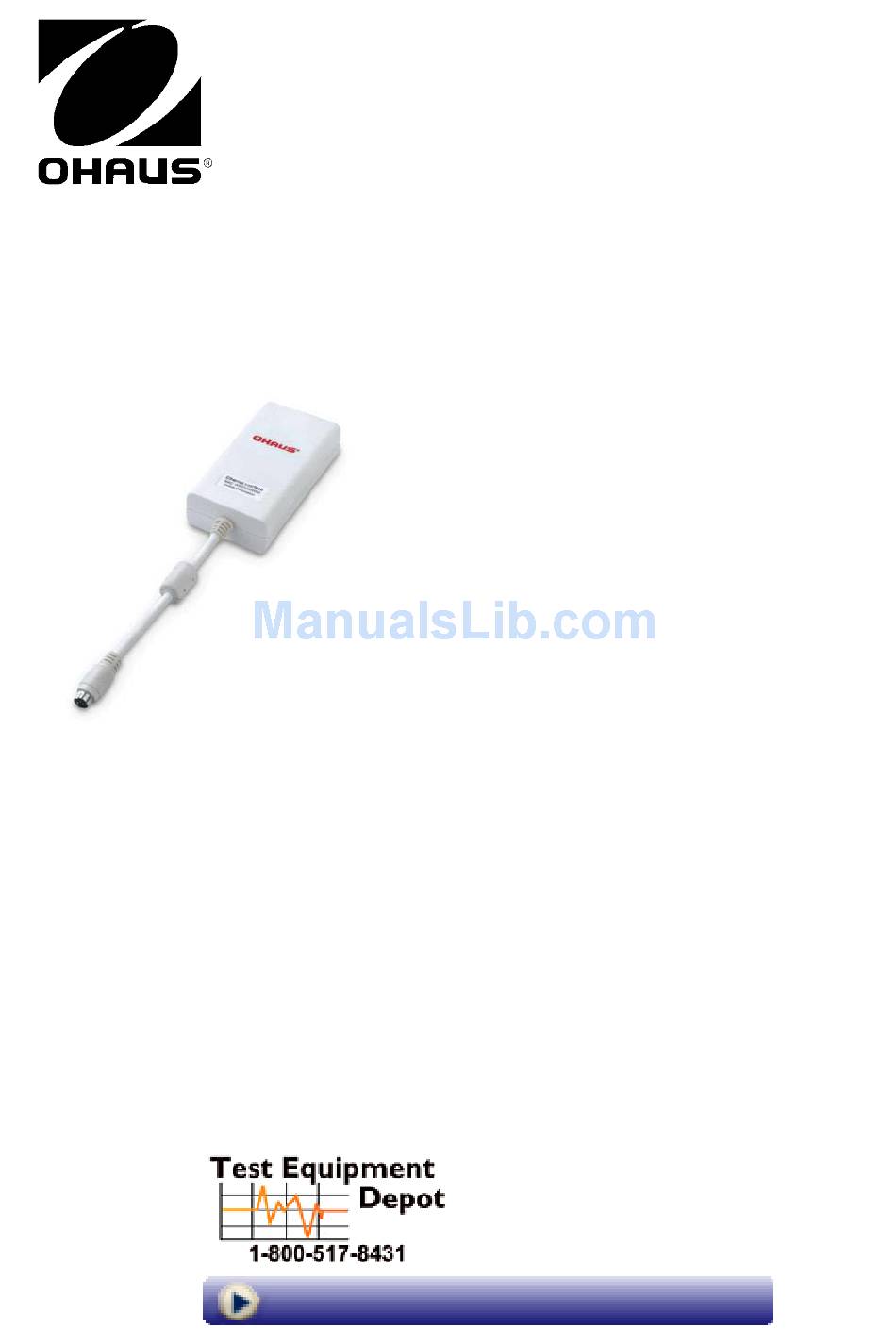

- Page 1 Scout Ethernet Interface INSTRUCTION MANUAL 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
-
Page 3: Interface Installation

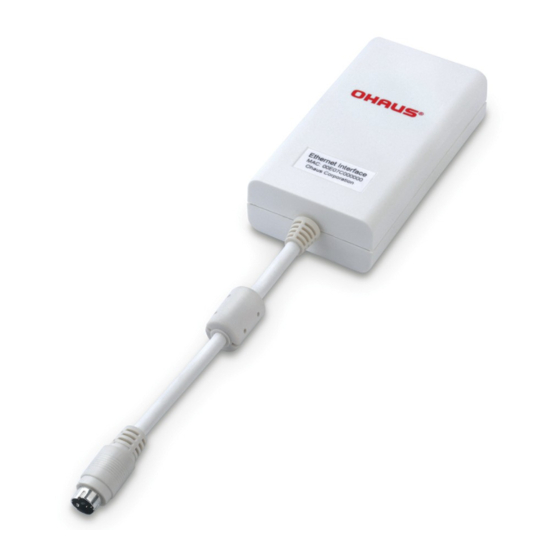

Ethernet Interface EN-1 INTRODUCTION This Interface Kit is for use with Ohaus Scout STX, SPX, SKX and SJX series products. INTERFACE INSTALLATION Install the Interface module on the mini DIN port (round connector) located at the rear side of the balance as shown. During this process, please make sure the balance is powered off. -
Page 4: Setup Definitions
EN-2 Ethernet Interface SETUP DEFINITIONS Menu Settings Explanation PRINT / A. Print – Off Only sends data when PRINT is pressed. Balance only transmits stable data. PRINT / A.Print / On.Stable – Load, Load: Print stable value excluding zero Load.Zero Load.Zero: Print stable value including zero PRINT / A.Print / interval - (xx) sec Balance sends data every (xx) seconds. -
Page 5: Operation
With the interface installed the balance will operate in several ways according to the settings. Print format can be switched by xFMT user command. New Scout Print Format (Default Format): Output String (Non Check Weighing Applications): [weight] 11 characters (right justified) - Page 6 6 characters (right justified) [Term] 2 characters Example: A.Print: off; Stable: off *****192.21_****g_*_**_Accept Stable reading, *******0.01_****g_?_**__Under Unstable reading Scout Pro Print Format 1 (for the models 303/123/202/402/602/2001/6001/ 401FZH/601FZH/6000FZH): Output String: [weight] 12 characters (right justified) [space] 1 character [unit] 5 characters (left justified)
- Page 7 Ethernet Interface EN-5 Output example: ********0.00_g****_* *******12.73_g****_? ********0.85_oz***_WET*WT Scout Pro Print Format 2 (for the models 401/601/6000): Output String: [weight] 11 or 12 characters (right justified) [space] 1 character [unit] 1~5 characters [space] 1 character [stability indicator] 1 character; "?" when unstable, space when stable...
- Page 8 Print Molar Mass 0 = print unstable data, 1 = print stable only xFMT 0 = New Scout print format (default) ; 1 = Scout Pro print format 1; 2 = Scout Pro print format 2; 3 = for certain POS system.
-
Page 9: Ethernet Configuration
3. Open the IE Browser and enter the default IP address of the Ethernet Interface Kit "169.254.1.1" ( ), the browser will show below page: User: ohaus Password: ohaus 4. Click the "Network Configuration" on the left side, and input the user & password. Then click "OK" to proceed. - Page 10 To use static IP address, disable the DHCP: and then set the Ethernet configuration parameters. ACCESSORIES For a complete listing of Ohaus printers and other accessories, contact Ohaus Corporation or visit www.ohaus.com. COMPLIANCE This accessory has been tested and complies with the approvals listed in the applicable Instruction Manual.
- Page 11 Should this device be passed on to other parties (for private or professional use), the content of this regulation must also be related. For disposal instructions in Europe, refer to www.ohaus.com/weee. Thank you for your contribution to environmental protection.
- Page 13 Visit us at www.TestEquipmentDepot.com OHAUS Corporation 7 Campus Drive Suite 310 Parsippany, NJ 07054 USA Tel: +1 973 377 9000 Fax: +1 973 944 7177 With offices worldwide *30269076* P/N 30269076 C © 2016 Ohaus Corporation, all rights reserved Printed in China...
