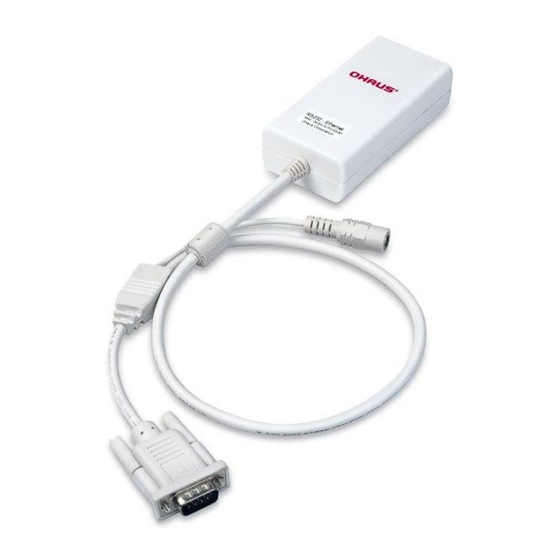

RS232 Interface
Instruction Manual

Advertisement

loading

Related Manuals for OHAUS RS232

Summary of Contents for OHAUS RS232

  • Page 1 RS232 Interface Instruction Manual...

  • Page 3: Interface Installation

    Upon installation of the interface, the balance will recognize the RS232 Interface and add relevant items to the menu. Configure the balance to the desired RS232 and printing parameters; refer to the balance User Manual for assistance in using the menus.

  • Page 4: Setup Definitions

    Active pins: Pin 2 = TXD, Pin 3 = RXD, Pin 5 = Ground, Pins 4 and 6 are connected for hardware handshake, Pin 7 = CTS, Pin 8 = RTS. The Interface connector will connect directly to a computer, an Ohaus printer and many other printers. OPERATION...
  • Page 5 RS232 Interface EN-3 Output examples (space indicated by ‘*’): ********0.00*g***** *******12.73*g****? *******12.72*g****? ******0.4500*oz**** ******0.5950*oz***? ***********3*PCS**? ***********3*PCS*** ********0.85*oz*****WET*WT ********0.85*oz*****AIR*WT Output Format 2 (for the models 401/601/6000): Output String: [weight] 11~12 characters (right justified) [space] 1 character [unit] 1~5 characters [space] 1 character [stability indicator] 1 character;...
  • Page 6 EN-4 RS232 Interface Output example (space indicated by ‘*’): *******200*g*** *****15.06*g*** ********15*g***NET *******124*g*?*NET ********15*g***NET**00:00:02 *******122*g*?*NET**00:00:03 ********15*g***NET*UNDER ***5:10.75*lb:oz*?*NET*ACCEPT*00:00:05 ****0:*0.50*lb:oz*?*NET*UNDER*00:00:06 Traveler (TAx/SE) Output: Output String: [weight] 11 characters (right justified) [space] 1 character [unit] 1~5 characters [space] 1 character [stability indicator] 1 character; "?" when unstable, blank when stable...
  • Page 7 RS232 Interface EN-5 RS232 INPUT The balance will respond to various commands sent via the interface adapter. Terminate the following commands when with a [CR] or [CRLF]. Scout Pro and Traveler Commands print current mode turn Auto-print off Auto-print on, prints on stability...
  • Page 8 EN-6 RS232 Interface ACCESSORIES For a complete listing of Ohaus printers and other accessories, contact Ohaus Corporation or visit www.Ohaus.com COMPLIANCE This accessory has been tested and complies with the approvals listed in the applicable Instruction Manual. Disposal In conformance with the European Directive 2002/96 EC on Waste Electrical and Electronic Equipment (WEEE) this device may not be disposed of in domestic waste.
  • Page 10 офисо. www.ohaus.com *83032207* P/N 83032207 D © 2020 Ohaus Corporation, all rights reserved / todos los derechos reservados / tous droits ré servé s / Alle Rechte vorbehalten / tutti i diritti riservati /все права защищены. Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China / Stampato in Cina /...
