BLAUBERG Komfort EC D5B180 S14 User Manual

Air handling unit
Hide thumbs Also See for Komfort EC D5B180 S14:
Table of Contents

Advertisement

Quick Links

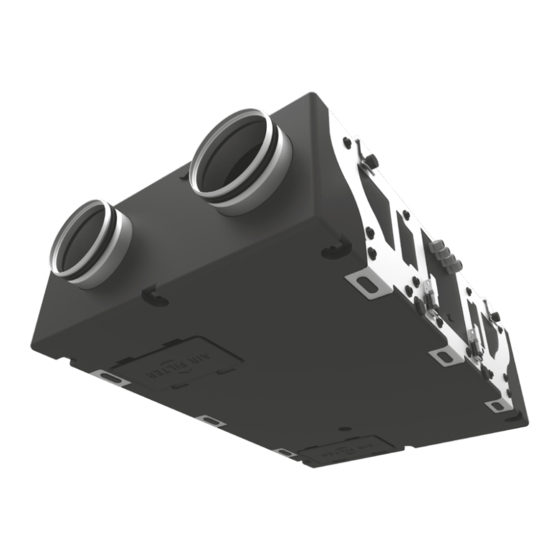

Air hAndling unit
Komfort EC D5B180 S14
Komfort EC D5B180-E S14
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Komfort EC D5B180 S14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Komfort EC D5B180 S14

Summary of Contents for BLAUBERG Komfort EC D5B180 S14

  • Page 1 Air hAndling unit Komfort EC D5B180 S14 Komfort EC D5B180-E S14 USER’S MANUAL...

  • Page 2: Table Of Contents

    Komfort EC d5B180(-E) S14 www.blauberg.us CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................6 Installation and set-up................................8 Connection to power mains ..............................12 Unit control .......................................
  • Page 3 Komfort EC d5B180(-E) S14 www.blauberg.us • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment.

  • Page 4: Komfort Ec D5B180(-E) S14

    Komfort EC d5B180(-E) S14 www.blauberg.us PURPOSE Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises. The unit is a component part and is not designed for stand-alone operation.

  • Page 5: Technical Data

    Komfort EC d5B180(-E) S14 www.blauberg.us TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %. The unit is rated as a Class I electrical appliance. Hazardous parts access and water ingress protection rating: •...

  • Page 6: Unit Design And Operating Principle

    Komfort EC d5B180(-E) S14 www.blauberg.us DESIGN AND OPERATING LOGIC The unit has the following operating logic: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter.
  • Page 7 Komfort EC d5B180(-E) S14 www.blauberg.us UNIT OPERATION MODES Heat recovery Warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows into the unit, where it is cleaned in the supply filter.

  • Page 8: Installation And Set-Up

    Komfort EC d5B180(-E) S14 www.blauberg.us MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. FS2 HUMIDITY SENSOR INSTALLATION AND CONNECTION The FS2 humidity sensor is not included in the delivery and can be ordered separately. The humidity sensor must be installed prior to unit mounting.
  • Page 9 Komfort EC d5B180(-E) S14 www.blauberg.us Expansion Fastener anchor Mounting bracket Fasteners for mounting are not included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical Data section.
  • Page 10 Komfort EC d5B180(-E) S14 www.blauberg.us Installation options according to diagrams 4-5 are possible for the Komfort EC D5B180-E modification. INTAKE AIR EXHAUST AIR SUPPLY AIR EXTRACT AIR SUPPLY AIR EXTRACT AIR Diagram 4. Wall vertical installation Diagram 5. Wall horizontal installation CONDENSATE DRAINAGE The Komfort EC D5B180 heat recovery units require condensate drainage.
  • Page 11 Komfort EC d5B180(-E) S14 www.blauberg.us Plug Drain pipe Drain hole location in case of installation according to the Diagram 1 Then connect the drain pipe to the sewage system using the SG-32 U-trap kit (available upon separate order). The pipes are required to have a minimum slope of 3°.

  • Page 12: Connection To Power Mains

    Komfort EC d5B180(-E) S14 www.blauberg.us CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE.

  • Page 13: Unit Control

    Komfort EC d5B180(-E) S14 www.blauberg.us UNIT CONTROL OPERATION USING SOFTWARE To work with the pre-installed software, connect the unit to a laptop or to a PC via a USB cable with a Type A and Type В connectors. The USB cable is not included in the delivery set.

  • Page 14: Technical Maintenance

    Komfort EC d5B180(-E) S14 www.blauberg.us TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. FOLLOW THE SAFETY REGULATIONS WHEN CARRYING OUT MAINTENANCE. Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1.
  • Page 15 Komfort EC d5B180(-E) S14 www.blauberg.us 3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft cloth, brush, or using compressed air.

  • Page 16: Storage And Transportation Regulations

    Komfort EC d5B180(-E) S14 www.blauberg.us STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +41 ˚F up to +104 ˚С and relative humidity up to 70 %.

  • Page 17: Manufacturer's Warranty

    Production meets standard operating requirements in the USA and Canada. BLAUBERG warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 24 months from the date of original purchase. The BLAUBERG warrants to the original purchaser of the unit that the integrated control unit will be free from defects in materials and workmanship for a period of 24 months from the date of original purchase.
  • Page 18 Komfort EC d5B180(-E) S14 www.blauberg.us...

  • Page 19: Certificate Of Acceptance

    Komfort EC d5B180(-E) S14 www.blauberg.us CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Komfort EC D5B180_____ S14 Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 BUSA170EN-01...

This manual is also suitable for:

Komfort ec d5b180-e s14
