Summary of Contents for BLAUBERG KOMFORT EC LB

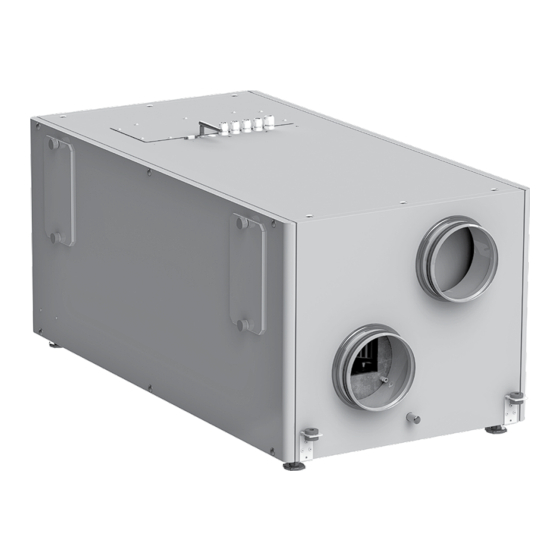

- Page 1 Air hAndling unit KOMFOrt EC lB KOMFOrt EC lBE KOMFOrt EC lB -E KOMFOrt EC lBE -E USER’S MANUAL...
-
Page 2: Table Of Contents
Warranty card ....................................17 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the KOMFORT EC LB(E) -(E) unit and all its modifications. - Page 3 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de Do not attach the product to the support using glue or adhesives. Use only the fastening method specified in the «User’s manual». Connection to the mains must be made through a disconnecting device, which is integrated...
-
Page 4: Purpose
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 5: Technical Data
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. -
Page 6: Unit Design And Operating Principle
The KOMFORT EC LBE S21, KOMFORT EC LBE -E S21 models are equipped with a built-in reheater for heating the supply air to a more comfortable temperature. An ENH electric duct heater can be optionally connected to the KOMFORT EC LB S21, KOMFORT EC LB -E S21 units. - Page 7 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de KOMFORT KOMFORT KOMFORT KOMFORT Air handling unit: EC LB EC LBE EC LB -E EC LBE -E Controller: S14 · · · · · · 1 Supply fan · · · · · · 2 Extract fan ·...
- Page 8 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de AIR FLOW DIRECTION INTAKE AIR EXTRACT AIR EXHAUST AIR SUPPLY AIR SERVICE SIDE CHANGE Remove the plugs from the panels on the service side and on the opposite side of the unit. Undo the screws securing the panels and remove them.
-
Page 9: Installation And Set-Up
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. FS2 HUMIDITY SENSOR INSTALLATION AND CONNECTION CAUTION! The humidity sensor in the exhaust air duct should be installed and connected before the unit mounting. - Page 10 All the units are equipped with a drain pan. The drain pan in energy recovery units (KOMFORT EC LB -E, KOMFORT EC LBE -E) is not used, since condensate is not formed due to the transfer of moisture from one air stream to the other through the enthalpy membrane.
-
Page 11: Connection To Power Mains
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. - Page 12 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de Wiring diagram (unit with an S14 controller) 0-10V 0-10V SM1* SM2* HV2* PK1* CO * ~230 VAC Maximum cable Designation Unit name Cable type Note length SM1* Supply air damper actuator 2x0.75 mm 20 m...
-
Page 13: Unit Control
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance. Dirty filters increase air resistance in the system and reduce supply air volume. The filters require cleaning not less than 3-4 times per year. - Page 14 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de 2. Heat exchanger maintenance (once per year). Some dust may accumulate on the heat exchanger even in case of regular maintenance of the filters. To maintain the high heat recovery efficiency, regular cleaning is required. To clean the heat exchanger, remove it from the unit and clean the heat exchanger by using compressed air or a vacuum cleaner.
-
Page 15: Troubleshooting
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot the connection error. The fan(s) does not start when the unit is on. Turn the unit off. Troubleshoot the motor jam and The motor is jammed, the impeller blades the impeller clogging. -
Page 16: Manufacturer's Warranty
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 17: Certificate Of Acceptance
KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 18 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de...
- Page 19 KOMFOrt EC lB(E) -(E) www.blaubergventilatoren.de...
- Page 20 www.blaubergventilatoren.de B109-1EN-02...
