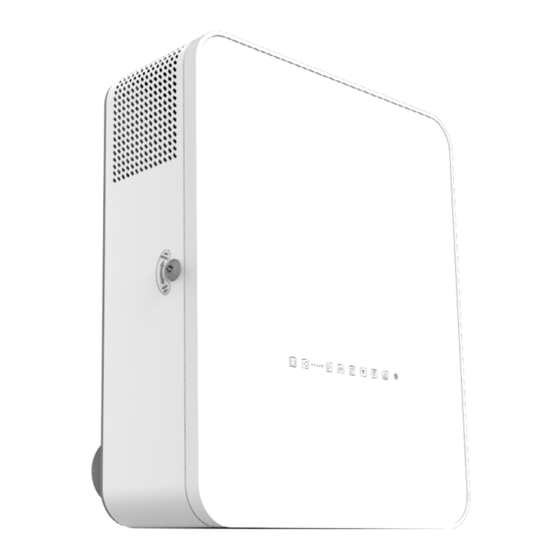

BLAUBERG Freshbox 100 WiFi User Manual
  1. Manuals
  2. Brands
  3. BLAUBERG Manuals
  4. Air Handlers
  5. Freshbox 100 WiFi
  6. User manual

BLAUBERG Freshbox 100 WiFi User Manual

Hide thumbs Also See for Freshbox 100 WiFi:
Table of Contents

Advertisement

Quick Links

Download this manual
Heat recovery air Handling unit
Freshbox 100 WiFi
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freshbox 100 WiFi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Freshbox 100 WiFi

Summary of Contents for BLAUBERG Freshbox 100 WiFi

  • Page 1 Heat recovery air Handling unit Freshbox 100 WiFi USER’S MANUAL...

  • Page 2: Table Of Contents

    Warranty card ....................................20 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Freshbox 100 WiFi unit and all its modifications.

  • Page 3: Safety Requirements

    Freshbox 100 WiFi www.blaubergventilatoren.de SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
  • Page 4 Freshbox 100 WiFi www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.

  • Page 5: Purpose

    Freshbox 100 WiFi www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.

  • Page 6: Technical Data

    Freshbox 100 WiFi www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing.

  • Page 7: Design And Operating Principle

    Freshbox 100 WiFi www.blaubergventilatoren.de Freshbox 100 ERV Freshbox E-100 ERV Freshbox E1-100 ERV Freshbox E2-100 ERV Parameter WiFi WiFi WiFi WiFi Speed Maximum air capacity [m Supply voltage [V/50 (60) Hz] 1~ 230 Maximum fan power [W] Sound pressure level at 3 m distance [dBA]...

  • Page 8: Installation And Set-Up

    The reheater is switched on and off by means of a button on a sensor control panel, a remote control or via mobile application. The heat exchanger freeze protection in Freshbox 100 WiFi and Freshbox E1-100 WiFi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings.
  • Page 9 Freshbox 100 WiFi www.blaubergventilatoren.de Hole spacing template ADDITIONAL HOLE! DRILL UPON CUSTOMER’S REQUEST ONLY! ADDITIONAL HOLE! DRILL UPON CUSTOMER’S REQUEST ONLY! Ø 120 mm hole for Ø 100 mm air duct Ø 120 mm hole for Ø 100 mm air duct...
  • Page 10 Freshbox 100 WiFi www.blaubergventilatoren.de 2.1. Remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an additional extract spigot prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct.
  • Page 11 Freshbox 100 WiFi www.blaubergventilatoren.de 5. To install an additional extract spigot, remove the plug on the rear part of the unit. Undo the screws, remove the plug and fix a spigot on its place using screws. 6. Caution! Install the condensate preheater before fixing the unit to the wall (see the Installation manual of the heater).

  • Page 12: Connection To Power Mains

    Freshbox 100 WiFi www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.

  • Page 13: Control

    Freshbox 100 WiFi www.blaubergventilatoren.de CONTROL The unit is controlled by means of a control panel on the unit casing, a remote control or via mobile application. Control panel 1. The unit is switched on/off using 2. Ventilation modes can be controlled by the buttons.
  • Page 14 Freshbox 100 WiFi www.blaubergventilatoren.de 7. In emergency situations, the unit turns off and the indicator flashes an alarm code. Alarm code Alarm description — — — — — Outside temperature sensor missing — — — — • Short circuit of the outside air temperature sensor —...
  • Page 15 UNIT CONTROL VIA THE APPLICATION ON THE MOBILE DEVICE Unit control is carried out using the Blauberg Home app on the mobile device. The application is available for download at App Store, Play Market or via the QR code.
  • Page 16 Freshbox 100 WiFi www.blaubergventilatoren.de Filter Filter timer setting is available. When the set time (70-365 days) has elapsed, the filter change indicator appears and filter replacement information is displayed in the Alarms menu. This timer can be turned off. If the unit is equipped with filter contamination pressure switches, after the timer is turned off filter contamination control will be carried out only by the pressure switches.

  • Page 17: Technical Maintenance

    Freshbox 100 WiFi www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning and replacement of filters and dry cleaning of fans.

  • Page 18: Troubleshooting

    Freshbox 100 WiFi www.blaubergventilatoren.de 3. Fan maintenance (once a year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fan with a cloth or a soft brush.

  • Page 19: Manufacturer's Warranty

    Freshbox 100 WiFi www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.

  • Page 20: Certificate Of Acceptance

    Freshbox 100 WiFi www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Heat recovery air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 21 Freshbox 100 WiFi www.blaubergventilatoren.de...
  • Page 22 www.blaubergventilatoren.de B73-9EN-07...

This manual is also suitable for:

Freshbox e-100 wifiFreshbox e1-100 wifiFreshbox e2-100 wifi
