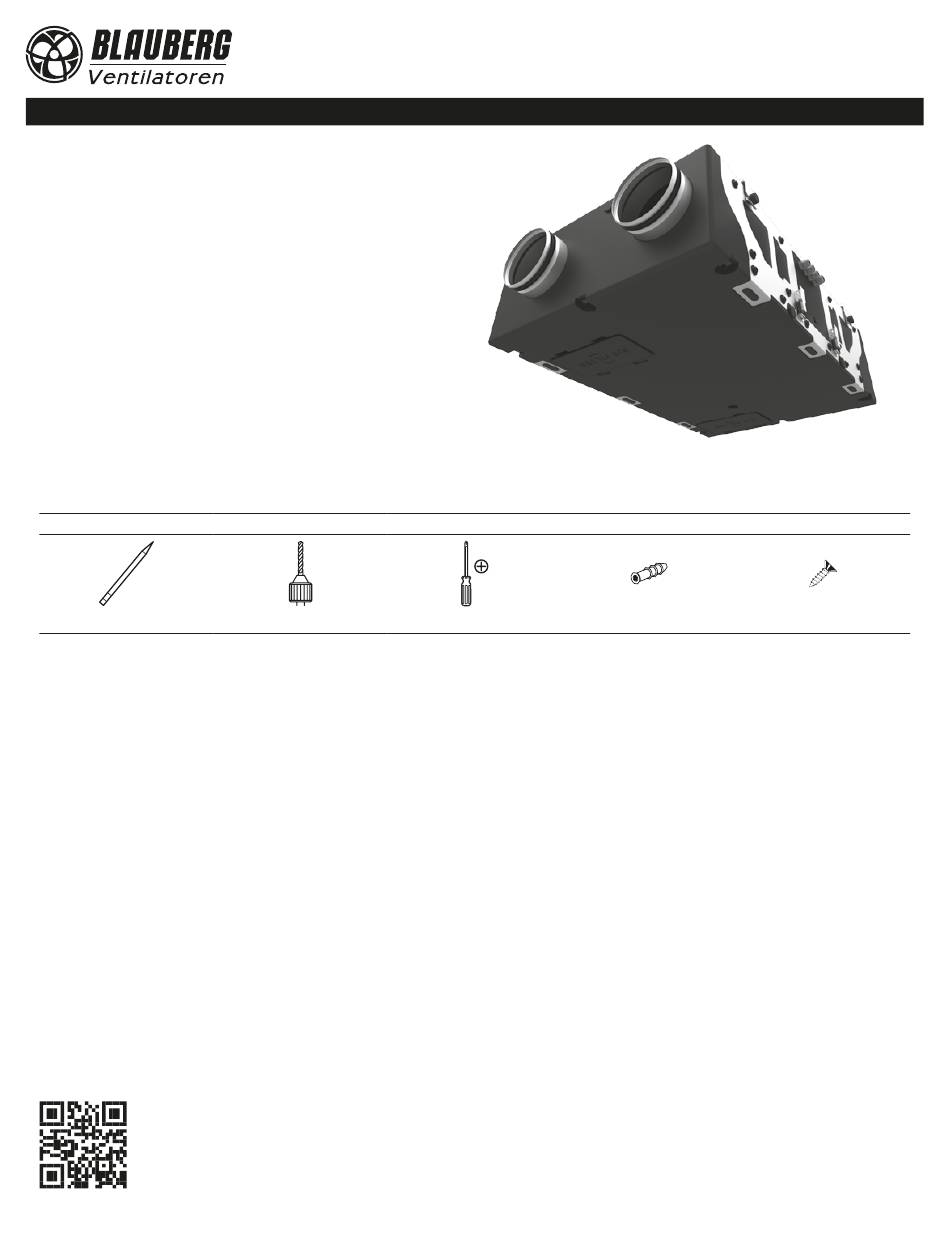

INSTALLATION GUIDE
Air handling unit
Komfort EC D5B180 S14
Komfort EC D5B180-E S14

INSTALLATION

Pencil
To attain the best performance of the unit and to minimise turbulence-induced air pressure losses connect the straight air duct section to the
spigots on both sides of the unit while mounting.
Minimum straight air duct length:
equal to 1 air duct diameter on intake side
equal to 3 air duct diameters on outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects.
To prevent uncontrollable access to the fans the spigots may be covered with a protecting grille or other protecting device with mesh width
not more than 1/2 inch.
While installing the unit ensure convenient access for subsequent maintenance and repair.
The unit must be mounted on a plane wall (ceiling).
Mounting of the unit to an uneven surface can lead to the unit casing distortion and operation disturbance.
Fix the mounting brackets on the wall or the ceiling depending on the type of installation.
174 N. 36th Street, Lafayette, IN 47905
www.blauberg.us
e-mail: info@blauberg.us
Tools required
Drill
Screwdriver
Dowel 6 pcs
1
Screws 6 pcs
MUI_82_Komfot_(EC)_D5B180_EN-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Komfort EC D5B180 S14 and is the answer not in the manual?

Questions and answers

Summary of Contents for BLAUBERG Komfort EC D5B180 S14

  • Page 1 INSTALLATION GUIDE Air handling unit Komfort EC D5B180 S14 Komfort EC D5B180-E S14 INSTALLATION Tools required Pencil Drill Screwdriver Dowel 6 pcs Screws 6 pcs To attain the best performance of the unit and to minimise turbulence-induced air pressure losses connect the straight air duct section to the spigots on both sides of the unit while mounting.
  • Page 2 Unit mounting example SUPPLY AIR EXTRACT AIR EXTRACT AIR Drainage hole INTAKE AIR SUPPLY AIR Drainage hole EXHAUST AIR Diagram 1. Wall vertical installation Diagram 2. Wall horizontal installation 174 N. 36th Street, Lafayette, IN 47905 MUI_82_Komfot_(EC)_D5B180_EN-01 www.blauberg.us e-mail: info@blauberg.us...
  • Page 3 Do not mount the drain pipes in the holes not indicated on the installation diagram. 174 N. 36th Street, Lafayette, IN 47905 MUI_82_Komfot_(EC)_D5B180_EN-01 www.blauberg.us e-mail: info@blauberg.us...
  • Page 4 Then connect the drain pipe to the sewage system using the SG-32 U-trap kit (available upon separate order). The pipes are required to have a minimum slope of 3°. Each drain pipe is connected to a different U-trap. min 3° Drain pipe U-trap Drain hose Sewage system 174 N. 36th Street, Lafayette, IN 47905 MUI_82_Komfot_(EC)_D5B180_EN-01 www.blauberg.us e-mail: info@blauberg.us...
  • Page 5 Exhaust air damper actuator РК* 2 x 20 AWG Contact from fire alarm panel * Is not included in the delivery set. ** Maximum connecting cable length is 65 ft! 174 N. 36th Street, Lafayette, IN 47905 MUI_82_Komfot_(EC)_D5B180_EN-01 www.blauberg.us e-mail: info@blauberg.us...
