Summary of Contents for BLAUBERG Freshbox 200 ERV WiFi

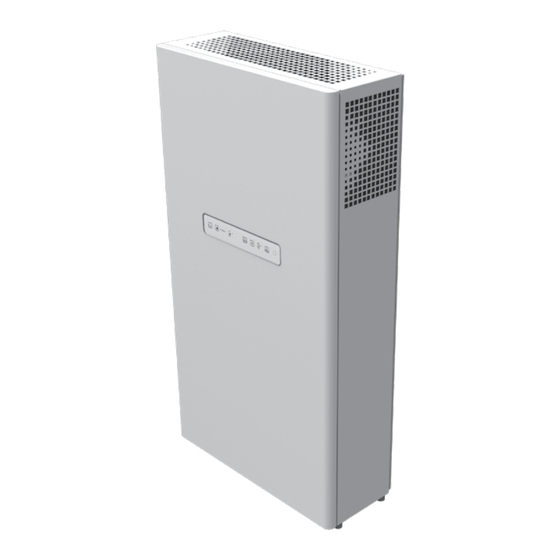

- Page 1 Air hAndling unit Freshbox 200 ERV WiFi Freshbox E-200 ERV WiFi Freshbox E1-200 ERV WiFi Freshbox E2-200 ERV WiFi USER’S MANUAL...
-
Page 2: Table Of Contents
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 9 Connection to power mains ..............................12 Control ......................................... - Page 3 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de potentially result in carbon monoxide poisoning. After installation of the unit the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units.
-
Page 4: Purpose
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 5: Technical Data
IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. PARAMETER FRESHBOx 200 ERV WIFI FRESHBOx E-200 ERV WIFI FRESHBOx E1-200 ERV WIFI FRESHBOx E2-200 ERV WIFI... - Page 6 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Dimensions [mm] Model Ø D Freshbox (E)/(E1)/(E2)-200 ERV WiFi 1020...
-
Page 7: Design And Operating Principle
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE H13 filter (option) F7 filter Supply grille sensor (purchased separately) Supply air reheater Additional exhaust air duct G4 extract filter Extract grille Control unit Counter-flow Control panel heat exchanger Lock Extract fan Supply air preheater Supply fan Exhaust spigot... - Page 8 The reheater is switched on and off by means of a button on a sensor control panel, a remote control or via a mobile application. The heat exchanger overheating protection in the Freshbox 200 ERV WiFi and Freshbox E1-200 ERV WiFi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings.
-
Page 9: Mounting And Set-Up
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). THE UNIT MUST BE MOUNTED ON A PLANE SURFACE. - Page 10 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an extract spigot, prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct.
- Page 11 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remove the F7 and H13 filters for accessing the mounting holes. If an extract spigot is installed, remove the top protective panel and install the magnetic plug on the exhaust grille. When removing the panel, disconnect the grounding cable. Lift the unit, insert the spigots into the corresponding air ducts installed in the wall.
-
Page 12: Connection To Power Mains
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 13: Control
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONTROL The unit is controlled by means of a control panel on the unit casing, a remote control or via a mobile application. Control panel 1. The unit is switched on/off using 2. Ventilation modes can be controlled by the buttons. - Page 14 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de filter replacement indicator At the end of the filters’ service life, the on the control panel will light up notifying that filters need to be changed. 7. In emergency situations, the unit turns off and the indicator flashes an alarm code.
- Page 15 Unit control is carried out using the app on the mobile device. The application is available for download at App Store, Play Market or via the QR code. Blauberg Home – App Store Blauberg Home – Play Market WI-FI TECHNICAL DATA...
- Page 16 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Filter Filter timer setting is available. When the set time (70-365 days) has elapsed, the filter change indicator appears and filter replacement information is displayed in the Alarms menu. This timer can be turned off. If the unit is equipped with filter contamination pressure switches, after the timer is turned off filter contamination control will be carried out only by the pressure switches.
-
Page 17: Technical Maintenance
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning or replacement of filters (if necessary) and dry cleaning of fans. Maintenance includes general cleaning of the unit and the following operations: 1. -
Page 18: Troubleshooting
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING The fan(s) do(es) not get Make sure that the unit is properly connected to the power No power supply. started. mains and make any corrections, if necessary. Extract filter clogging. Clean or replace the extract filter. -
Page 19: Manufacturer's Warranty
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 20 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de...
- Page 21 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de...
- Page 22 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de...
-
Page 23: Certificate Of Acceptance
Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 www.blaubergventilatoren.de B73-7EN-07...
