INSTALLATION GUIDE

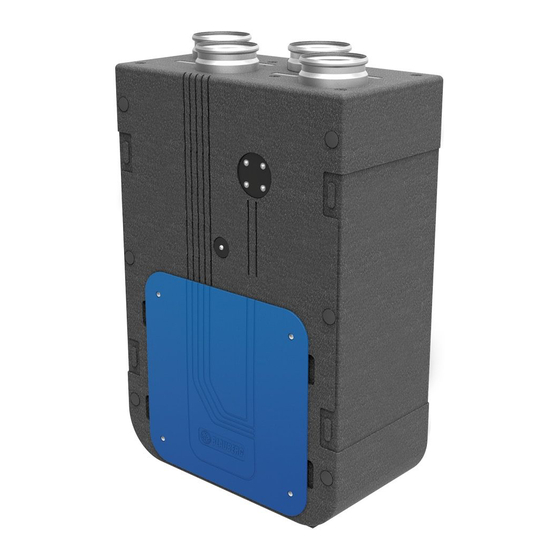

Air handling unit
Komfort EC S5B270 S14
Komfort EC S5B270-E S14
INSTALLATION
Pencil
To get the best performance of the unit and to minimize turbulence-induced air pressure losses, connect the straight air duct section to the
spigots while installing.
Minimum straight air duct length:
•
equal to 1 air duct diameter on the intake side
•
equal to 3 air duct diameters on outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects.
To prevent uncontrollable access to the fans, the spigots may be covered with a protecting grille or other protecting device with mesh width
not more than
/
inch.
1
2
While installing the unit, ensure convenient access for subsequent maintenance and repair.
The unit must be mounted on a flat floor.
Installing the unit to an uneven surface could lead to the unit's casing distortion and operation disturbance.
Do not expose the unit to direct sunlight.
174 N. 36th Street, Lafayette, IN 47905
www.blauberg.us
e-mail: info@blauberg.us
Tools required
Drill
Screwdriver
Dowel
1
Screws
MUI_83_Komfort EC S5B270 S14_EN-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLAUBERG Komfort EC S5B270 S14
Summary of Contents for BLAUBERG Komfort EC S5B270 S14

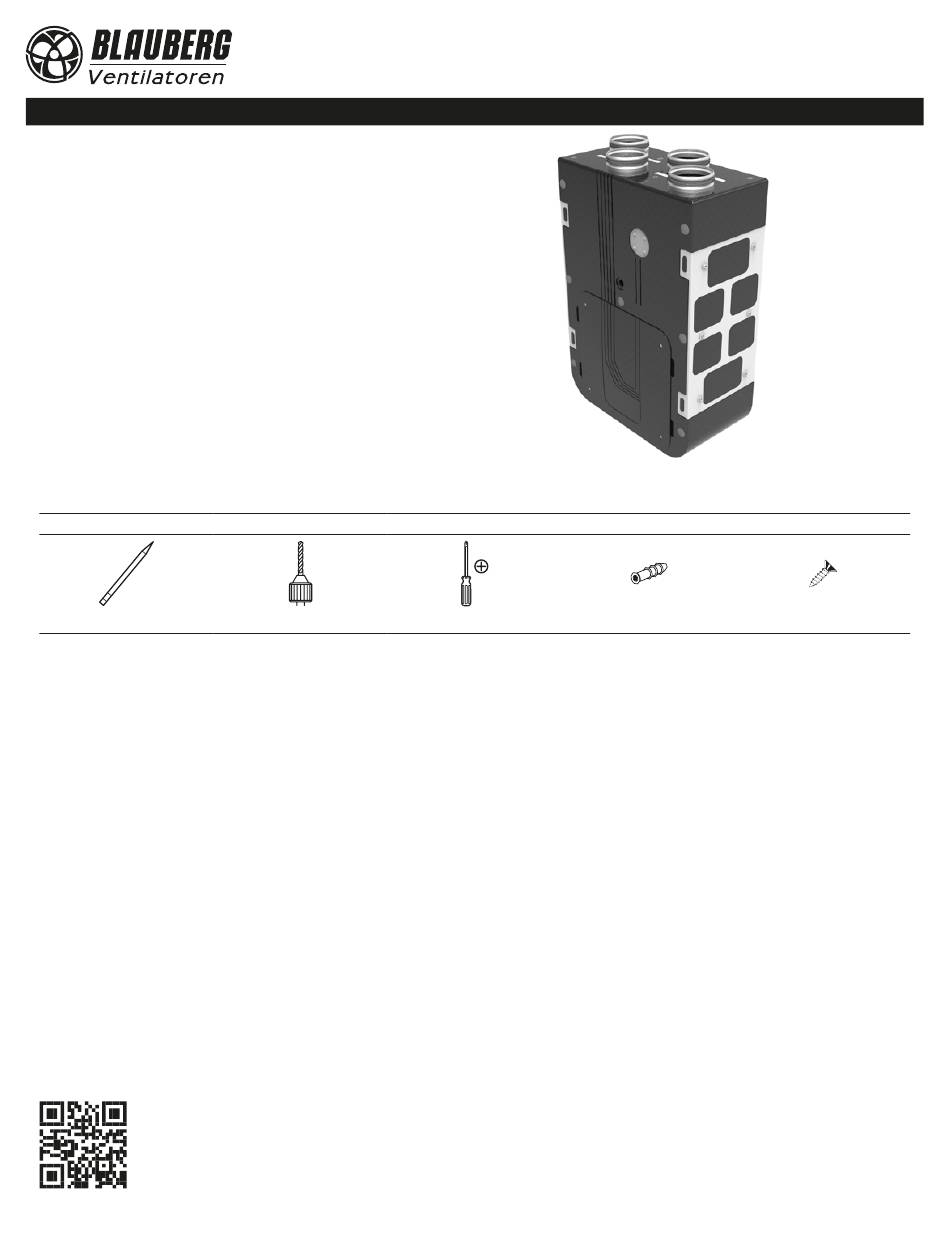

- Page 1 INSTALLATION GUIDE Air handling unit Komfort EC S5B270 S14 Komfort EC S5B270-E S14 INSTALLATION Tools required Pencil Drill Screwdriver Dowel Screws To get the best performance of the unit and to minimize turbulence-induced air pressure losses, connect the straight air duct section to the spigots while installing.
- Page 2 Fasteners for unit installation should be selected by a qualified technician. Secure the wall bracket at required height. Hang the unit on the wall bracket and secure it with a screw. 174 N. 36th Street, Lafayette, IN 47905 MUI_83_Komfort EC S5B270 S14_EN-01 www.blauberg.us e-mail: info@blauberg.us...
- Page 3 CONDENSATE DRAINAGE Condensate drainage is required for the Komfort EC S5B270 S14 unit series. The Komfort EC S5B270-E S14 units are equipped with a heat exchanger with an enthalpy membrane at the core. No condensate is formed in heat exchangers of this type, therefore, no condensate drainage is required.
- Page 4 РК* Contact from fire alarm panel 2 x 20 AWG * Is not included in the delivery set. ** Maximum connecting cable length is 20 m! 174 N. 36th Street, Lafayette, IN 47905 MUI_83_Komfort EC S5B270 S14_EN-01 www.blauberg.us e-mail: info@blauberg.us...
